418 (215-418-100) - Cub Cadet Rear-Tine Tiller (1985) Tiller Part 1 Parts Diagram

Rear-Tine Tiller

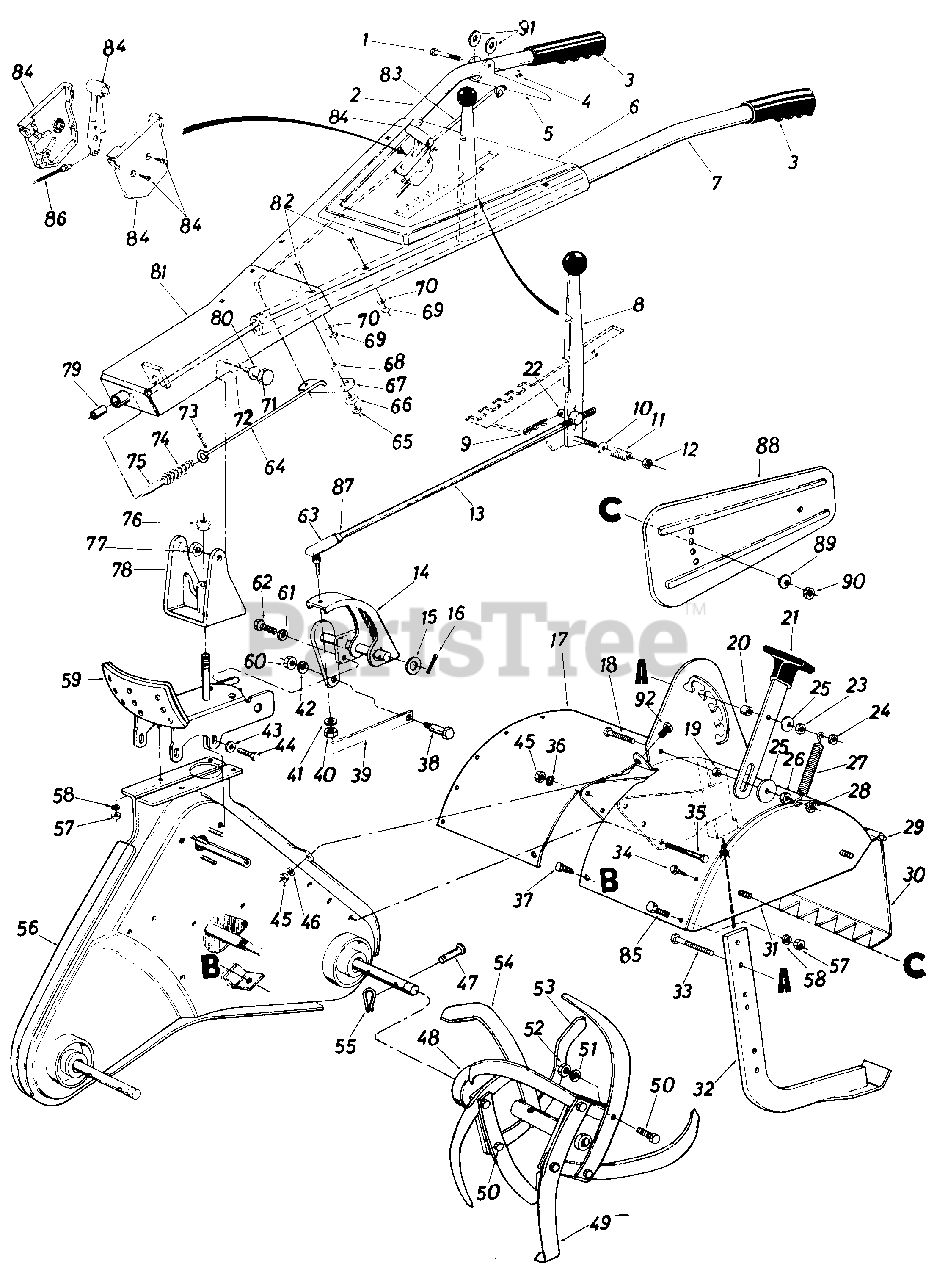

Tiller Part 1 Parts Diagram

  • Title

1

Cub Cadet 710-0136

SCREW-HEX 1/4-20 X 1.75

$4.49

$

In Stock, Qty 13

0

2

Cub Cadet 749-0268

HANDLE-RH

$

$

Not available

3

Cub Cadet 720-0180

GRIP-BLACK
(Superseded to 720-04083)

$15.99

$

In Stock, only 2 left!

0

4

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 14844

HANDLE ASSY-CLUTCH

$

$

Currently unavailable

6

Cub Cadet 04831

PANEL-HANDLE

$

$

Currently unavailable

7

Cub Cadet 749-0269

HANDLE-LH

$

$

Not available

8

Cub Cadet 04810

HANDLE ASSY-CLUTCH

$

$

Currently unavailable

9

Cub Cadet 714-0149

PIN-COTTER
(Superseded to 914-0149B)

$

$

Not available

10

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 732-0193

SPRING-COMPRESSION

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 712-0214

NUT-HEX INS L 3/8 X 24

$6.99

$

In Stock, Qty 18

0

13

Cub Cadet 747-0278

ROD-CONTROL

$

$

Currently unavailable

14

Cub Cadet 14734

PIVOT HORN

$

$

Currently unavailable

15

Cub Cadet 736-0290

WASHER-FL

$7.49

$

In Stock, only 4 left!

0

16

Cub Cadet 714-0474

PIN-COTTER-1/8 DIA X .75

$4.99

$

In Stock, Qty 11

0

17

Cub Cadet 15381

SHIELD ASSY-TINE

$

$

Currently unavailable

18

Cub Cadet 710-0344

SCREW-HEX 3/8-16 X 1.50

$6.49

$

In Stock, only 3 left!

0

19

Cub Cadet 750-0527

SPACER

$

$

Not available

20

Cub Cadet 750-0528

SPACER
(Superseded to 950-0528)

$

$

Not available

21

Cub Cadet 14843

HANDLE ASSY-DEPTH BAR

$

$

Currently unavailable

22

Cub Cadet 711-0198

BUSHING-PIVOT
(Superseded to 911-0198)

$14.99

$

In Stock, only 2 left!

0

23

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 712-0130

NUT-HEX INS L-3/8-16

$4.49

$

In Stock, only 1 left!

0

25

Cub Cadet 736-0227

WASHER-FL-.39 X 1.5

$6.99

$

In Stock, only 2 left!

0

26

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 732-0416

SPRING

$

$

Not available

28

Cub Cadet 712-0130

NUT-HEX INS L-3/8-16

$4.49

$

In Stock, only 1 left!

0

29

Cub Cadet 747-0252

ROD-HAND

$

$

Currently unavailable

30

Cub Cadet 04804

FLAP ASSY-TINE SH HG

$

$

Currently unavailable

31

Cub Cadet 15389

COVER-SIDE-LH

$

$

Currently unavailable

Cub Cadet 15388

COVER-SIDE-RH

Note: (Not Shown)

$

$

Currently unavailable

32

Cub Cadet 14731

BAR-DRAG

$

$

Currently unavailable

33

Cub Cadet 710-0347

SCREW-HEX 3/8-16 X 1.75

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0604

SCREW-HEX WASH HD 5/16-18
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 8

0

Cub Cadet 712-0292

NUT-SPEED

$10.99

$

In Stock, only 3 left!

0

35

Cub Cadet 710-0830

SCREW-HEX 3/8-24 X 3.0 LG

$

$

Not available

36

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 11

0

37

Cub Cadet 710-0623

SCREW-HEX WASH SF TAPP 3/8 X 3/4

$4.49

$

In Stock, Qty 12

0

38

Cub Cadet 738-0258

BOLT-SHLD
(Superseded to 938-0258)

$

$

Not available

39

Cub Cadet 04841

STRIP-CONTROL

$

$

Currently unavailable

40

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, only 3 left!

0

41

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 11

0

42

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 11

0

43

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.99

$

In Stock, Qty 6

0

44

Cub Cadet 710-0623

SCREW-HEX WASH SF TAPP 3/8 X 3/4

$4.49

$

In Stock, Qty 12

0

45

Cub Cadet 712-0241

NUT-HEX 3/8-24

$4.99

$

In Stock, only 2 left!

0

46

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 11

0

47

Cub Cadet 711-0679

PIN-CLEVIS
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

48

Cub Cadet 15295

ADAPTER ASSY-TINE

$

$

Currently unavailable

49

Cub Cadet 15387

TINE ASSY-LH-COMP

$

$

Currently unavailable

Cub Cadet 15386

TINE ASSY-RH-COMP

Note: (Not Shown)

$

$

Not available

50

Cub Cadet 710-0192

SCREW-TRUSS MACH SCR 10-24 X .38

$3.99

$

In Stock, Qty 12

0

51

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 11

0

52

Cub Cadet 712-0241

NUT-HEX 3/8-24

$4.99

$

In Stock, only 2 left!

0

53

Cub Cadet 742-0244

TINE-RH
(Superseded to 742-0244-0637)

Variations

742-0244-0637

Cub Cadet 742-0244-0637

TINE-RH BLADE - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 742-0243

TINE-LH

$

$

Not available

55

Cub Cadet 714-0149

PIN-COTTER
(Superseded to 914-0149B)

$

$

Not available

56

Cub Cadet 15385

CHAIN CASE ASSY-COMP

$

$

Currently unavailable

57

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 14744

HANDLE POSITIONER

$

$

Currently unavailable

60

Cub Cadet 712-0130

NUT-HEX INS L-3/8-16

$4.49

$

In Stock, only 1 left!

0

61

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 710-0601

SCREW-HEX WASH SF TAPP
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

63

Cub Cadet 723-0156

JOINT ASSY-BALL
(Superseded to 923-0156)

$17.99

$

In Stock, Qty 17

0

64

Cub Cadet 747-0254

ROD

$

$

Currently unavailable

65

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

66

Cub Cadet 748-0516

BEARING-FLANGE .360 ID

$

$

Currently unavailable

67

Cub Cadet 04819

LINK

$

$

Currently unavailable

68

Cub Cadet 736-0289

WASHER-BUSHING
(Superseded to 936-0289)

$7.49

$

In Stock, only 2 left!

0

69

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

Cub Cadet 738-0143

SCREW-SHLD .498 DIA X .340

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 714-0474

PIN-COTTER-1/8 DIA X .75

$4.99

$

In Stock, Qty 11

0

74

Cub Cadet 732-0132

SPRING

$

$

Not available

75

Cub Cadet 711-0663

PIN-LOCKING

$

$

Currently unavailable

76

Cub Cadet 712-0221

NUT-HEX INS L-5/8-18

$

$

Not available

77

Cub Cadet 712-0181

NUT-HEX TOP LOCK-3/8-16

$4.49

$

In Stock, only 3 left!

0

78

Cub Cadet 04812

BRACKET-PIVOT

$

$

Currently unavailable

79

Cub Cadet 748-0150

BEARING-SLEEVE .505 ID

$

$

Not available

80

Cub Cadet 736-0192

WASHER-FL-.531 ID X .93 OD X .090

$4.99

$

In Stock, Qty 16

0

81

Cub Cadet 04792

BRACKET-MTG

$

$

Currently unavailable

82

Cub Cadet 710-0458

BOLT-CARRIAGE 5/16-18 X 1.75

$4.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 747-0255

ROD

$

$

Currently unavailable

84

Cub Cadet 831-0692

CONTROL-THROTTLE
(Superseded to 831-0796A)

$23.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 746-0502

WIRE-CONTROL
(Superseded to 946-0502)

$26.99

$

In Stock, only 1 left!

0

87

Cub Cadet 712-0711

NUT-HEX JAM 3/8X24

$4.49

$

In Stock, Qty 11

0

88

Cub Cadet 15390

SHIELD-SIDE

Variations

15390-0480

Cub Cadet 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

15390-0498

Cub Cadet 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

15390-0499

Cub Cadet 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

15390-0629

Cub Cadet 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

15390-0637

Cub Cadet 15390-0637

SHIELD-SIDE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

15390-0638

Cub Cadet 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

15390-0648

Cub Cadet 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

15390-0662

Cub Cadet 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

15390-0665

Cub Cadet 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

15390-0674

Cub Cadet 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

89

Cub Cadet 736-0170

WASHER-SPEC L 5/16 X .88 OD

$5.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

91

Cub Cadet 736-0173

WASHER-FL-.28 ID X .74 OD X .063

$4.49

$

In Stock, Qty 20+

0

92

Cub Cadet 710-0191

SCREW 3/8-24X1.25 GR5

$4.99

$

In Stock, Qty 7

0
