418 (215-418-100) - Cub Cadet Rear-Tine Tiller (1985) Tiller Part 2 Parts Diagram

Rear-Tine Tiller

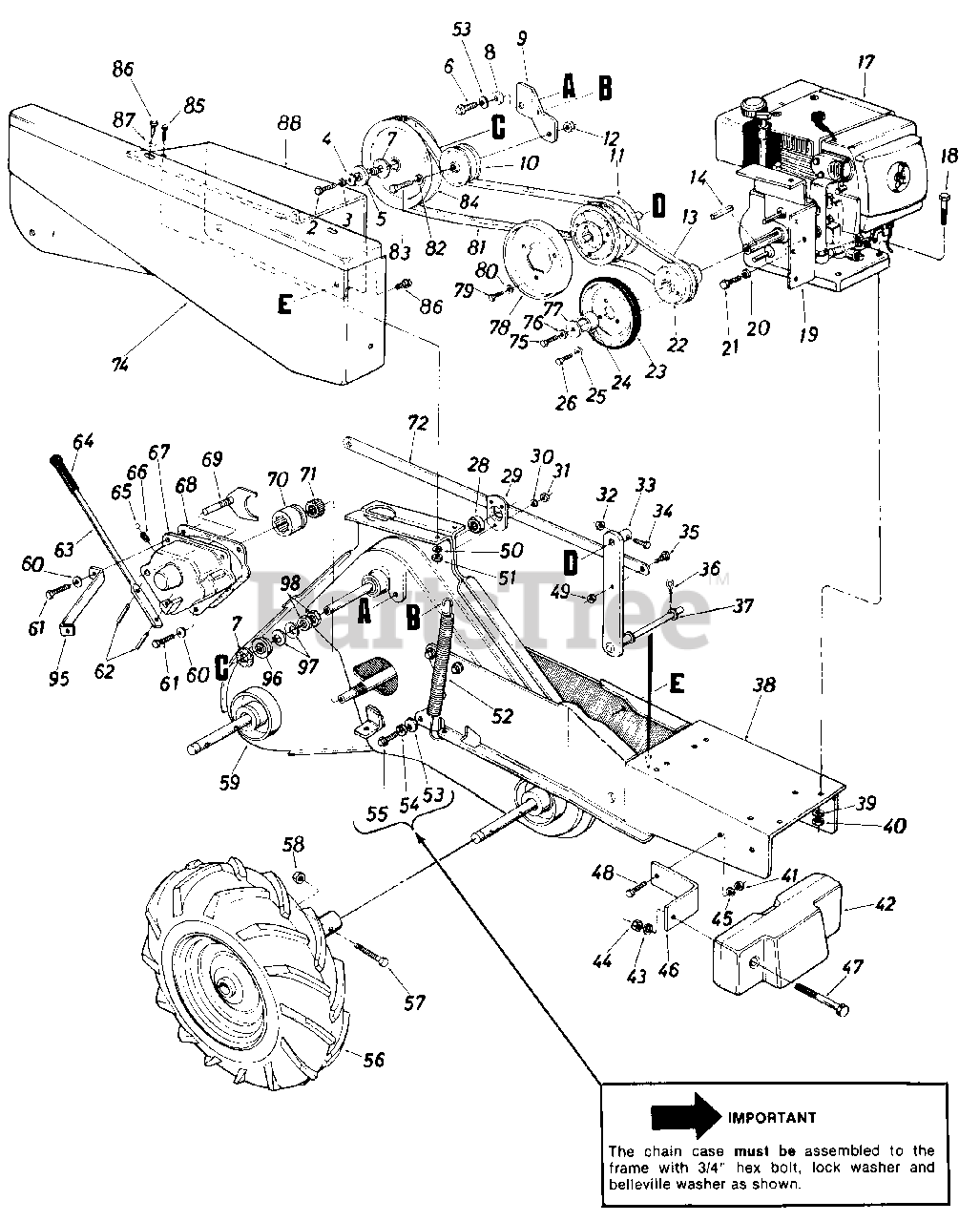

Tiller Part 2 Parts Diagram

  • Title

2

Cub Cadet 710-0876

SCREW-HEX CL 5/16-24X1.5

$

$

Not available

3

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 15727

HUB & DISC ASSY

$

$

Not available

6

Cub Cadet 710-0191

SCREW 3/8-24 X 1.25 GR5

$4.49

$

In Stock, Qty 8

0

7

Cub Cadet 761-0189

PAD-FRICTION

$

$

Not available

8

Cub Cadet 738-0372

SPACER-SHLD
(Superseded to 738-0372B)

$8.99

$

In Stock, Qty 20+

0

9

Cub Cadet 14740

BRACKET-IDLER

$

$

Currently unavailable

10

Cub Cadet 756-0225

PULLEY-IDLER-FLAT W/FLANGES

$

$

Not available

11

Cub Cadet 717-0343

PULLEY-VAR SP

$

$

Currently unavailable

12

Cub Cadet 712-0130

NUT-HEX INS L-3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 754-0220

BELT-V 5/8 X 27
(Superseded to 954-0220)

$40.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 714-0114

KEY-SQ 1/4 X 2.00
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

17

Note: Engine

$

$

Not available

18

Cub Cadet 710-0380

SCREW-HEX 5/16-18 X 1.75
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 784-0044

BRACKET ASSY-BELT COVER

$

$

Currently unavailable

20

Cub Cadet 736-0114

WASHER-INTERN L-1/2

$

$

Not available

21

Cub Cadet 710-0121

SCREW-HEX 1/2/20 X .75 SPEC

$

$

Not available

22

Cub Cadet 756-0296

PULLEY

$

$

Not available

23

Cub Cadet 05080

WHEEL ASSY-FRICTION
(Superseded to 05080AP)

$33.99

$

In Stock, Qty 17

0

24

Cub Cadet 750-0598

SPACER-ENGINE PULLEY

$

$

Currently unavailable

25

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0621

SCREW-HEX 5/16-18 X .52
(Superseded to 710-3039)

$

$

Not available

28

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

29

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

31

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 04837

BRACKET ASSY

$

$

Currently unavailable

34

Cub Cadet 710-0106

SCREW-HEX 1/4-20 X 1.25

$3.99

$

In Stock, only 1 left!

0

35

Cub Cadet 738-0380

SCREW-SHLD

$7.49

$

In Stock, Qty 18

0

36

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 1 left!

0

37

Cub Cadet 736-0237

WASHER-FL

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 784-0043

FRAME ASSY

$

$

Currently unavailable

39

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0214

NUT-HEX INS L 3/8 X 24

$5.99

$

In Stock, Qty 20+

0

42

Cub Cadet 723-0340

COUNTERWEIGHT

$

$

Not available

43

Cub Cadet 736-0326

WASHER-FL

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0206

NUT-HEX 1/2-13

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

46

Cub Cadet 04860

BRACKET-COUNTERWEIGHT

$

$

Currently unavailable

47

Cub Cadet 710-0496

SCREW-HEX 1/2-13 X 4.50
(Superseded to 710-1807)

$10.99

$

In Stock, only 1 left!

0

48

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

49

Cub Cadet 712-0130

NUT-HEX INS L-3/8-16

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

51

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 732-0384

EXTENSION SPRING
(Superseded to 932-0384)

$13.99

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0623

SCREW-HEX WASH SF TAPP 3/8 X 3/4

$3.99

$

In Stock, Qty 8

0

56

Cub Cadet 734-0806

WHEEL ASSY W/TIRE-RH

$

$

Currently unavailable

Cub Cadet 734-0807

WHEEL ASSY W/TIRE-LH

Note: (Not Shown)

$

$

Currently unavailable

57

Cub Cadet 710-0191

SCREW 3/8-24X1.25 GR5

$4.49

$

In Stock, Qty 8

0

58

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

59

Cub Cadet 15385

CHAIN CASE ASSY-COMP

$

$

Currently unavailable

60

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 710-0601

SCREW-HEX WASH SF TAPP
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

62

Cub Cadet 715-0139

PIN-SPRING SPIR 3/16 X 1.00
(Superseded to 915-0247)

$

$

Not available

63

Cub Cadet 747-0265

ROD

$

$

Currently unavailable

64

Cub Cadet 720-0143

GRIP

$

$

Not available

65

Cub Cadet 741-0862

BALL-DETENT

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 732-0863

SPRING-DETENT FOOTE #333-19
(Superseded to 932-0863)

$3.99

$

In Stock, Qty 10

0

67

Cub Cadet 719-0238

HOUSING-RH

$

$

Not available

Cub Cadet 719-0237

HOUSING-LH

Note: (Not Shown)

$

$

Not available

68

Cub Cadet 712-0162

NUT-HEX CENTER L-#10-32

$

$

Currently unavailable

69

Cub Cadet 04858

YOKE-SHIFT-RH

Note: R.H.

$

$

Not available

Cub Cadet 04859

YOKE-SHIFT-LH

Note: L.H. (NOT SHOWN)

$

$

Not available

70

Cub Cadet 717-0383

DOG

$

$

Not available

71

Cub Cadet 717-0382

DOG-DRIVER

$

$

Currently unavailable

72

Cub Cadet 04841

STRIP-CONTROL

$

$

Currently unavailable

74

Cub Cadet 15287

COVER ASSY-BELT

Note: Color Code 499

$

$

Currently unavailable

75

Cub Cadet 710-0483

SCREW-HEX 7/16-20 X 2.25

$

$

Not available

76

Cub Cadet 736-0171

WASHER-LOCK-7/16

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 736-0319

WASHER-FL - .440 X1.375 X .148
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 04836

DISC-FRICTION

$

$

Currently unavailable

79

Cub Cadet 710-0230

SCREW-HEX 1/4-28 X .50

$

$

Not available

80

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

81

Cub Cadet 754-0268

BELT-V 5/8 X 51

$

$

Not available

82

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

83

Cub Cadet 710-0344

SCREW-HEX 3/8-16 X 1.50

$5.49

$

In Stock, only 1 left!

0

84

Cub Cadet 756-0410

PULLEY

$

$

Currently unavailable

85

Cub Cadet 710-0195

SCREW-HEX 1/4-28 X .62
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

86

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

87

Cub Cadet 736-0173

WASHER-FL-.28 ID X .74 OD X .063

$3.99

$

In Stock, Qty 10

0

88

Cub Cadet 784-0046

SHROUD-BELT COVER

$

$

Not available

95

Cub Cadet 15291

BRACE-BELT COVER

$

$

Currently unavailable

96

Cub Cadet 748-0296

DISC-FLOATING

$

$

Not available

97

Cub Cadet 736-0352

WASHER-SPRING BELL

$

$

Not available

98

Cub Cadet 712-0331

NUT-HEX JAM-SPECIAL

$

$

Not available
