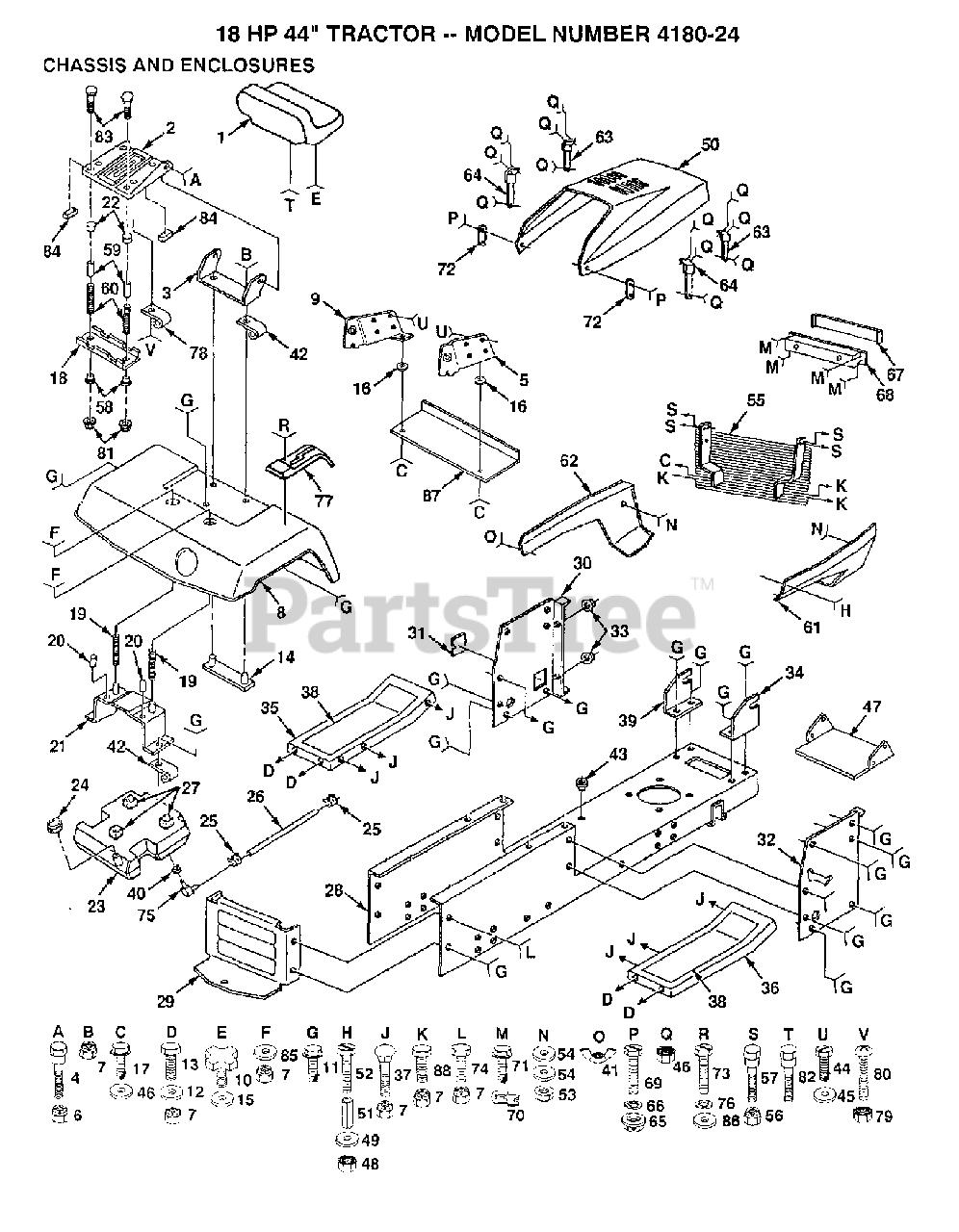

418024 - Poulan Lawn Tractor (2006-01) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Poulan 532127429

(Superseded to 532140121)

$

$

Not available

2

Poulan 539131451

SEAT, CUSHION

$

$

Not available

3

Poulan 532126656

BRKT,SEAT PIVOT**

$

$

Not available

4

Poulan 532105529

BOLT, SHOULDER LT
(Superseded to 532139888)

$6.49

$

In Stock, Qty 10

0

5

Poulan 532110854

BRACKET NLA

$

$

Not available

6

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

8

Poulan TBD

Note: 123784X424

$

$

Not available

9

Poulan 532110855

SUPPORT LH YTH

$

$

Not available

10

Poulan 532120068

(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

11

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

12

Poulan 819131312

WASHER
(Superseded to 596133201)

$3.99

$

In Stock, only 1 left!

0

13

Poulan 874760612

BOLT

$4.99

$

In Stock, Qty 20+

0

14

Poulan 532105511

STRAP-FENDER YT
(Superseded to 532140675)

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 819171912

WASHER

$7.49

$

In Stock, only 2 left!

0

16

Poulan 819111212

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

17

Poulan 817190412

(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

18

Poulan 532121246

BRKT SWITCH
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

19

Poulan 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

20

Poulan 532105531

NUT-PUSH YT

$2.99

$

Usually ships in 3-10 days

0

21

Poulan 532105509

(Superseded to 532137113)

$14.99

$

Usually ships in 3-10 days

0

22

Poulan 532124238

CAP SPRING

$

$

Not available

23

Poulan 532106020

FUEL TANK LT

$

$

Not available

24

Poulan 532123549

(Superseded to 532158990)

$26.99

$

In Stock, Qty 8

0

25

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

26

Poulan 532008543

FUEL LINE

$10.99

$

Usually ships in 3-10 days

0

27

Poulan 532106082

PAD-SPACER LT

$

$

Not available

28

Poulan 532127166

CHASSIS

$

$

Not available

29

Poulan 532123785

DRAW BAR
(Superseded to 532140356)

$

$

Not available

30

Poulan 532124118

PANEL DASH LH NLA
(Superseded to 124118X)

$

$

Not available

31

Poulan 532121794

COVER ACCESS
(Superseded to 121794X)

$

$

Not available

32

Poulan 532110828

PANEL LT NLA

$

$

Not available

33

Poulan 532009151

SNAP BUSHING T

$

$

Not available

34

Poulan 532110853

SUPPORT RH YTH

$

$

Not available

35

Poulan 532105465

FOOTREST LH**
(Superseded to 532145244)

$

$

Not available

36

Poulan 532105464

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

37

Poulan 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 532133671

FOOTREST PAD

$10.99

$

Usually ships in 3-10 days

0

39

Poulan 532110852

SUPPORT LH YTH

$

$

Not available

40

Poulan 532003645

BUSHING OUTLET T

$3.99

$

In Stock, Qty 20+

0

41

Poulan 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

42

Poulan 532002751

CLIP T
(Superseded to 2751R)

$

$

Not available

43

Poulan 532110436

(Superseded to 532009151)

$

$

Not available

44

Poulan 817490512

Screw, Lt
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 819131210

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

46

Poulan 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 13

0

47

Poulan TBD

$

$

Not available

48

Poulan 532054509

NUT **
(Superseded to 873731000)

$2.99

$

Usually ships in 3-10 days

0

49

Poulan 819070818

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, Qty 8

0

50

Poulan TBD

Note: 132635X424

$

$

Not available

51

Poulan 7206J

SPACER LT
(Superseded to 532007206)

Note: 7206J

$7.49

$

In Stock, Qty 18

0

52

Poulan 532087175

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 19

0

53

Poulan 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

54

Poulan 819091216

WASHER PM
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

55

Poulan 532122100

(Superseded to 122100X)

$

$

Not available

56

Poulan 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

57

Poulan 532123481

Bolt
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

59

Poulan 532121249

SPACER SPLIT

$6.49

$

In Stock, Qty 5

0

60

Poulan 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

61

Poulan TBD

Note: 132639X424

$

$

Not available

62

Poulan TBD

Note: 132638X424

$

$

Not available

63

Poulan 532104618

$

$

Not available

64

Poulan 532106784

$

$

Not available

65

Poulan 532124005

NUT.WELD
(Superseded to 532002029)

$

$

Not available

66

Poulan 532001863

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 20+

0

67

Poulan 532106395

LENS

$

$

Not available

68

Poulan 532124392

(Superseded to 583678801)

$6.99

$

Usually ships in 3-10 days

0

69

Poulan 874191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 532104755

HOLDER

$

$

Not available

71

Poulan 817211010

$

$

Not available

72

Poulan 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

73

Poulan 874640806

Screw

$4.99

$

Usually ships in 3-10 days

0

74

Poulan 874760612

BOLT

$4.99

$

In Stock, Qty 20+

0

75

Poulan 532008710

FUEL TANK STEM GT

$

$

Not available

76

Poulan 810100800

Lock Washer

$3.99

$

Usually ships in 3-10 days

0

77

Poulan 532123825

CONSOLE SHIFTER

$

$

Not available

78

Poulan 532004171

CLIP T
(Superseded to 532124967)

$

$

Not available

79

Poulan 873951000

NUT,KEPS

$5.99

$

Usually ships in 3-10 days

0

80

Poulan 874641008

SCREW **

$2.99

$

Usually ships in 3-10 days

0

81

Poulan 532123976

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

82

Poulan 532121144

BOLT, SHOULDER**
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

83

Poulan 872050411

BOLT CARRIAGE 1/4-20X1 3/8

$

$

Not available

84

Poulan 532121251

STRIP FORM

$

$

Not available

85

Poulan 819131614

(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

86

Poulan 819060718

WASHER

$2.99

$

Usually ships in 3-10 days

0

87

Poulan TBD

Note: 105419X424

$

$

Not available

88

Poulan 874760614

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 532053838

NUT
(Superseded to 873640400)

$

$

Not available
