418044 - Poulan Lawn Tractor (2006-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

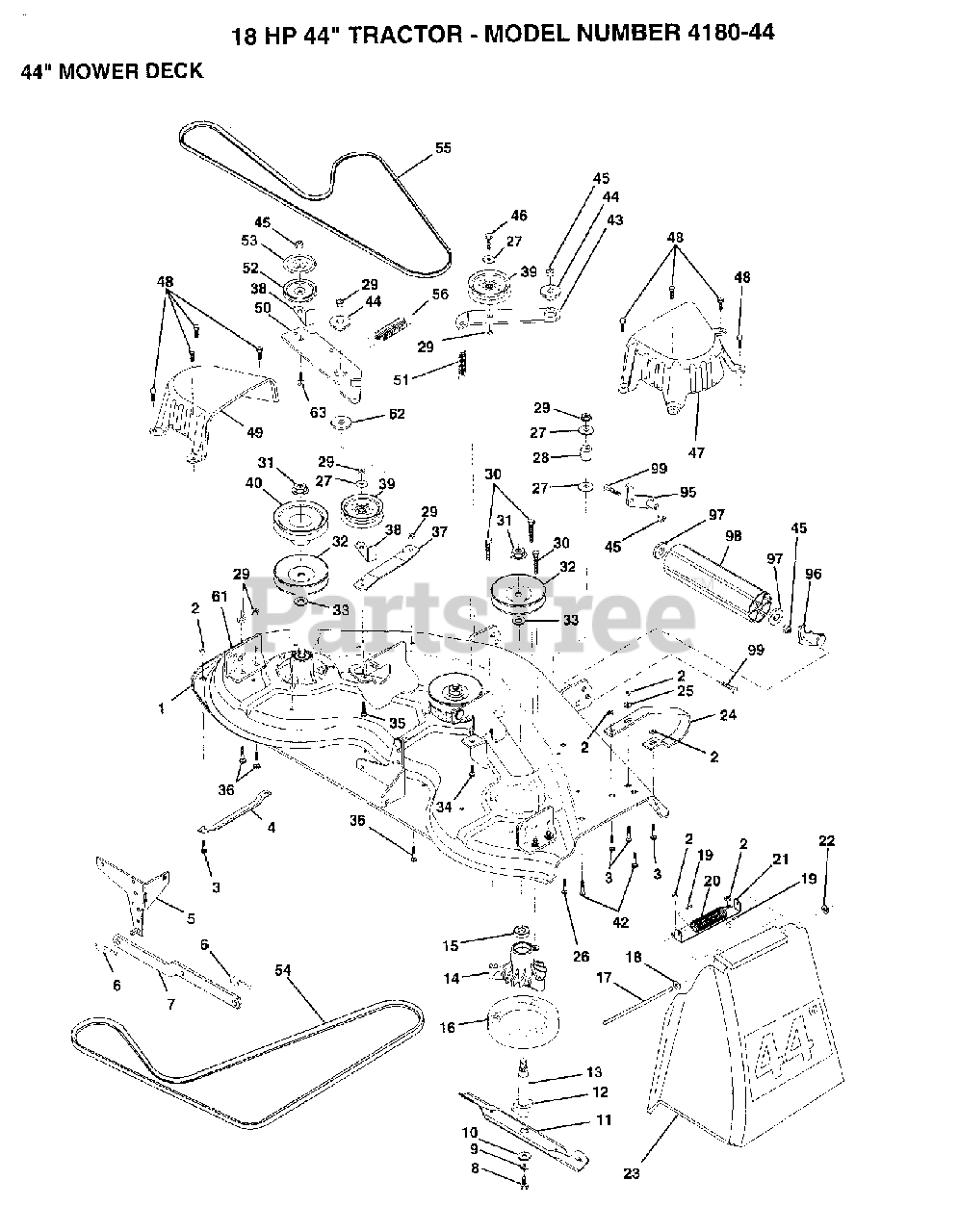

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan TBD

$

$

Not available

2

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 872110506

BOLT.5/16-18.

$7.49

$

In Stock, Qty 20+

0

4

Poulan 532007631

RUNNER LH

$18.99

$

In Stock, only 4 left!

0

5

Poulan 532138457

BRACKET SWAY BAR
(Superseded to 138457)

$

$

Not available

6

Poulan 532004939

RETAINER SPRING
(Superseded to 596919601)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532130832

(Superseded to 532130833)

$8.99

$

In Stock, Qty 5

0

8

Poulan 532850857

BLADE BOLT

$3.99

$

In Stock, Qty 17

0

9

Poulan 810030600

(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

10

Poulan 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

11

Poulan 532130652

44" BLADE-HI PERFORMANCE

$27.99

$

In Stock, only 4 left!

0

12

Poulan 532129895

BEARING.BALL.#6204.(MANDREL)
(Superseded to 738220419)

$26.99

$

In Stock, Qty 11

0

13

Poulan 532137553

SHAFT.ASM.W/BEARING

$37.99

$

In Stock, Qty 12

0

14

Poulan 532137152

HOUSING.MANDREL

$40.99

$

In Stock, only 4 left!

0

15

Poulan 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

16

Poulan 532136929

(Superseded to 532140329)

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 532106735

ROD-HINGE T

$8.99

$

In Stock, only 1 left!

0

18

Poulan 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

19

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

20

Poulan 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$5.99

$

In Stock, Qty 10

0

21

Poulan 532137607

BRACKET, DEFLECTOR

$6.49

$

In Stock, only 4 left!

0

22

Poulan 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532109785

DEFLECTOR SHIELD

$30.99

$

Usually ships in 3-10 days

0

24

Poulan 532124950

RUNNER-RH YTV
(Superseded to 532136321)

$

$

Not available

25

Poulan 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

26

Poulan 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

27

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

28

Poulan 532132823

IDLER SPRING SPACER

$7.49

$

Usually ships in 3-10 days

0

29

Poulan 532062336

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 532138776

Hex Washer Head Bolt, .313-18 X 1.19
(Superseded to 532157722)

$3.49

$

In Stock, Qty 20+

0

31

Poulan 532137266

(Superseded to 532139729)

$8.99

$

In Stock, only 2 left!

0

32

Poulan 532129861

(Superseded to 532153535)

$10.99

$

In Stock, Qty 20+

0

33

Poulan 532129963

WASHER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

34

Poulan 872140610

(Superseded to 583611601)

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 20+

0

36

Poulan 872110608

BOLT D

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532137166

STIFFENER ARM

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532137554

(Superseded to 532156085)

$

$

Not available

39

Poulan 532104360

IDLER-FLAT GT
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

40

Poulan 532136572

PULLEY.DRIVEN.44"

$

$

Not available

42

Poulan 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 532136460

ARM.IDLER.SEC.44"

$

$

Not available

44

Poulan 532122052

(Superseded to 532165723)

$6.49

$

In Stock, Qty 13

0

45

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

46

Poulan 874760628

BOLT
(Superseded to 874780628)

$6.49

$

In Stock, Qty 5

0

47

Poulan 532137200

COVER MANDRELL

$26.99

$

Usually ships in 3-10 days

0

48

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

49

Poulan 532136574

COVER.MANDREL.LH.44"

$

$

Not available

50

Poulan 532137272

ARM.IDLER.PRIMARY

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 532137273

SPRING.SEC.44"VEN

$7.49

$

In Stock, Qty 11

0

52

Poulan 532139245

PULLEY IDLER

$34.99

$

In Stock, Qty 10

0

53

Poulan 532137789

SHIELD IDLER

$

$

Not available

54

Poulan 532131264

BELT

$30.99

$

In Stock, only 3 left!

0

55

Poulan 532131290

BELT
(Superseded to 532144200)

$42.99

$

In Stock, Qty 20+

0

56

Poulan 532138687

SPRING

$

$

Not available

61

Poulan 532136573

BRACKET.GUAGE.WHEEL

$6.49

$

Usually ships in 3-10 days

0

62

Poulan 532133943

(Superseded to 532178515)

$6.49

$

In Stock, Qty 20+

0

63

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

64

Poulan 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

67

Poulan 532005394

LOCKNUT
(Superseded to 873930600)

$3.99

$

Usually ships in 3-10 days

0

95

Poulan 532132274

Roller Bracket Assembly, LH
(Superseded to 532175746)

$7.49

$

In Stock, Qty 10

0

96

Poulan 532132273

(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

97

Poulan 819171416

WASHER

$4.99

$

In Stock, Qty 13

0

98

Poulan 539132264

MANUAL, OPERATOR

$

$

Not available

99

Poulan 874760614

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

Poulan 532143651

MANDREL SERV ASM 44/50

$100.99

$

In Stock, Qty 8

0

Poulan TBD

$

$

Not available
