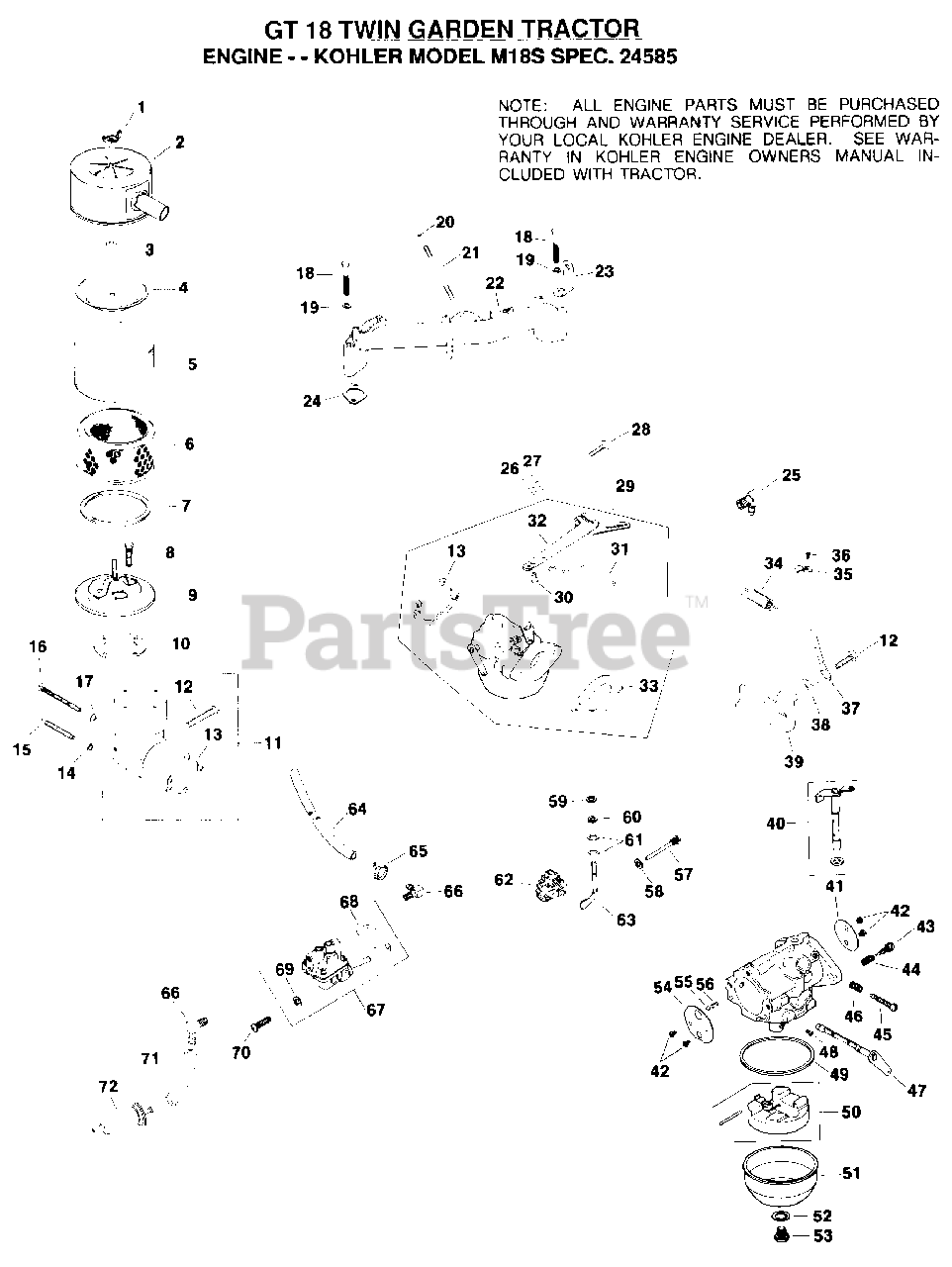

4181 E94 - Electrolux/AYP Lawn Tractor (1999) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

1

Kohler X-276-7

WING NUT
(Superseded to X-276-7-S)

$

$

Not available

2

Electrolux/AYP 52-096-36

COVER, AIR CLEANER

$

$

Not available

3

Kohler 231032

SEAL ELEMENT
(Superseded to 231032-S)

$8.49

$

In Stock, Qty 6

0

4

Electrolux/AYP 52-082-04

COVER AIR CLEANER ELEMENT

$

$

Not available

5

Electrolux/AYP 45-083-01

PRE-CLEANER

$

$

Not available

6

Electrolux/AYP 45-083-02

ELEMENT

$

$

Not available

7

Kohler 237423

SEAL
(Superseded to 237423-S)

$

$

Not available

8

Kohler X-67-98

SCREW
(Superseded to X-67-98-S)

$3.49

$

In Stock, Qty 9

0

9

Electrolux/AYP 52-201-06

BASE

$

$

Not available

10

Kohler 277093

GASKET
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 8

0

11

Electrolux/AYP 52-754-01

KIT, ELBOW

$

$

Not available

12

Electrolux/AYP 52-086-11

SCREW

$

$

Not available

13

Electrolux/AYP 25-041-06

GASKET, AIR CLEANER

$

$

Not available

14

Kohler X-22-9

WASHER
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

15

Kohler X-50-57

SCREW
(Superseded to X-50-57-S)

$5.49

$

In Stock, only 1 left!

0

16

Kohler X-50-37

SCREW
(Superseded to X-50-37-S)

$3.99

$

In Stock, Qty 5

0

17

Kohler X-25-79

WASHER
(Superseded to X-25-79-S)

$3.99

$

In Stock, only 2 left!

0

18

Kohler X-6-8

SCREW
(Superseded to X-6-8-S)

$

$

Not available

19

Kohler X-21-1

WASHER
(Superseded to X-21-1-S)

$3.99

$

Usually ships in 2-5 days

0

20

Kohler X-77-2

NUT
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

21

Kohler X-352-37

STUD
(Superseded to X-352-37-S)

$

$

Not available

22

Electrolux/AYP 52-164-10

MANIFOLD, INTAKE

$

$

Not available

23

Electrolux/AYP 52-445-02

STRAP, LIFTING

$

$

Not available

24

Electrolux/AYP 52-041-09

GASKET

$

$

Not available

25

Electrolux/AYP 25-155-02

CONNECTOR

$

$

Not available

26

Kohler X-81-1

NUT
(Superseded to 25 100 20-S)

$3.49

$

In Stock, only 1 left!

0

27

Kohler X-25-72

WASHER
(Superseded to X-25-72-S)

$3.99

$

In Stock, Qty 11

0

28

Electrolux/AYP 52-211-04

SCREW

$

$

Not available

29

Electrolux/AYP 52-853-10

KIT, CARBURETOR

$

$

Not available

30

Electrolux/AYP 25-158-07

BUSHING, LINKAGE

$

$

Not available

31

Electrolux/AYP 52-079-08

LINK, GOVERNOR

$

$

Not available

32

Electrolux/AYP 52-186-06

ARM, GOVERNOR

$

$

Not available

33

Kohler 271030

GASKET
(Superseded to 271030-S)

$7.49

$

In Stock, Qty 6

0

34

Electrolux/AYP 52-091-04

SPRING, GOVERNOR

$

$

Not available

35

Kohler 235778

CLAMP
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

36

Kohler X-67-97

SCREW
(Superseded to 25 086 109-S)

$3.49

$

Usually ships in 2-5 days

0

37

Electrolux/AYP 52-119-01

LEVER, SPEED CONTROL

$

$

Not available

38

Kohler 234614

STOP, GOVERNOR
(Superseded to 234614-S)

$

$

Not available

39

Electrolux/AYP 52-531-02

STOP, HIGH SPEED

$

$

Not available

40

Electrolux/AYP 52-144-16

SHAFT, THROTTLE

$

$

Not available

41

Electrolux/AYP 25-146-02

PLATE

$

$

Not available

42

Electrolux/AYP 25-086-27

SCREW

$

$

Not available

43

Electrolux/AYP 25-368-01

NEEDLE

$

$

Not available

44

Electrolux/AYP 25-089-02

SPRING

$

$

Not available

45

Electrolux/AYP 25-086-26

SCREW

$

$

Not available

46

Electrolux/AYP 25-089-04

SPRING

$

$

Not available

47

Electrolux/AYP 52-090-12

LEVER, CHOKE

$

$

Not available

48

Electrolux/AYP 52-337-06

JET, MAIN

$

$

Not available

49

Electrolux/AYP 25-041-04

GASKET

$

$

Not available

50

Electrolux/AYP 25-757-09

KIT

$

$

Not available

51

Electrolux/AYP 25-104-01

BOWL, FUEL

$

$

Not available

52

Electrolux/AYP 25-041-03

GASKET

$

$

Not available

53

Electrolux/AYP 25-100-05

SCREW, BOWL RETAINER

$

$

Not available

54

Electrolux/AYP 25-146-03

PLATE, CHOKE

$

$

Not available

55

Electrolux/AYP 25-194-01

BALL

$

$

Not available

56

Electrolux/AYP 25-089-03

SPRING

$

$

Not available

57

Kohler 231355

PIN
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

58

Kohler X-25-12

WASHER
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

59

Kohler X-25-63

WASHER, PLAIN 1/4
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

60

Kohler X-269-28

RETAINER
(Superseded to X-269-28-S)

$3.99

$

Usually ships in 2-5 days

0

61

Kohler X-25-102

WASHER
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 9

0

62

Kohler A-235743-S

KIT

$78.99

$

Usually ships in 2-5 days

0

63

Electrolux/AYP 52-078-04

SHAFT

$

$

Not available

64

Electrolux/AYP 52-353-04

LINE, FUEL

$

$

Not available

65

Kohler X-426-9

CLAMP, HOSE
(Superseded to X-426-9-S)

$4.99

$

In Stock, Qty 6

0

66

Electrolux/AYP 25-155-02

CONNECTOR

$

$

Not available

67

Electrolux/AYP 52-559-01

PUMP

$

$

Not available

68

Electrolux/AYP 25-041-05

GASKET, FUEL PUMP

$

$

Not available

69

Kohler X-25-63

WASHER, PLAIN 1/4
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

70

Electrolux/AYP 47-086-08

SCREW

$

$

Not available

71

Electrolux/AYP 25-353-03

LINE

$

$

Not available

72

Electrolux/AYP 25-050-01

FILTER, FUEL

$

$

Not available

Electrolux/AYP 25-113-07

DECAL, AIR CLEANER

$

$

Not available

Electrolux/AYP 25-757-08

KIT, CARBURETOR REPAIR

$

$

Not available

Electrolux/AYP 52-755-98

KIT, HIGH ALTITUDE JET

$

$

Not available
