418144 - Poulan Lawn Tractor (2006-12) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

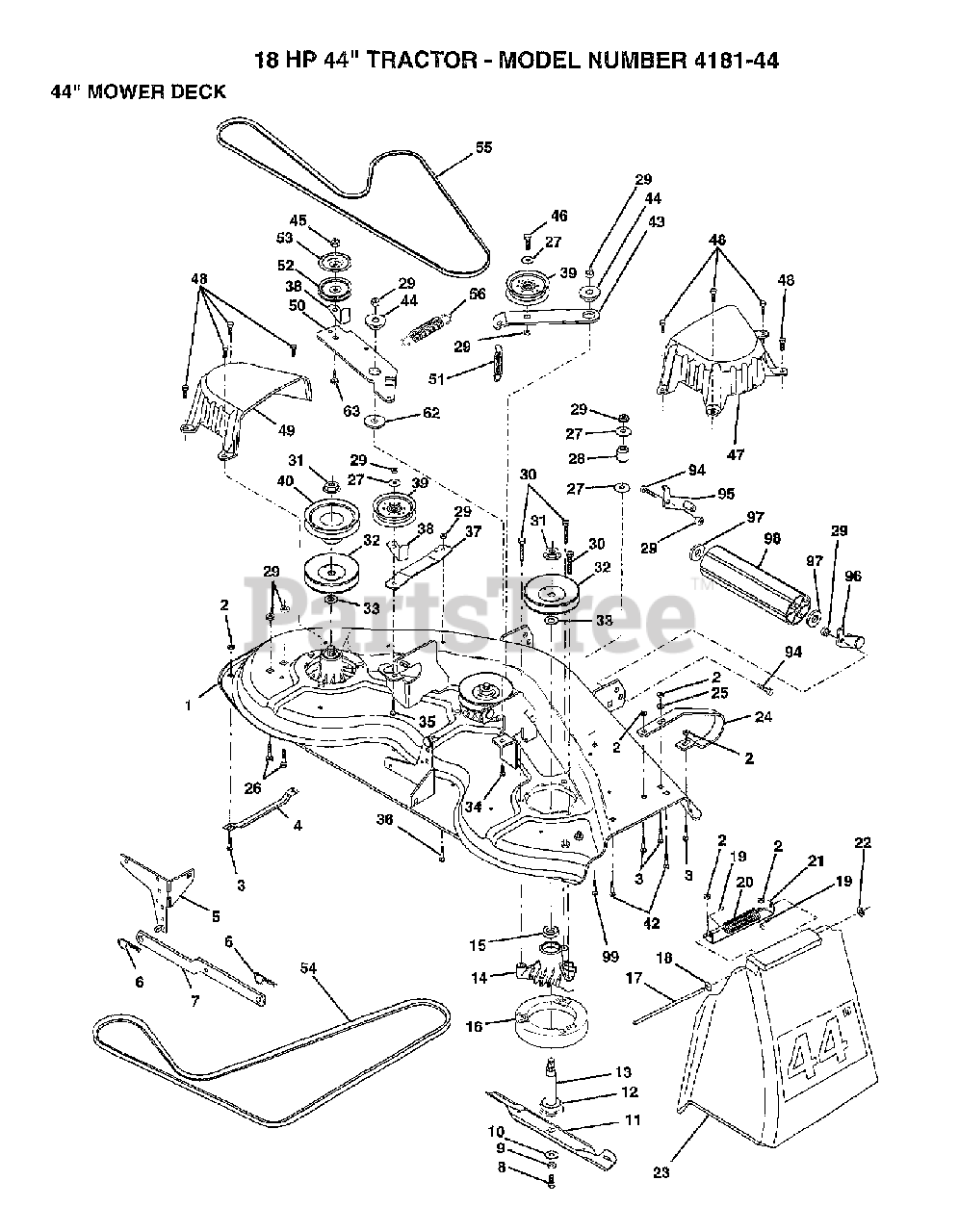

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan TBD

$

$

Not available

2

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 872110506

BOLT.5/16-18.

$6.99

$

In Stock, Qty 6

0

4

Poulan 532007631

RUNNER LH

$17.99

$

In Stock, Qty 7

0

5

Poulan 532138457

BRACKET SWAY BAR
(Superseded to 138457)

$

$

Not available

6

Poulan 532004939

RETAINER SPRING
(Superseded to 596919601)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532130832

(Superseded to 531149301)

$14.99

$

In Stock, only 2 left!

0

8

Poulan 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

9

Poulan 810030600

(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

10

Poulan 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 15

0

11

Poulan 532130652

44" BLADE-HI PERFORMANCE

$22.99

$

In Stock, only 1 left!

0

12

Poulan 532129895

BEARING.BALL.#6204.(MANDREL)
(Superseded to 738220419)

$20.99

$

In Stock, Qty 5

0

13

Poulan 532137553

SHAFT.ASM.W/BEARING

$45.99

$

In Stock, Qty 8

0

14

Poulan 532137152

HOUSING.MANDREL

$47.99

$

In Stock, only 4 left!

0

15

Poulan 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

16

Poulan 532128961

(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

17

Poulan 532106735

ROD-HINGE T

$11.99

$

Usually ships in 3-10 days

0

18

Poulan 819111016

WASHER
(Superseded to 734116301)

$

$

Not available

19

Poulan 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

20

Poulan 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$8.49

$

In Stock, Qty 16

0

21

Poulan 532137607

BRACKET, DEFLECTOR
(Superseded to 531155201)

$

$

Not available

22

Poulan 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532109785

DEFLECTOR SHIELD

$33.99

$

Usually ships in 3-10 days

0

24

Poulan 532124950

RUNNER-RH YTV
(Superseded to 532136321)

$

$

Not available

25

Poulan 819111216

WASHER M
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

26

Poulan 872110606

BOLT
(Superseded to 596136001)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 819131316

WASHER

$4.99

$

In Stock, only 2 left!

0

28

Poulan 532132823

IDLER SPRING SPACER

$

$

Not available

29

Poulan 532062336

NUT
(Superseded to 873610600)

$

$

Not available

30

Poulan 532138776

Hex Washer Head Bolt, .313-18 X 1.19
(Superseded to 532173984)

$3.99

$

In Stock, Qty 20+

0

31

Poulan 532137266

(Superseded to 532139729)

$9.99

$

In Stock, only 2 left!

0

32

Poulan 532129861

(Superseded to 532173436)

$21.99

$

In Stock, Qty 20+

0

33

Poulan 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

34

Poulan 872140610

(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 20+

0

36

Poulan 872110608

BOLT D

$

$

Not available

37

Poulan 532137166

STIFFENER ARM

$

$

Not available

38

Poulan 532137554

(Superseded to 532156085)

$

$

Not available

39

Poulan 532104360

IDLER-FLAT GT
(Superseded to 597025001)

$33.99

$

In Stock, Qty 20+

0

40

Poulan 532136572

PULLEY.DRIVEN.44"

$

$

Not available

42

Poulan 872140506

BOLT
(Superseded to 595901601)

$2.49

$

In Stock, Qty 20+

0

43

Poulan 532136460

ARM.IDLER.SEC.44"

$

$

Not available

44

Poulan 532122052

(Superseded to 532165723)

$7.49

$

In Stock, Qty 20+

0

45

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

46

Poulan 874760628

BOLT
(Superseded to 582740701)

$5.99

$

In Stock, only 1 left!

0

47

Poulan 532137200

COVER MANDRELL

$

$

Not available

48

Poulan 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

49

Poulan 532136574

COVER.MANDREL.LH.44"

$

$

Not available

50

Poulan 532137272

ARM.IDLER.PRIMARY

$

$

Not available

51

Poulan 532137273

SPRING.SEC.44"VEN

$9.99

$

In Stock, Qty 11

0

52

Poulan 532139245

PULLEY IDLER

$47.99

$

In Stock, Qty 20+

0

53

Poulan 532137789

SHIELD IDLER

$

$

Not available

54

Poulan 532131264

BELT

$39.99

$

In Stock, only 1 left!

0

55

Poulan 532131290

BELT
(Superseded to 532144200)

$51.99

$

In Stock, Qty 20+

0

56

Poulan 532138687

SPRING

$

$

Not available

62

Poulan 532133943

(Superseded to 532178515)

$7.49

$

In Stock, Qty 20+

0

63

Poulan 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 11

0

94

Poulan 874760614

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 14

0

95

Poulan 532132274

Roller Bracket Assembly, LH
(Superseded to 532175746)

$9.49

$

In Stock, only 2 left!

0

96

Poulan 532132273

(Superseded to 531154101)

$14.99

$

In Stock, only 4 left!

0

97

Poulan 819171416

WASHER

$4.99

$

In Stock, only 4 left!

0

98

Poulan 539132264

MANUAL, OPERATOR

$

$

Not available

99

Poulan 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 20+

0

Poulan 532143651

MANDREL SERV ASM 44/50

$107.99

$

In Stock, only 1 left!

0

Poulan 532144075

DECK SERV 44

$

$

Not available
