420/30 (13B226JD308) - Yard Machines 30" Lawn Tractor, 420cc (2018) Fender Parts Diagram

30" Lawn Tractor, 420cc

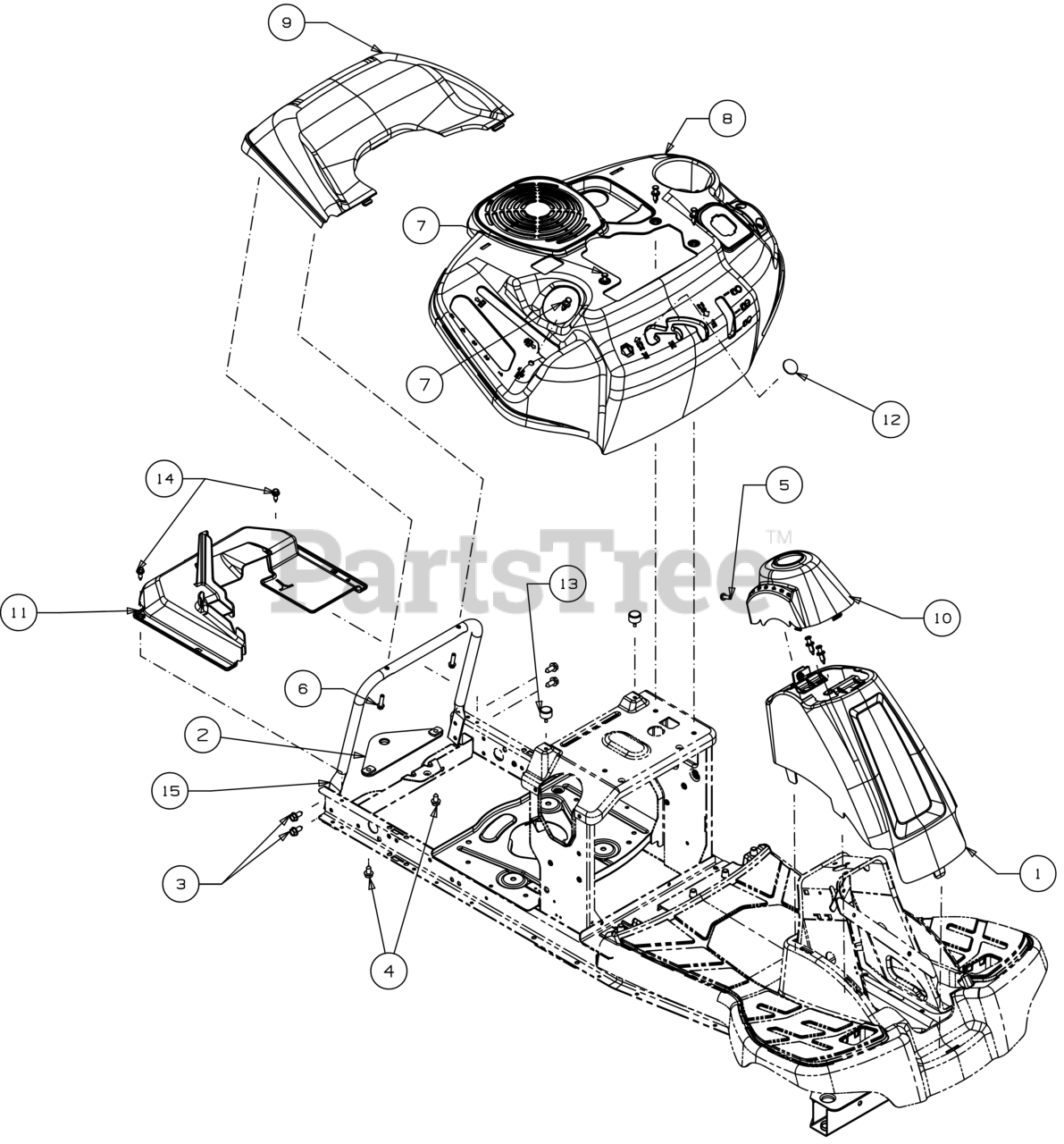

Fender Parts Diagram

  • Title

1

MTD 631-05038

COLUMN COVER ASSEMBLY (MTD RED)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 683-05377

HITCH PLATE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

683-05377-0637

MTD 683-05377-0637

PLATE ASM-HITCH - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$24.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0604A

SCREW 5/16-18 x .625

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-0924

SCREW 1/4-20X.75

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, only 4 left!

0

7

MTD 728-0199

PLASTIC RIVET

$4.99

$

In Stock, Qty 20+

0

8

MTD 931-08529A

FENDER ASSEMBLY

$

$

Not available

9

MTD 731-08620A

REAR COVER

$35.99

$

In Stock, only 2 left!

0

10

MTD 731-09382

COLUMN STEERING CAP

$15.99

$

In Stock, only 2 left!

0

11

MTD 731-10504

DRIVE OVER REAR

$53.99

$

In Stock, only 2 left!

0

12

MTD 731-1999

CHOKE PLUG

$10.99

$

Usually ships in 3-6 days

0

13

MTD 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

14

MTD 738-04184A

SHOULDER SCREW

$7.49

$

In Stock, Qty 17

0

15

MTD 749-04932

REAR SUPPORT TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

749-04932-0637

MTD 749-04932-0637

Support Tube, Rear - POWDER BLACK (0637)

$36.99

$

In Stock, only 4 left!

0

$29.99

$

Usually ships in 3-6 days

0
