420 (311-440-100) - Cub Cadet 20" Snow Thrower (1991) Snow Thrower Part 1 Parts Diagram

20" Snow Thrower

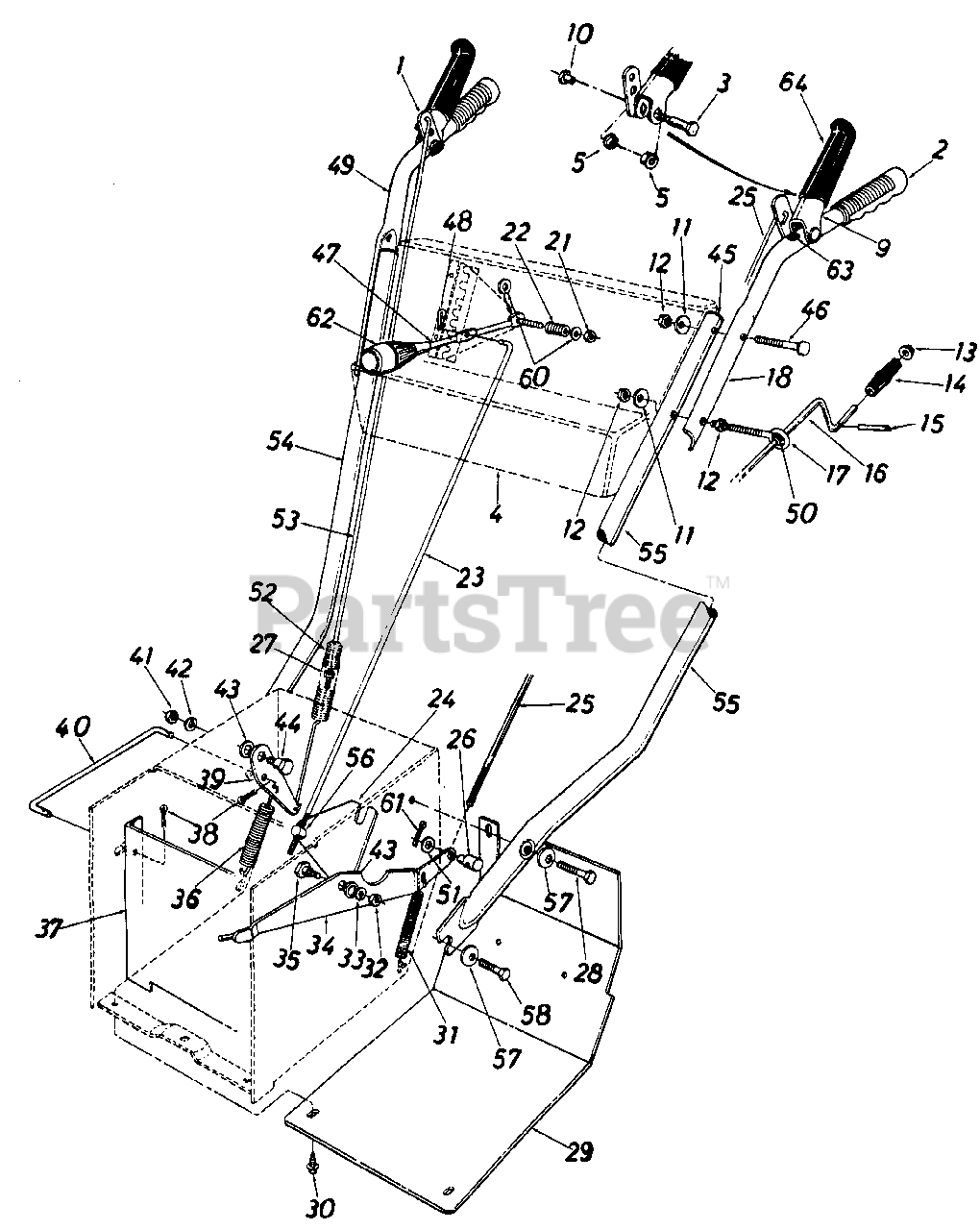

Snow Thrower Part 1 Parts Diagram

  • Title

1

Cub Cadet 05988

GRIP ASSY-LH CLUTCH 2-STG S/T MTD

$

$

Not available

2

Cub Cadet 720-0220

GRIP-RED

$

$

Not available

3

Cub Cadet 738-0560

SCREW-SHLD .374 DIA X1.530
(Superseded to 938-0560)

$9.99

$

In Stock, only 2 left!

0

4

Cub Cadet 784-5451

PANEL ASSY-HANDLE

Note: Color Code 499

$

$

Not available

5

Cub Cadet 741-0402

BEARING-FLANGE

$

$

Not available

9

Cub Cadet 05987

GRIP ASSY-LH CLUTCH 2-STG S/T MTD

$

$

Currently unavailable

10

Cub Cadet 738-0561

NUT-SHLD
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

11

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 726-0100

NUT-PUSH

$3.99

$

In Stock, Qty 8

0

14

Cub Cadet 720-0201A

KNOB-CHUTE CRANK

$10.99

$

In Stock, Qty 6

0

15

Cub Cadet 715-0138

PIN-ROLL 1/18 DIA
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 05980

CRANK ASSY-CHUTE

$

$

Not available

17

Cub Cadet 747-0416A

BOLT-EYE

$

$

Not available

18

Cub Cadet 749-0595

HANDLE-FOLDING-LH PAINTED

$

$

Not available

21

Cub Cadet 712-0429

NUT-HEX INS L-5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0193

SPRING-COMPRESSION

$4.49

$

In Stock, Qty 8

0

23

Cub Cadet 747-0356A

ROD-SHIFT

$

$

Not available

24

Cub Cadet 05898

BRACKET-LINKAGE

$

$

Not available

25

Cub Cadet 747-0452

ROD-CLUTCH

$

$

Not available

26

Cub Cadet 711-0736

FERRULE-ADJ

$13.99

$

In Stock, only 2 left!

0

27

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0427

SCREW-HEX 3/8-16 X 2.00
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 05899B

Fram Cover

$

$

Currently unavailable

30

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 732-0320

SPRING-EXTENSION
(Superseded to 932-0320)

$9.99

$

In Stock, only 3 left!

0

32

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

34

Cub Cadet 784-5050

BRACKET-AUG CLUTCH

$

$

Not available

35

Cub Cadet 738-0281

SCREW-SHLD .625 DIA X .163

$9.99

$

In Stock, only 1 left!

0

36

Cub Cadet 732-0121

SPRING-IDLER EXTN
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

37

Cub Cadet 05878

BRACKET ASSY-PULLEY SUP

$

$

Currently unavailable

38

Cub Cadet 05878

BRACKET ASSY-PULLEY SUP

$

$

Currently unavailable

39

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 10080

ROD-VAR SP CLUTCH

$

$

Not available

41

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

44

Cub Cadet 738-0281

SCREW-SHLD .625 DIA X .163

$9.99

$

In Stock, only 1 left!

0

45

Cub Cadet 731-0496

PLUG

$

$

Not available

46

Cub Cadet 710-0487

BOLT-CARRIAGE 5/16-18 X 2.00

$6.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 747-0696

HANDLE-SHIFT

$

$

Not available

48

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 749-0596

HANDLE-FOLDING-RH

Variations

Cub Cadet 749-0596-0637

HANDLE-FOLDING (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 741-0475

BUSHING-.380 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.49

$

In Stock, only 1 left!

0

52

Cub Cadet 732-0184

SPRING

$23.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 747-0154

ROD-LOCKOUT

$

$

Not available

54

Cub Cadet 749-0418

HANDLE-LOWER-RH PAINTED

$

$

Not available

55

Cub Cadet 749-0417

HANDLE-LOWER-LH PAINTED

$

$

Not available

56

Cub Cadet 711-0677

FERRULE
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

57

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 710-0623

SCREW-HEX WASH SF TAPP 3/8 X 3/4

$3.99

$

In Stock, Qty 12

0

60

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.49

$

In Stock, only 1 left!

0

61

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 720-0218

KNOB

$18.99

$

In Stock, only 2 left!

0

63

Cub Cadet 726-0247

CAP-PUSH
(Superseded to 935-0199A)

$6.99

$

In Stock, Qty 16

0

64

Cub Cadet 731-0473

VINYL-PLASTIC

$4.49

$

Usually ships in 3-6 days

0
