420 (311-440-100) - Cub Cadet 20" Snow Thrower (1991) Snow Thrower Part 4 Parts Diagram

20" Snow Thrower

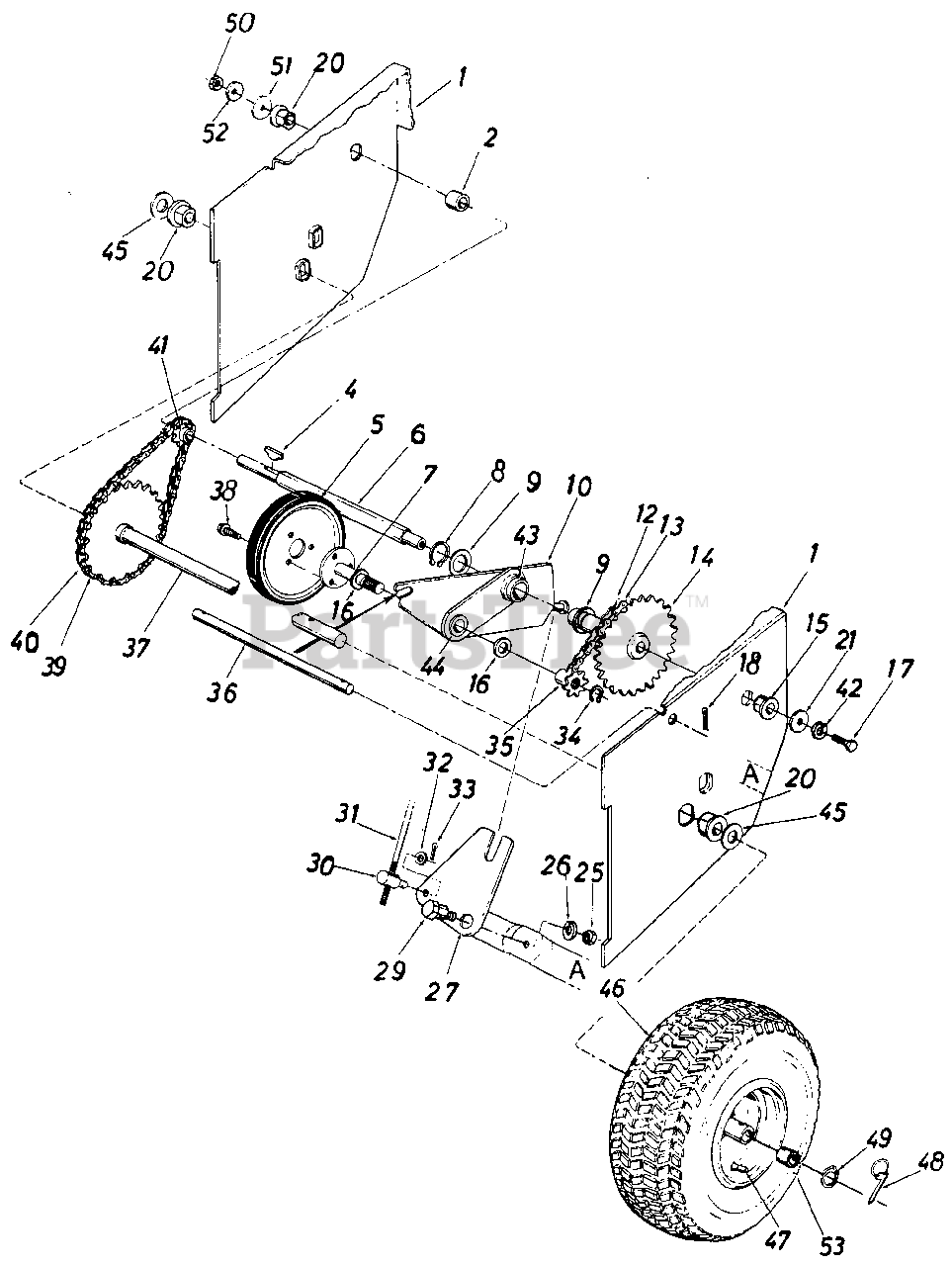

Snow Thrower Part 4 Parts Diagram

  • Title

1

Cub Cadet 784-5197

FRAME ASSY

$

$

Not available

2

Cub Cadet 750-0499

SPACER

$22.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 714-0129

KEY-HI-PRO #4-3/32X5/8 DIA-HDN
(Superseded to 914-0129)

$

$

Not available

5

Cub Cadet 05080A

WHEEL ASSY-FRICTION
(Superseded to 05080AP)

$33.99

$

In Stock, Qty 17

0

6

Cub Cadet 738-0496A

SHAFT-HEX

$

$

Not available

7

Cub Cadet 05883

PLATE ASSY-FRICTION WHEEL MTG

$

$

Not available

8

Cub Cadet 716-0102

RING-SNAP FOR 1.00 DIA SHAFT

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0163

WASHER-FL-1.03 ID X 1.62 X .03 HD

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 05880

BRACKET ASSY-SLIDING

$

$

Not available

12

Cub Cadet 713-0285

CHAIN X 35 LINKS

$

$

Not available

13

Cub Cadet 713-0723

#41 MASTER LINK 1/2 PITCH TYPEII
(Superseded to 913-0723)

$

$

Not available

14

Cub Cadet 713-0281

SPROCKET ASSY-32T

$

$

Currently unavailable

15

Cub Cadet 741-0225

BEARING-FLANGE
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0290

WASHER-FL

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0538

SCREW-HEX 5/16-18 X .62

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 741-0490

BEARING-FLANGE W/FLATS
(Superseded to 941-0490)

$12.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet 05898A

BRACKET-LINKAGE

$

$

Not available

29

Cub Cadet 738-0281

SCREW-SHLD .625 DIA X .163

$9.99

$

In Stock, only 1 left!

0

30

Cub Cadet 711-0677

FERRULE
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

31

Cub Cadet 747-0356

ROD-SHIFT

$

$

Not available

32

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.49

$

In Stock, only 1 left!

0

33

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 716-0145

RING-C SNAP
(Superseded to 716-0397)

$

$

Not available

35

Cub Cadet 713-0280

SPROCKET-7T

$

$

Not available

36

Cub Cadet 738-0497

SHAFT

$

$

Currently unavailable

37

Cub Cadet 713-0323

AXLE ASSY-WHEEL

$

$

Not available

38

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 713-0270

#41 CHAIN 1/2" PITCH X 43 LINK

Note: (420)

$

$

Not available

Cub Cadet 713-0287

#420 CHAIN 1/2 PITCH X 39 LINKS

Note: (524)

$

$

Not available

40

Cub Cadet 713-0723

#41 MASTER LINK 1/2 PITCH TYPEII
(Superseded to 913-0723)

Note: (420)

$

$

Not available

Cub Cadet 713-0154

#420 MASTER LINK 1/2 PITCH TYPE II
(Superseded to 913-0154)

Note: (524)

$

$

Not available

41

Cub Cadet 748-0204

SPROCKET-CENTER #41-8T

$

$

Not available

42

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 741-0476

BEARING
(Superseded to 741-04488)

$8.99

$

In Stock, Qty 20+

0

44

Cub Cadet 748-0184

BEARING-FLANGE .630 ID

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0188

WASHER-FL-.760ID X 1.49OD X .06HDN

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 734-1528

WHEEL ASSY-SNOW HOG-13X5

$

$

Currently unavailable

Cub Cadet 734-1147

WHEEL RIM

$

$

Currently unavailable

Cub Cadet 734-1527

TIRE-SNOW HOG 1.3X5.0

Variations

Cub Cadet 734-1527-0901

TIRE-SNOW HOG 13X5CARLISLE - Carlisle (0901)

$

$

Not available

Cub Cadet 734-1527-0905

TIRE-SNOW HOG 13X5DURO - Duro (0905)

$

$

Not available

$

$

47

Cub Cadet 734-0255

VALVE-TUBELESS AIR
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 714-0143

PIN-CLICK-5/16 DIA X 1.75LG
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 19

0

49

Cub Cadet 716-0101

RING-SNAP FOR .750 DIA SHAFT

$3.49

$

In Stock, Qty 9

0

50

Cub Cadet 712-0200A

NUT-HEX INS L-1/2-20

$4.49

$

In Stock, only 1 left!

0

51

Cub Cadet 736-0257

WASHER-FL-.546 X 1.28 X .090
(Superseded to 936-0179)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 741-0401

BEARING-SLEEVE
(Superseded to 941-0401)

$6.99

$

In Stock, Qty 14

0
