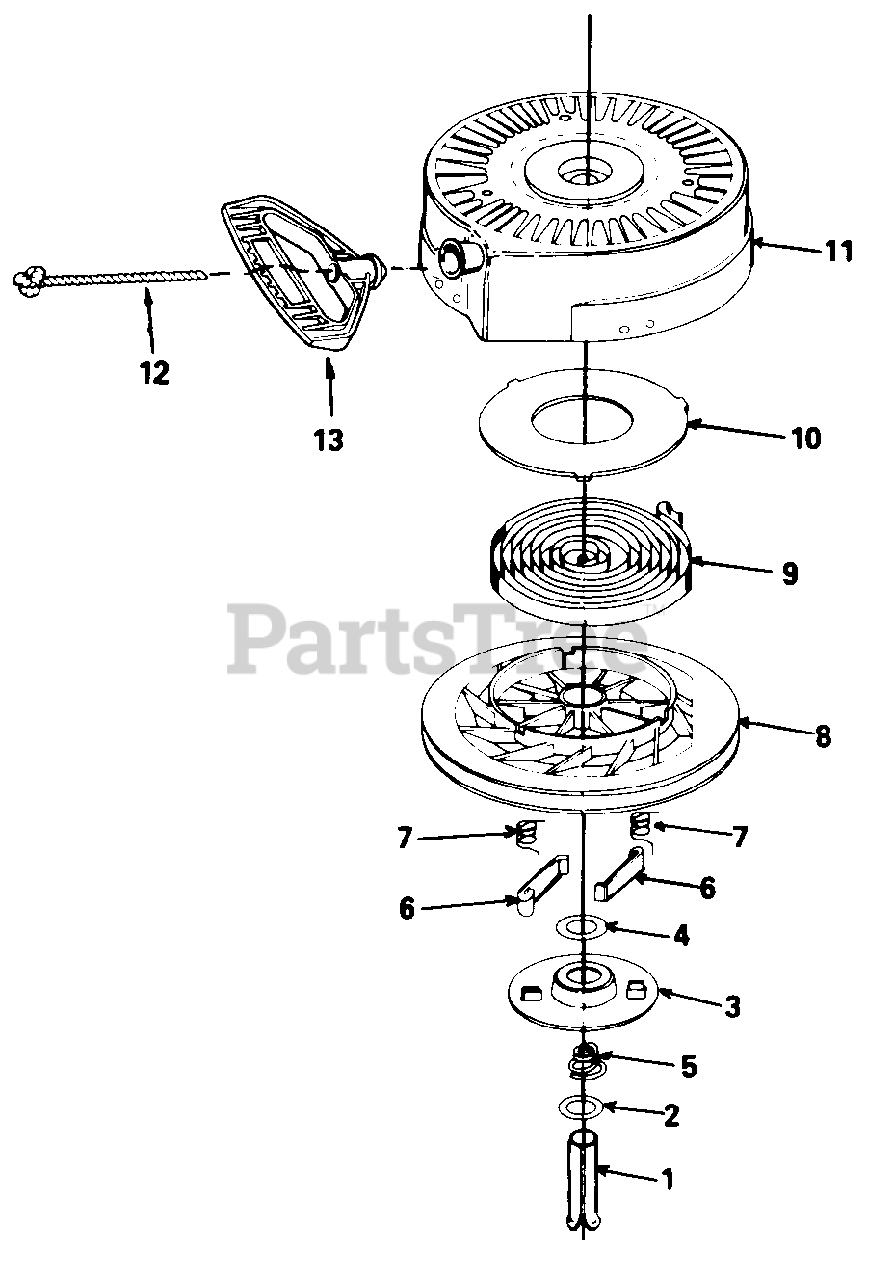

420 (312-440-100) - Cub Cadet 20" Snow Thrower Engine (1992) Tec 4 HP Rewind Starter Parts Diagram

20" Snow Thrower Engine

Tec 4 HP Rewind Starter Parts Diagram

  • Title

1

Cub Cadet TC-590599A

Pin, Spring

Note: (Incl. No. 4)

$5.49

$

In Stock, only 3 left!

0

2

Cub Cadet TC-590600

Washer

$1.99

$

In Stock, Qty 5

0

3

Cub Cadet TC-590615

Retainer

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet TC-590601

Washer

$1.99

$

In Stock, only 4 left!

0

5

Cub Cadet TC-590598

Spring, Brake

$3.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-590616

Dog, Starter

$7.49

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-590617

Spring, Dog

$3.99

$

In Stock, only 1 left!

0

8

Cub Cadet TC-590645

Pulley
(Superseded to TC-590645A)

$

$

Not available

9

Cub Cadet TC-590619

Spring, Rewind

$14.99

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-590620

Cover, Spring

$3.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-590647

Housing Ass'y., Starter

$

$

Not available

12

Cub Cadet TC-590451A

Rope, Starter (Length 69" & 5/32" Dia.)

$9.49

$

In Stock, Qty 18

0

13

Cub Cadet TC-590574

Handle, Mitten Grip

Note: (Not Included with Starter)

$5.49

$

In Stock, only 1 left!

0

Cub Cadet TC-590646

Starter, Rewind
(Superseded to TC-590787)

$53.99

$

In Stock, only 1 left!

0
