420 (71691404) - Simplicity 20" Snow Thrower, 3.5hp Frame Group Parts Diagram

20" Snow Thrower, 3.5hp

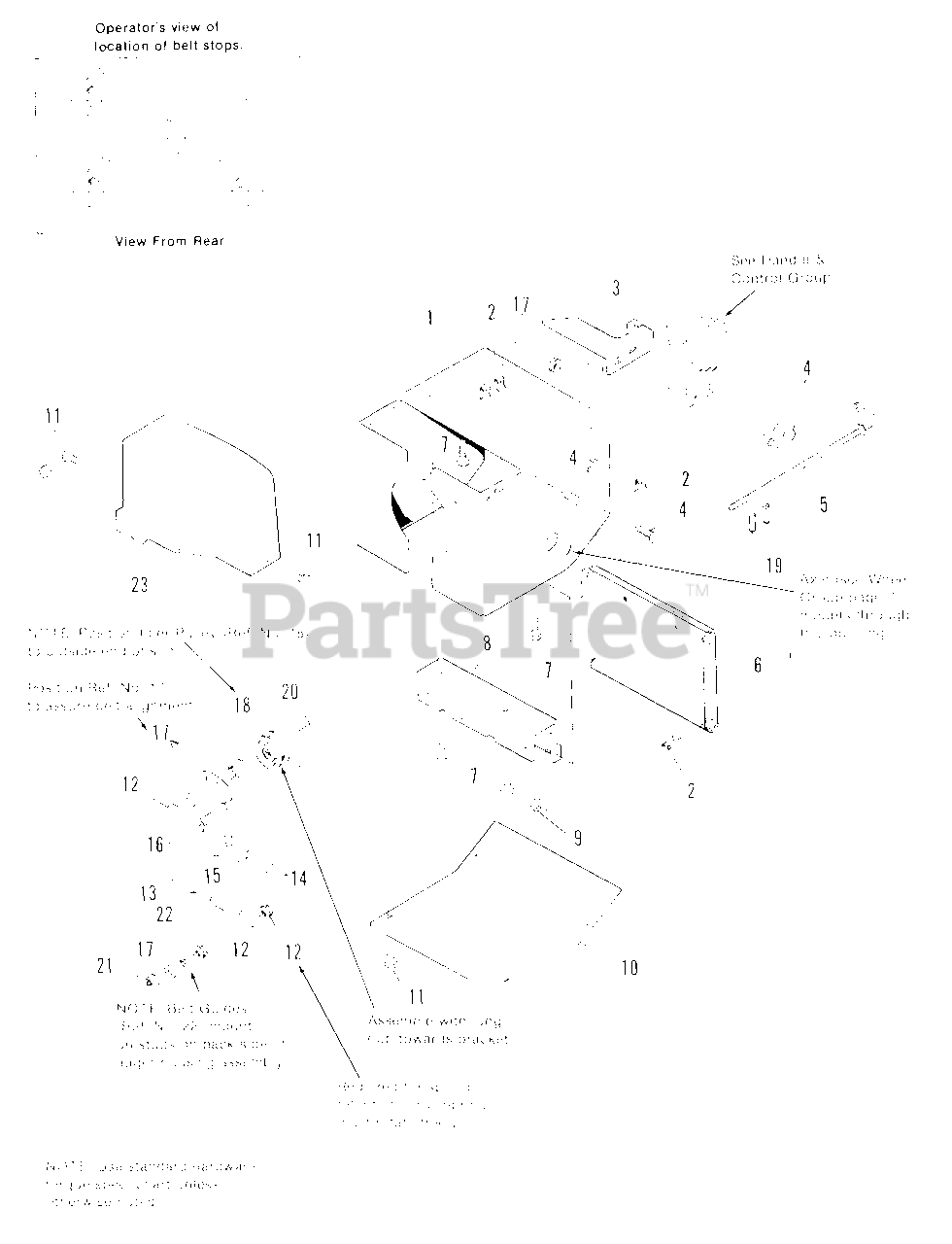

Frame Group Parts Diagram

  • Title

1

Simplicity 1611743

FRAME

$

$

Not available

2

Simplicity 2835255

PALNUT, 5/16-18

$

$

Not available

3

Simplicity 1674297

COVER, Belt

$

$

Not available

4

Simplicity 1930591SM

SCREW, Hex, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 13

0

5

Simplicity 1674320SM

ROD, Idler

$37.99

$

Usually ships in 2-12 days

0

6

Simplicity 1678943

MOUNTING PLATE, Trans.

$

$

Not available

7

Simplicity 1921221SM

SCREW, Hex, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 3 left!

0

8

Simplicity 1675114

SUPPORT, Trans.

$

$

Not available

9

Simplicity 1931277SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

10

Simplicity 1676442SM

PAN, Bottom

$

$

Not available

11

Simplicity 1925003SM

SCREW, Hex, Taptite 1 /4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

12

Simplicity 1928731SM

NUT, Hex, Jam 3/8-16 (Qty. 2 on 1691416 & 1691417)

$5.49

$

In Stock, only 1 left!

0

13

Simplicity 1673911SM

SPRING, Extension

$22.99

$

In Stock, only 2 left!

0

14

Simplicity 2825160SM

RIVET, Brake Pad

$4.49

$

In Stock, Qty 8

0

15

Simplicity 1676543

PAD, Brake

$

$

Not available

16

Simplicity 1674316

IDLER ARM & BRAKE ASSY.

$

$

Not available

17

Simplicity 1919326SM

WASHER (Qty. 8 on 1691172)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1668477SM

IDLER PULLEY

$25.99

$

In Stock, only 4 left!

0

19

Simplicity 2816169SM

PIN Roll

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 2821969

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

21

Simplicity 1930645SM

NUT, Hex Flange Lock 7/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1674315SM

GUIDE, Belt

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1678699SM

GUARD, Belt

$

$

Not available
