420 - Husqvarna Automower Robotic Lawn Mower (2017-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

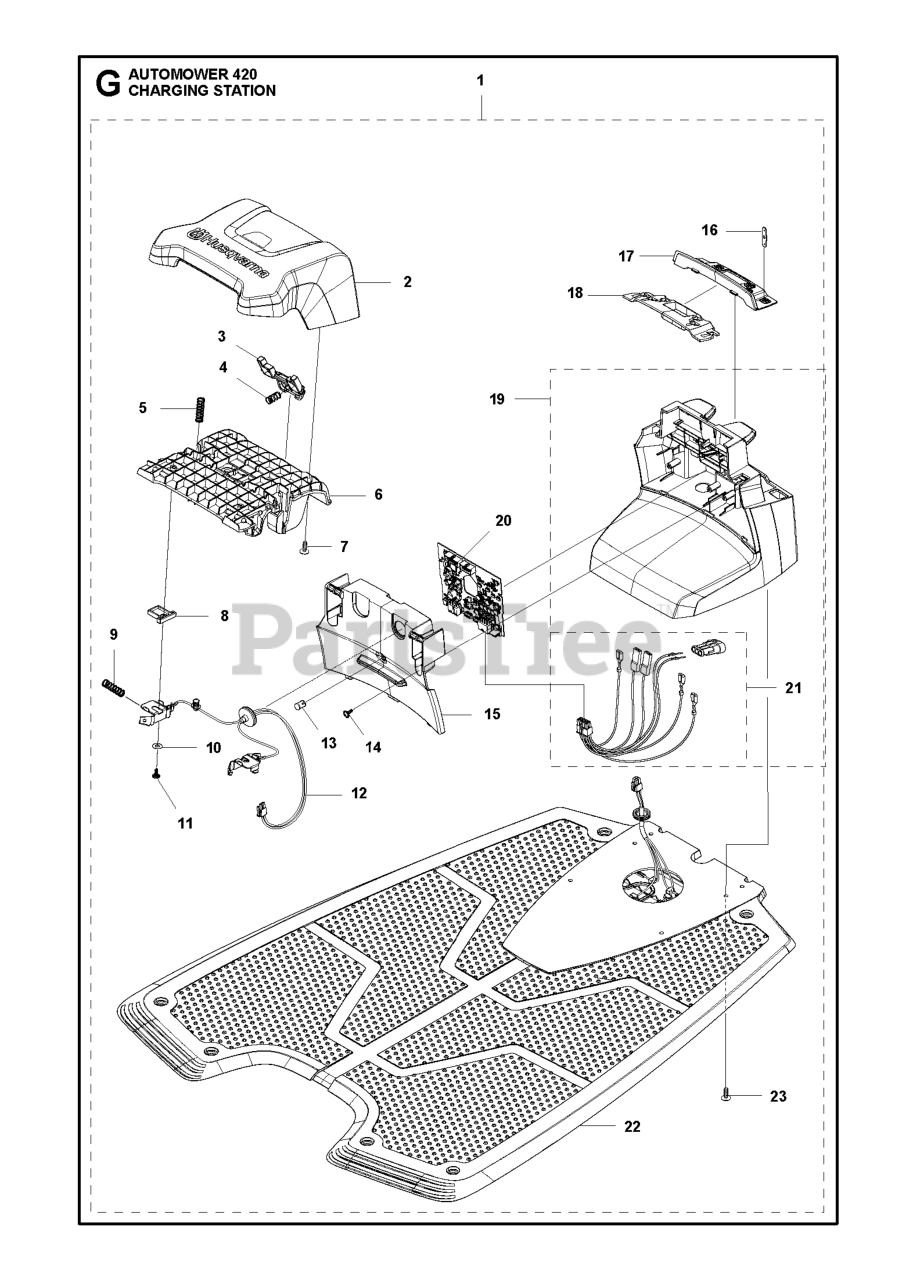

CHARGING STATION Parts Diagram

  • Title

12

Husqvarna 585539502

CABLE ASSY CHARGING CONTACTS
(Superseded to 531242201)

Note: Loom Charging Contact

$59.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

13

Husqvarna 535128702

LENS
(Superseded to 590217201)

Note: Lens

$8.49

$

Usually ships in 3-10 days

0

17

Husqvarna 579459801

PAN CHARGING STATION 320, ONE

Note: Panel

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579462402

BUTTON CHARGING STATION, RELEA

Note: Button

$8.49

$

Usually ships in 3-10 days

0

4

Husqvarna 574487001

SPRING STOP BUTTON

Note: Spring

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 575231602

CHARGING PLATE CHARGING PLATE
(Superseded to 590094001)

Note: Charging Plate

$454.99

$

In Stock, only 1 left!

0

5

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

20

Husqvarna 589507802

PCBA CS BOARD

Note: PCBA Charging Station

$239.99

$

Usually ships in 3-10 days

0

21

Husqvarna 588478901

CABLE KIT GENERATOR BOARD

Note: Wiring CS

$

$

Not available

1

Husqvarna 580765505

NEEDS DESCRIPTION

Note: Charging Station

$

$

Currently unavailable

23

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

2

Husqvarna 579448203

CAP CHARGING STATION

Note: Cap

$45.99

$

In Stock, only 1 left!

0

7

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

18

Husqvarna 579459901

HOLDER CHARGING STATION

Note: Holder

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 580504101

TERMINAL TERMINAL CHARGING STA

Note: Terminal

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 579460501

DISTANCE CHARGING STATION
(Superseded to 579460502)

Note: Distance

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588188801

HOUSING ASSY CHARGING STATION

Note: Housing KIT

$68.99

$

Usually ships in 3-10 days

0

15

Husqvarna 579459704

LID CHARGING STATION 320, ONE

Note: Lid

$35.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579458004

FRAME CHARGING STATION

Note: Frame

$29.99

$

Usually ships in 3-10 days

0

10

Husqvarna 734113741

WASHER

Note: Washer

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0
