420 - Husqvarna Automower Robotic Lawn Mower (2017-01) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

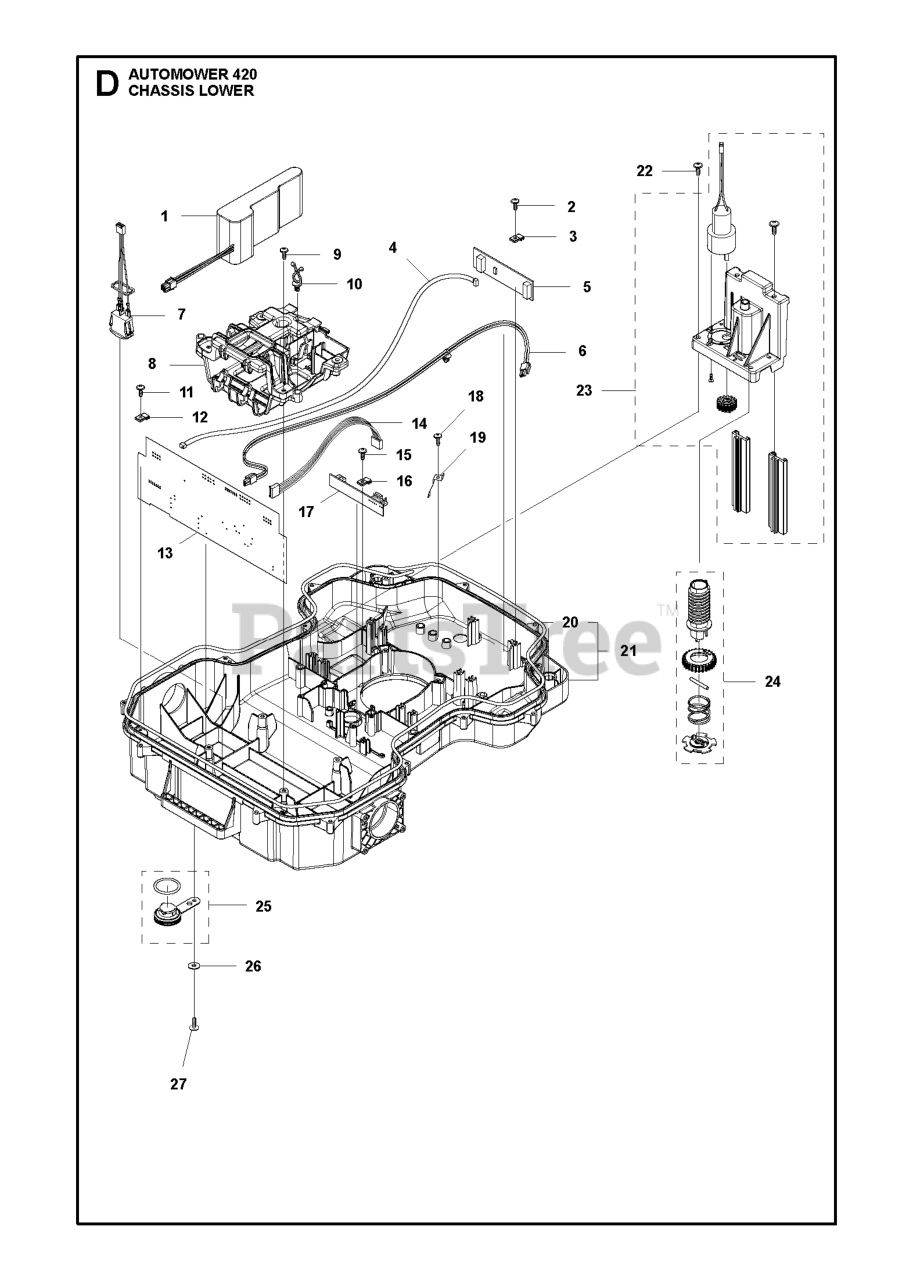

CHASSIS LOWER Parts Diagram

  • Title

8

Husqvarna 580609601

Note: Holder

$

$

Currently unavailable

7

Husqvarna 579708701

LOOM ON/ OFF

Note: Switch, On Off

$37.99

$

Usually ships in 3-10 days

0

23

Husqvarna 501068301

MOTOR ASSY HEIGHT MOTOR

Note: Motor ASSY

$191.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 574874705

SEALING STRIP

Note: Sealing Strip (1 pcs, ¯5 mm)

$11.99

$

In Stock, Qty 6

0

16

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579728502

PRINTED CIRCUIT ASSY PCBA CUTT

Note: Printed Circuit ASSY

$47.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589585201

BATTERY LI-ION
(Superseded to 529606801)

Note: Battery

$778.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

15

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

18

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

5

Husqvarna 588903001

PRINTED CIRCUIT ASSY LOOP SENS
(Superseded to 592852701)

Note: Printed Circuit ASSY

$95.99

$

Usually ships in 3-10 days

0

25

Husqvarna 581621202

PLUG KIT

Note: Plug KIT

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 734113741

WASHER

Note: Washer

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

21

Husqvarna 581621701

(Superseded to 581621702)

Note: Chassis KIT

$203.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579708201

LOOM LOOP SENSOR

Note: Loom

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 586813503

PRINTED CIRCUIT ASSY PCBA MAIN
(Superseded to 592852601)

Note: Printed Circuit ASSY

$538.99

$

Usually ships in 3-10 days

0

12

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 581556101

SPRING GUIDE HEIGHT ADJUSTMENT

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 579708001

LOOM HEIGHT ADJUSTMENT

Note: Loom

$29.99

$

Usually ships in 3-10 days

0

22

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

24

Husqvarna 581621601

SCREW KIT

Note: Screw KIT

$27.99

$

Usually ships in 3-10 days

0

27

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580370702

LOOM CHARGING LINK HIGH CHARGI
(Superseded to 534156602)

Note: Loom

$33.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0
