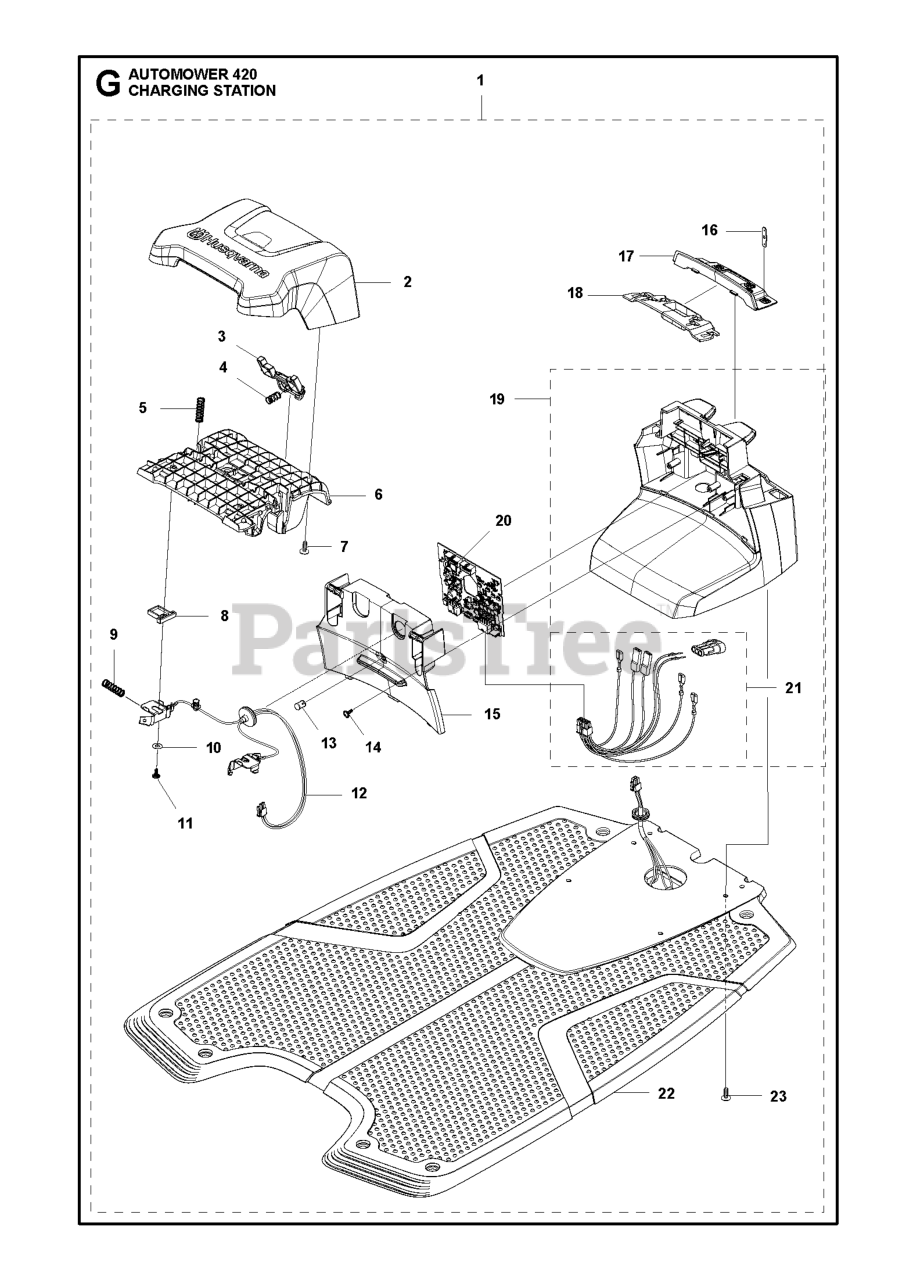

420 - Husqvarna Automower Robotic Lawn Mower (Original) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

CHARGING STATION Parts Diagram

  • Title

1

Husqvarna 593784702

NEEDS DESCRIPTION

Note: Charging Station

$538.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579448203

CAP CHARGING STATION

Note: Cap

$45.99

$

In Stock, only 1 left!

0

3

Husqvarna 579462402

BUTTON CHARGING STATION, RELEA

Note: Button

$8.49

$

Usually ships in 3-10 days

0

4

Husqvarna 574487001

SPRING STOP BUTTON

Note: Spring

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579458004

FRAME CHARGING STATION

Note: Frame

$29.99

$

Usually ships in 3-10 days

0

7

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

8

Husqvarna 579460502

NEEDS DESCRIPTION

Note: Distance

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 734113741

WASHER

Note: Washer

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

12

Husqvarna 585539502

CABLE ASSY CHARGING CONTACTS
(Superseded to 531242201)

Note: Loom Charging Contact

$59.99

$

Usually ships in 3-10 days

0

13

Husqvarna 590217201

LENS DIODE

Note: Lens

$8.49

$

Usually ships in 3-10 days

0

14

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0

15

Husqvarna 579459704

LID CHARGING STATION 320, ONE

Note: Lid

$35.99

$

Usually ships in 3-10 days

0

16

Husqvarna 580504101

TERMINAL TERMINAL CHARGING STA

Note: Terminal

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579459801

PAN CHARGING STATION 320, ONE

Note: Panel

$11.99

$

Usually ships in 3-10 days

0

18

Husqvarna 579459901

HOLDER CHARGING STATION

Note: Holder

$11.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588188801

HOUSING ASSY CHARGING STATION

Note: Housing KIT

$68.99

$

Usually ships in 3-10 days

0

20

Husqvarna 592894501

PRINTED CIRCUIT ASSY PCBA CS B

Note: For 2020, 2019 & 2018. PCBA Charging Station.

$

$

Not available

20

Husqvarna 589507802

PCBA CS BOARD

Note: For 2017 & 2016 models

$239.99

$

Usually ships in 3-10 days

0

21

Husqvarna 588478901

CABLE KIT GENERATOR BOARD

Note: Wiring CS

$

$

Not available

22

Husqvarna 590094001

BASE ASSY CHARGING STATION

Note: Charging Plate

$454.99

$

In Stock, only 1 left!

0

23

Husqvarna 575543314

SCREW 14MM

Note: Screw

$3.99

$

In Stock, Qty 14

0
