420 - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

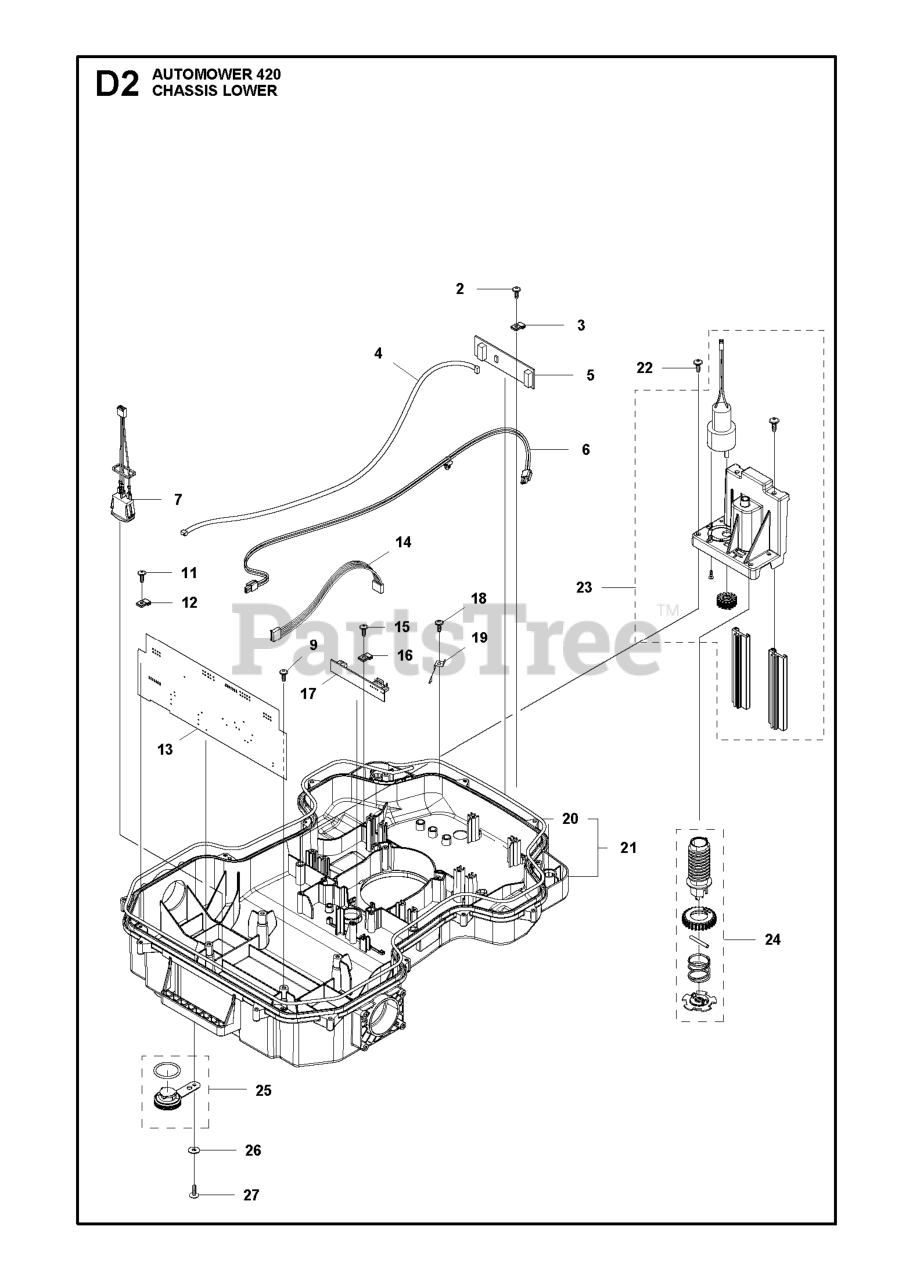

CHASSIS LOWER Parts Diagram

  • Title

1

Husqvarna 589585201

BATTERY LI-ION

Note: Battery

$227.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

3

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 579708201

LOOM LOOP SENSOR

Note: Loom

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588903001

PRINTED CIRCUIT ASSY LOOP SENS
(Superseded to 592852701)

Note: Printed Circuit ASSY

$87.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580370702

LOOM CHARGING LINK HIGH CHARGI

Note: Loom

$

$

Not available

7

Husqvarna 579708701

LOOM ON/ OFF

Note: Switch, On Off

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580609602

HOLDER BATTERY

Note: Holder

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 580682901

HOLDER TWIST LOCK

Note: Holder

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

12

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 592852601

PRINTED CIRCUIT ASSY PCBA MAIN

Note: Printed Circuit ASSY

$397.99

$

Usually ships in 3-10 days

0

14

Husqvarna 579708001

LOOM HEIGHT ADJUSTMENT

Note: Loom

$26.99

$

In Stock, only 1 left!

0

15

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

16

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579728502

PRINTED CIRCUIT ASSY PCBA CUTT

Note: Printed Circuit ASSY

$44.99

$

Usually ships in 3-10 days

0

18

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

19

Husqvarna 581556101

SPRING GUIDE HEIGHT ADJUSTMENT

Note: Spring

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 574874705

SEALING STRIP

Note: Sealing Strip (1 pcs, ¯5 mm)

$7.99

$

In Stock, Qty 7

0

21

Husqvarna 581621701

Note: Chassis KIT

$

$

Currently unavailable

22

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 18

0

23

Husqvarna 501068301

MOTOR ASSY HEIGHT MOTOR

Note: Motor ASSY

$145.99

$

Usually ships in 3-10 days

0

24

Husqvarna 581621601

SCREW KIT

Note: Screw KIT

$31.99

$

Usually ships in 3-10 days

0

25

Husqvarna 581621202

PLUG KIT

Note: Plug KIT

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 734113741

WASHER

Note: Washer

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0
