420 (UT-35016) - Homelite Snow Thrower Engine Parts Diagram

Snow Thrower

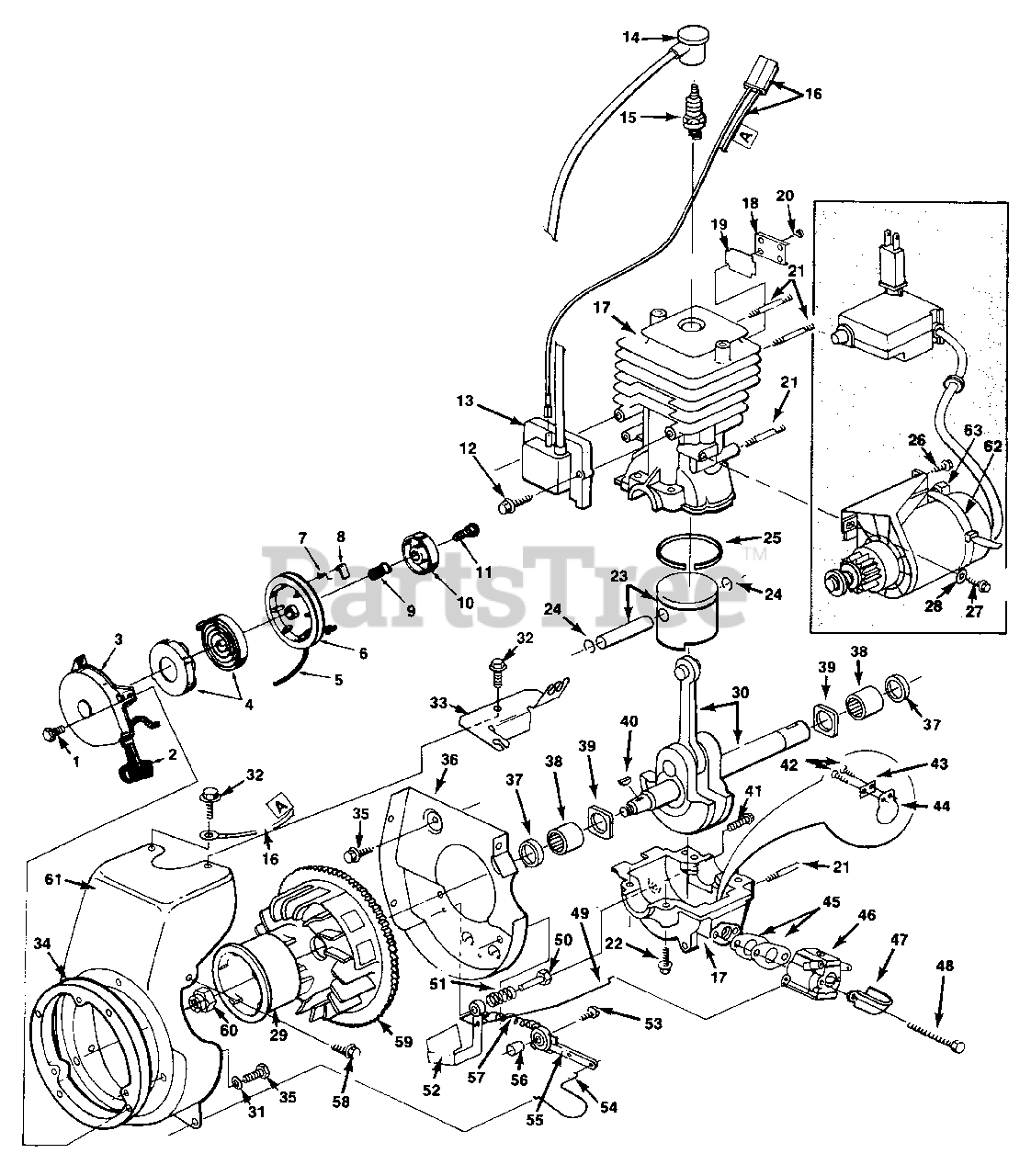

Engine Parts Diagram

  • Title

Homelite JA518835

REWIND STARTER ASSEMBLY-(Complete)

Note: Incl. 2 thru 11

$

$

Currently unavailable

1

Homelite JA409907

SCREW

$

$

Not available

2

Homelite JA546003

HANDLE ASSEMBLY

$

$

Currently unavailable

3

Homelite JA518833

HOUSING ASSEMBLY

$

$

Currently unavailable

4

Homelite JA500790

SPRING & KEEPER ASSEMBLY

$

$

Not available

5

Homelite JA569945

ROPE- 75"

$9.99

$

Usually ships in 3-7 days

0

6

Homelite JA535031

PULLEY

$

$

Currently unavailable

7

Homelite JA545999

SPRING-Dog

$

$

Currently unavailable

8

Homelite JA313663

DOG

$

$

Currently unavailable

9

Homelite JA546001

SPRING-Brake

$

$

Currently unavailable

10

Homelite JA546002

RETAINER

$

$

Currently unavailable

11

Homelite JA546000

SCREW

$

$

Currently unavailable

12

Homelite JA416908

SCREW-Thd. rolling
(Superseded to JA416911)

$

$

Currently unavailable

13

Homelite A97557

MODULE-Ignition
(Superseded to A97557A)

$

$

Currently unavailable

14

Homelite A33055

COVER-Spark

$

$

Not available

15

Homelite 96455

SPARK PLUG (CJ8Y)

$

$

Not available

16

Homelite A95577

LEAD-Electrical

$

$

Currently unavailable

17

Homelite A95542A

CYLINDER & CRANKCASE

Note: Incl. 18, 19, 20, 21, & 22

$

$

Currently unavailable

18

Homelite 96220

COVER-Cylinder

$

$

Not available

19

Homelite 96221

GASKET

$

$

Not available

20

Homelite 95922

SCREW-Thd. rolling
(Superseded to 660624001)

$

$

Not available

21

Homelite 97375

STUD-Thd. rolling

$

$

Not available

22

Homelite 88071

SCREW-Sems hex hd

$

$

Not available

23

Homelite A95598

PISTON & PIN ASSEMBLY

Note: Incl. 24 & 25

$

$

Currently unavailable

24

Homelite 64742

RING-Pin retaining

$

$

Not available

25

Homelite 95512

PISTON RING

$

$

Not available

26

Homelite JA403756

SCREW- 10-24 x 3/4

$

$

Currently unavailable

27

Homelite JA990764

SCREW

$

$

Currently unavailable

28

Homelite JA990763

WASHER

$1.49

$

Usually ships in 3-7 days

0

29

Homelite JA990794

HUB- Starter

$

$

Currently unavailable

30

Homelite A97725A

CRANKSHAFT ASSEMBLY

$

$

Currently unavailable

31

Homelite 84003

WASHER-Flat

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 82456

SCREW-Thd. forming

$

$

Not available

33

Homelite 97830

BRACKET

$7.49

$

Usually ships in 3-7 days

0

34

Homelite JA990759

ADAPTOR

$

$

Currently unavailable

35

Homelite 82459

SCREW-Thd. forming

$

$

Not available

36

Homelite 955001

PLATE-Fan housing

$

$

Not available

37

Homelite 95510

SEAL-Shaft

$

$

Not available

38

Homelite 76167S

BEARING-Needle

$

$

Currently unavailable

39

Homelite 95509A

WASHER-Thrust

$

$

Not available

40

Homelite 75078

KEY-Woodruff
(Superseded to UP07068)

$

$

Not available

41

Homelite 88066

SCREW-Sems hex hd 8-32 x 3/4
(Superseded to UP07656)

$

$

Not available

42

Homelite 82498

SCREW

$

$

Not available

43

Homelite 95594

STOP-Reed

$

$

Not available

44

Homelite 58775

REED VALVE

$

$

Not available

45

Homelite 95560B

SPACER-Carburetor

$

$

Currently unavailable

46

Homelite A95543B

CARBURETOR

$

$

Currently unavailable

47

Homelite 95561

SHIELD-Carburetor

$

$

Not available

48

Homelite 82437

SCREW-Thd. forming

$

$

Not available

49

Homelite 95536A

THROTTLE ROD

$

$

Currently unavailable

50

Homelite 974581

PIN-Pivot

$

$

Not available

51

Homelite 97031A

SPRING

$

$

Not available

52

Homelite 96007

VANE-Governor

$

$

Not available

53

Homelite 82414

SCREW-Tap pan head

$

$

Not available

54

Homelite 95554

SPRING-Torsion

$

$

Not available

55

Homelite 95523

LEVER-Throttle

$

$

Not available

56

Homelite 95507

SPACER-Gov. vane

$3.99

$

Usually ships in 3-7 days

0

57

Homelite 95513

SPRING-Extension

$7.99

$

Usually ships in 3-7 days

0

58

Homelite 82404

SCREW-Tap hex hd.

$

$

Not available

59

Homelite 95519A

ROTOR

$

$

Currently unavailable

60

Homelite 81104

NUT- 7/16-20 hex

$

$

Not available

61

Homelite 955011

HOUSING-Fan
(Superseded to A004491)

$

$

Not available

62

Homelite JA991118

STRAP-Tie

Note: 420E only

$

$

Currently unavailable

63

Homelite JA990758

NUT

$

$

Currently unavailable
