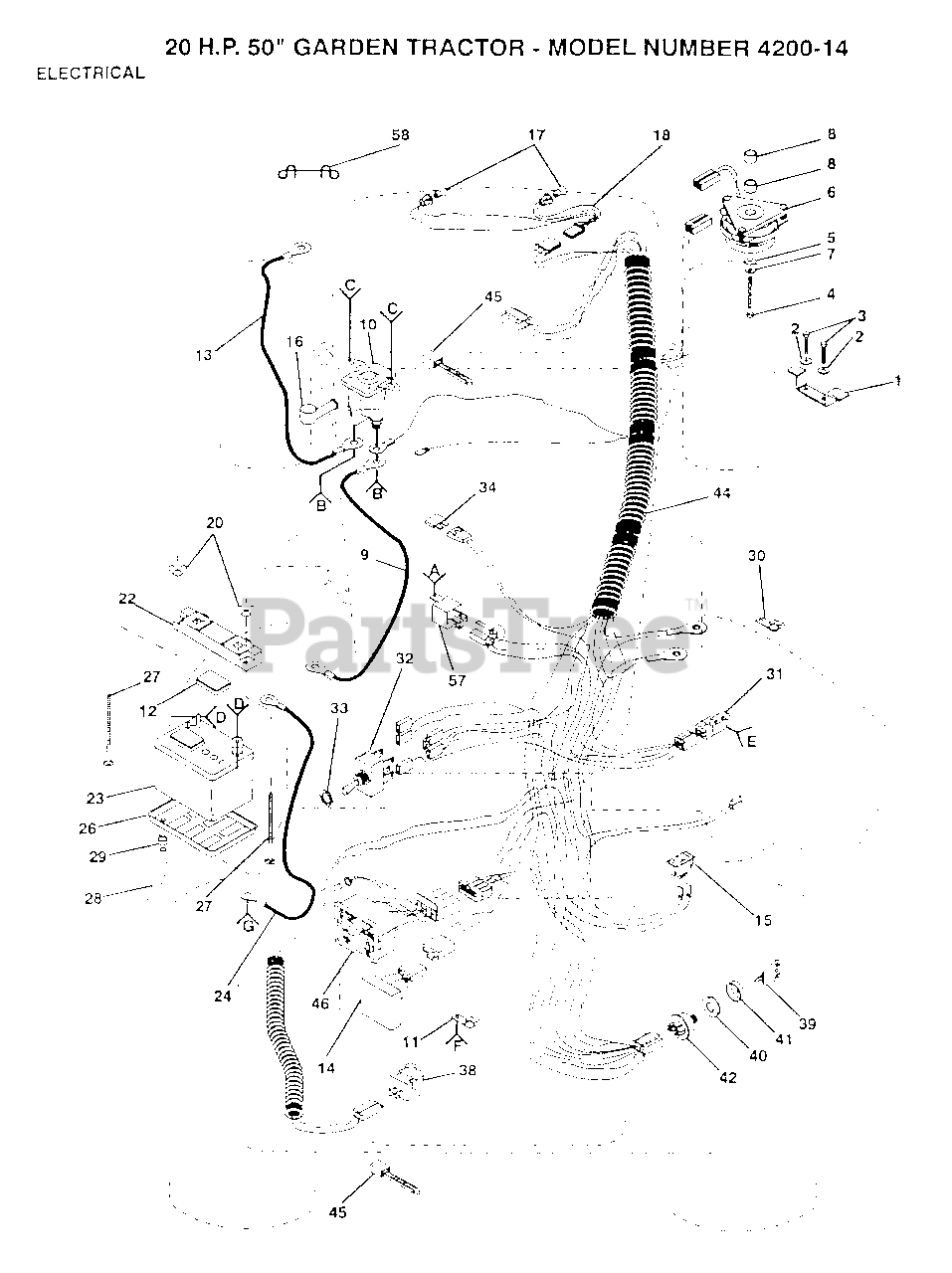

4200-14 - Electrolux/AYP Lawn Tractor (1991) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 110882X

STOP T

$

$

Not available

2

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 74780612

BOLT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 71130724

SUB= 871130724

$

$

Not available

5

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 127170X

SUB= 133501

$

$

Not available

7

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 128224

SPACER-CLUTCH
(Superseded to 582945401)

$11.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 4206J

CABLE-BATTERY T
(Superseded to 185464)

$

$

Not available

10

Electrolux/AYP 109081X

SUB= 146154

$

$

Not available

11

Electrolux/AYP 4171R

CLIP T

$

$

Not available

12

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

13

Electrolux/AYP 129458X

SUB= 129458

$

$

Not available

14

Electrolux/AYP 127385X

SENSOR LOW VOLT T

$

$

Not available

15

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$8.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 719J

SUB= 154336

$

$

Not available

17

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$4.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 127441X

SUB= 136850
(Superseded to 136850)

$

$

Not available

20

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

22

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

23

Electrolux/AYP 121537X

SUB= 123899X

$

$

Not available

24

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 100541K

SUB= 7697J

$

$

Not available

29

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 100207K

CLIP GTV
(Superseded to 532100207)

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

32

Electrolux/AYP 126018X

SUB= 532126018

$

$

Not available

33

Electrolux/AYP 4022J

HEX NUT T
(Superseded to 532004022)

$

$

Not available

34

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$10.99

$

In Stock, Qty 19

0

39

Electrolux/AYP 122147X

KEY
(Superseded to 532122147)

$

$

Not available

40

Electrolux/AYP 109788X

SUB= 124211X

$

$

Not available

41

Electrolux/AYP 109787X

SUB= 147626

$

$

Not available

42

Electrolux/AYP 4406R

SUB= STD365402

$

$

Not available

43

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

44

Electrolux/AYP 121166X

HARNESS

$

$

Not available

45

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 109555X

INDICATORLIGHTT
(Superseded to 532109555)

$

$

Not available

47

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

48

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

49

Electrolux/AYP 17190408

SCREW ST
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

51

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

53

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

54

Electrolux/AYP 71031008

SCREW
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$34.99

$

In Stock, only 1 left!

0

58

Electrolux/AYP 121465X

TIE WIRE
(Superseded to 532121465)

$

$

Not available

59

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 129286

NLA

$

$

Not available

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available
