4200-14 - Electrolux/AYP Lawn Tractor (1991) HARDWARE (50" MOWER) Parts Diagram

Lawn Tractor

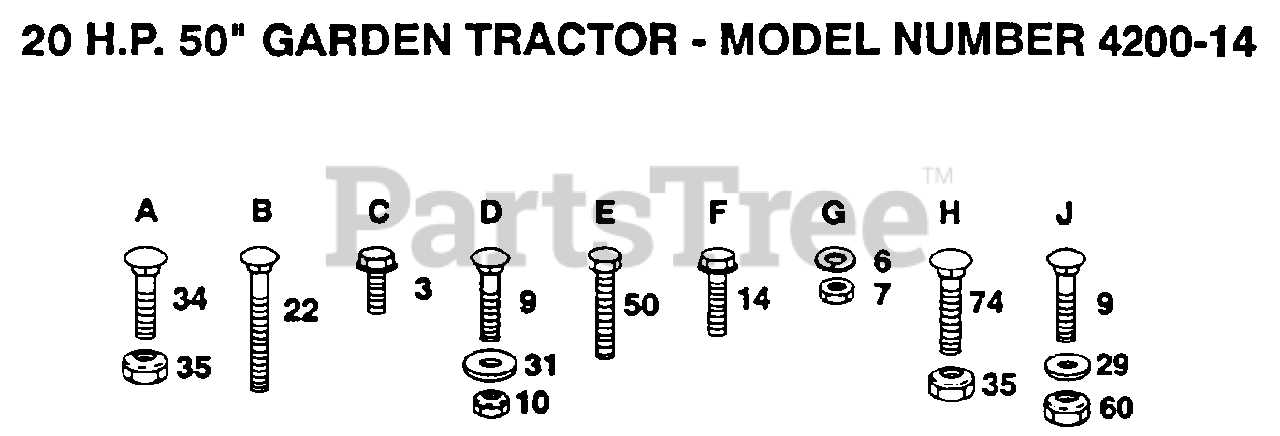

HARDWARE (50" MOWER) Parts Diagram

  • Title

3

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

14

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 72110522

BOLT
(Superseded to 872110522)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 72240606

BOLT
(Superseded to 872240606)

$2.99

$

In Stock, only 2 left!

0

35

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 74760622

BOLT
(Superseded to 874760622)

$4.99

$

Usually ships in 3-10 days

0

60

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

74

Electrolux/AYP 72240608

BOLT
(Superseded to 872240608)

$4.99

$

Usually ships in 3-10 days

0
