42013 - Troy-Bilt 21" Snow Thrower (SN: 420130200101 - 420131199999) Auger Assembly Parts Diagram

21" Snow Thrower

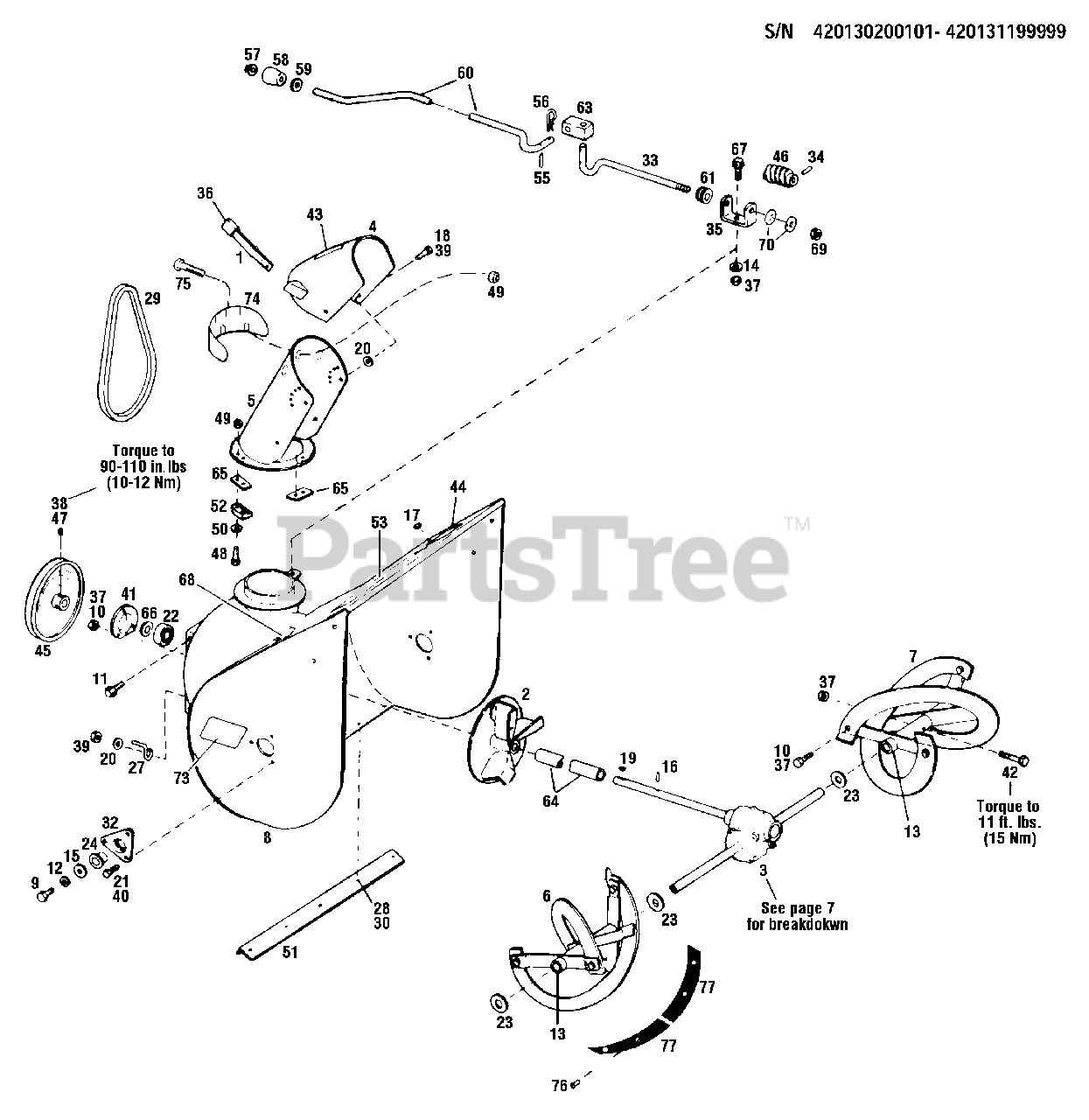

Auger Assembly Parts Diagram

  • Title

1

MTD 1723643

Adjusting Lever

$

$

Not available

2

MTD 1740462001

Impeller

$

$

Not available

3

MTD 1740471001

Gear Case Assembly

Note: (See page 7 for breakdown) -

$

$

Not available

4

Troy-Bilt 1759142

Cap

Note: (Incl Ref. 43)

$

$

Currently unavailable

5

MTD 1771723010

Chute

$

$

Not available

6

MTD 1752150001

Auger Blade, RH

Note: (Incl Refs. 76 and 77)

$

$

Not available

7

MTD 1752151001

Auger Blade, LH

Note: (Incl Refs. 76 and 77)

$

$

Not available

8

Troy-Bilt 1774219

Housing

Note: (Incl. Ref 44)

$

$

Currently unavailable

9

MTD 1100053

Boat, 1/2-13 x 3/4

$

$

Not available

10

MTD 1103195

Bolt 5/16-18 x 5/8

$

$

Not available

11

Troy-Bilt 1724491

Flange Lock Bolt 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1100245

Lockwasher, 1/2
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

13

MTD 1752148001

Auger Support

$

$

Not available

14

Troy-Bilt 1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1100257

Flat Washer, 1/2

$

$

Not available

16

Troy-Bilt 1185348

Roll Pin, 1/4 x 1-1/4
(Superseded to 915-0143)

$

$

Not available

17

MTD 1750969

Button Plug

$

$

Not available

18

Troy-Bilt 1100068

Bolt, 3/8-16 x 3/4
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

19

MTD 1200033

Hi-Pro Key, 3/16 x 3/4

$

$

Not available

20

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 1111599

Bolt, 1/4-20 x 5/8
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1185809

Ball Bearing
(Superseded to 941-3006)

$92.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1185816

Special Washer, 1-1/64 I.D.

$3.49

$

Usually ships in 3-6 days

0

24

MTD 1185846

Flange Bushing

$

$

Not available

27

MTD 1750703

Belt Guide

$

$

Not available

28

Troy-Bilt 1186391

Flange Locknut 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 1752194

V-Belt, 36"

$32.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 1712059

Carriage Bolt, 5/16-18 x 1/2
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

32

MTD 1720922

Support Bearing

$

$

Not available

33

MTD 1771769

Chute Control Shaft

$

$

Not available

34

Troy-Bilt 1724885

Drive Pin, 3/32 x 3/4

$

$

Not available

35

MTD 1735869

Gear Support

$

$

Not available

36

Troy-Bilt 1737499

Grip

$

$

Not available

37

Troy-Bilt 1732499

Toplock Nut, 5/16-18
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 1733185

Set Screw, 5/16-18 x 5/8

$

$

Not available

39

Troy-Bilt 1733398

TOplock Nut, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 1734398

Toplock Nut, 1/4-20
(Superseded to 912-0291)

$

$

Not available

41

MTD 1739488

Bearing Retainer

$

$

Not available

42

Troy-Bilt 1750515

Special Shear Bolt, 5/16-18

$7.99

$

In Stock, Qty 10

0

43

MTD 1750692

Chute Danger Decal

$

$

Not available

44

MTD 1750691

Housing Danger Decal

$

$

Not available

45

MTD 1752212

Auger Drive Pulley

$

$

Not available

46

MTD 1724870

Worm Gear, 6 Thread, LH

$

$

Not available

47

Troy-Bilt 1757032

Loctite 1242, .02 oz. Tube
(Superseded to GW-97092)

Note: Item not included with unit. Order separately

$17.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 1752461

Sems Screw, #10-24 x 7/8

$4.49

$

In Stock, Qty 12

0

49

Troy-Bilt 1772333

Toplock Nut, 10-24
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 9

0

50

Troy-Bilt 1103959

Flat Washer, #10

$4.49

$

In Stock, Qty 15

0

51

MTD 1752352001

Scraper Blade

$

$

Not available

52

Troy-Bilt 1724869

Hold-down Clip
(Superseded to 1724869099)

$10.99

$

In Stock, only 3 left!

0

53

Troy-Bilt 1757859

Logo Decal

$

$

Currently unavailable

55

MTD 1177625

Drive Pin, 1/8 x 3/4

$

$

Not available

56

Troy-Bilt 1717897

Hair Pin

$3.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 1724791

Push-on Cap
(Superseded to 926-0100)

$

$

Not available

58

Troy-Bilt 1735868

Knob
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 1890945

Flat Washer, 3/8
(Superseded to 936-0140)

$

$

Not available

60

MTD 1752306

Chute Control Crank

$

$

Not available

61

MTD 1714243

Nylon Bushing

$

$

Not available

63

Troy-Bilt 1714782

Swivel Block

$23.99

$

Usually ships in 3-6 days

0

64

MTD 1753356

Sleeve

$

$

Not available

65

Troy-Bilt 1752460

Shim

$4.49

$

In Stock, only 3 left!

0

66

MTD 1719271

Shim Washer, 1-1/4 I.D. x .020

$

$

Not available

67

Troy-Bilt 1186329

Flange Bolt 5/16-18 x 3/4
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

68

MTD 1901899

American Legend Decal

$

$

Not available

69

MTD 1185984

Top Lock Range Nut, 3/8-16

$

$

Not available

70

MTD 1737957

Nylon Washer

$

$

Not available

72

Drift Slicer Kit

Note: Item not included with unit. Order separately; Drift Slicer Kit- Includes two drift silcers and all attaching hardware. Order service kit number 10771

$

$

Not available

73

MTD 1757861

Housing Side Decal

$

$

Not available

74

MTD 1771274

Chute Deflector

$

$

Not available

75

MTD 1737940

Truss Head Bolt, 10-24

$

$

Not available

76

Troy-Bilt 1737650

Pop Rivet
(Superseded to 928-04004)

$6.99

$

In Stock, only 1 left!

0

77

Troy-Bilt 1771804

Auger Pad Ka

Note: (4 required per unit)

$

$

Not available

Troy-Bilt 10771

Service kit number

$

$

Currently unavailable

$

$

Not available
