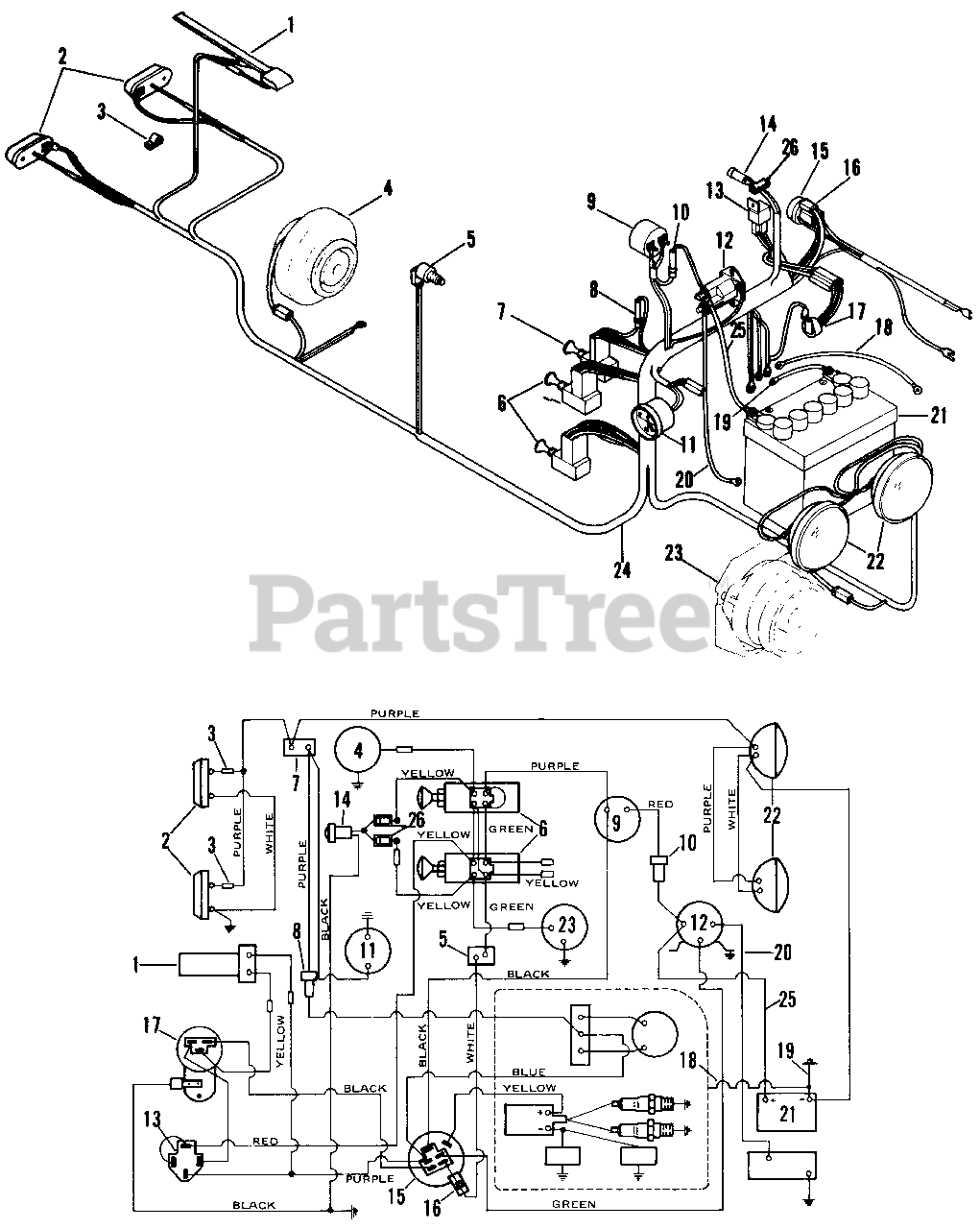

42038 (7173-H) - Gravely 18-H Lawn Tractor, 18hp Kohler, Hydro Drive ELECTRICAL Parts Diagram

18-H Lawn Tractor, 18hp Kohler, Hydro Drive

ELECTRICAL Parts Diagram

  • Title

1

Gravely 036121

SWITCH SEAT
(Superseded to 03171600)

$

$

Not available

2

Gravely 039488

TAIL LIGHT ASSY (2 PIECES)
(Superseded to 53128400)

$

$

Not available

Gravely 159920

SCR-MCH 10-24X.50 PHD
(Superseded to 06113000)

$2.99

$

Usually ships in 4-12 days

0

Gravely 036126

MALE DISCONNECT ADAPTER
(Superseded to 03005000)

$

$

Not available

Gravely 120217

WSHR,LOCK NO 10 SP
(Superseded to 21049900)

$

$

Not available

Gravely 120361

NUT-HEX 10-24 YWZC
(Superseded to 06536600)

$1.49

$

In Stock, only 3 left!

0

3

Gravely 036517

WIRE CLIP
(Superseded to 07510700)

$

$

Not available

4

Gravely 039446

ELECTRIC CLUTCH
(Superseded to 03199000)

$

$

Not available

5

Gravely 039493

SAFETY SWITCH
(Superseded to 03110700)

$43.99

$

In Stock, only 2 left!

0

Gravely 039636

BOOT
(Superseded to 07506300)

$

$

Not available

Gravely 039637

NUT-HEX .625-32 PL
(Superseded to 06507100)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 039496

SWITCH, PTO
(Superseded to 00355900)

$88.99

$

In Stock, only 4 left!

0

Gravely 036366

WSHR-FL-STL .382X.812X.023YWZC
(Superseded to 06436500)

$2.99

$

In Stock, only 2 left!

0

7

Gravely 036117

LIGHT SWITCH KIT
(Superseded to 51513800)

$

$

Not available

Gravely 036366

WSHR-FL-STL .382X.812X.023YWZC
(Superseded to 06436500)

$2.99

$

In Stock, only 2 left!

0

8

SAE 7 Amp Fuse

$

$

Not available

9

Gravely 039494

AMMETER
(Superseded to 03111700)

$

$

Not available

Gravely 041170

WSHR-LK-EXT.200X.402X.022YWZC
(Superseded to 06310400)

$2.99

$

Usually ships in 4-12 days

0

Gravely 453284

NUT 10-32 PL
(Superseded to 06502600)

$

$

Not available

10

SAE 30 Amp Fuse

$

$

Not available

11

Gravely 039506

HOUR METER
(Superseded to 03082600)

$

$

Not available

12

Gravely 039487

SOLENOID
(Superseded to 03057700)

$

$

Not available

Gravely 041170

WSHR-LK-EXT.200X.402X.022YWZC
(Superseded to 06310400)

$2.99

$

Usually ships in 4-12 days

0

Gravely 453284

NUT 10-32 PL
(Superseded to 06502600)

$

$

Not available

Gravely 138538

WSHR-LOCK INT .31 YWZC
(Superseded to 06310500)

$1.49

$

In Stock, Qty 8

0

Gravely 124920

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.99

$

In Stock, Qty 5

0

13

Gravely 039485

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$27.99

$

In Stock, Qty 20+

0

14

Gravely 039508

PTO INDICATOR LIGHT
(Superseded to 53108800)

$

$

Not available

Gravely 039638

LENS
(Superseded to 03004200)

$

$

Not available

Gravely 039369

CENTER ROCKSHAFT
(Superseded to 03105000)

$

$

Not available

Gravely 039640

LAMP SOCKET
(Superseded to 03004400)

$

$

Not available

Gravely 039641

SPEED NUT
(Superseded to 03027900)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 039492

KEY SWITCH ASSEMBLY
(Superseded to 53123700)

$62.99

$

In Stock, only 3 left!

0

Gravely 019667

WSHR-LK-INT .563X.040 YWZC
(Superseded to 06310900)

$2.99

$

In Stock, only 1 left!

0

Gravely 019666

NUT,JAM 9/16-24 IND83024
(Superseded to 20287700)

$3.49

$

In Stock, only 1 left!

0

16

Gravely 039484

DIODE ASSEMBLY
(Superseded to 03042700)

$41.99

$

Usually ships in 4-12 days

0

17

Gravely 039486

MODULE UPDATE KIT (REP 30429)
(Superseded to 53125500)

$

$

Not available

Gravely 159920

SCR-MCH 10-24X.50 PHD
(Superseded to 06113000)

$2.99

$

Usually ships in 4-12 days

0

Gravely 120217

WSHR,LOCK NO 10 SP
(Superseded to 21049900)

$

$

Not available

Gravely 120361

NUT-HEX 10-24 YWZC
(Superseded to 06536600)

$1.49

$

In Stock, only 3 left!

0

18

Gravely 036314

CABLE, GROUND 22.00"
(Superseded to 03111101)

$24.99

$

In Stock, only 2 left!

0

19

Gravely 039475

GROUND CABLE .25X6.50X.31
(Superseded to 03013600)

$

$

Not available

20

Gravely 041172

STARTER CABLE .25X.35.25X.31
(Superseded to 03076001)

$

$

Not available

21

Gravely 039642

G-BATTERY
(Superseded to 03066400)

$

$

Not available

22

Gravely 039069

HEAD LIGHT
(Superseded to 03114900)

$23.99

$

In Stock, only 2 left!

0

23

Gravely 039158

CLUTCH ASSEMBLY 1-1/8 BORE
(Superseded to 53114100)

$

$

Not available

24

Gravely 042706

WIRING HARNESS
(Superseded to 03086900)

$

$

Not available

25

Gravely 042696

STARTER CABLE 6.75"
(Superseded to 00145900)

$

$

Not available

26

Gravely 043188

PLUG, MOLDED DIODE

$

$

Not available
