42038 (7173-H) - Gravely 18-H Lawn Tractor, 18hp Kohler, Hydro Drive LIFT SYSTEM - HYDRAULIC Parts Diagram

18-H Lawn Tractor, 18hp Kohler, Hydro Drive

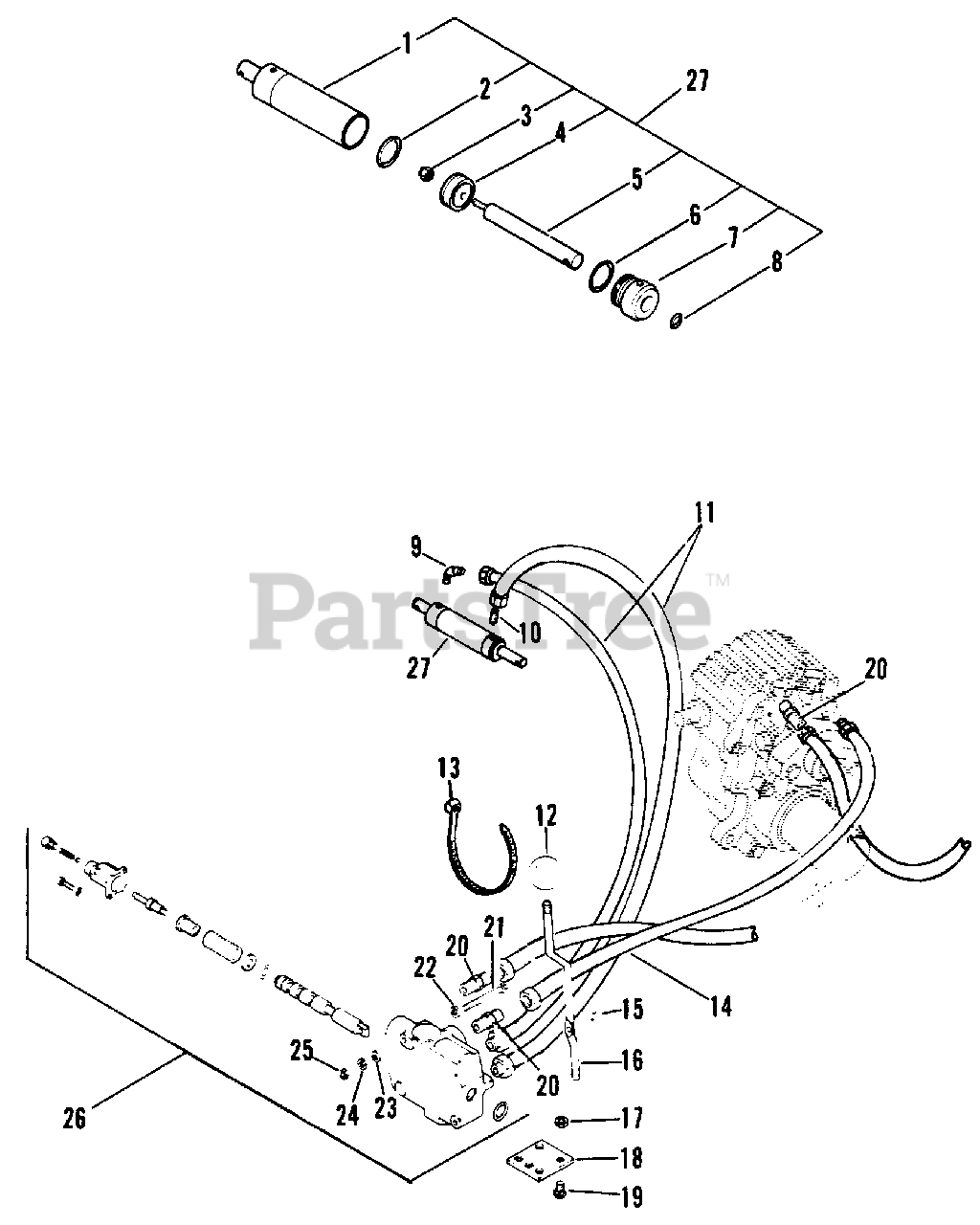

LIFT SYSTEM - HYDRAULIC Parts Diagram

  • Title

1

Gravely 042704

CYLINDER
(Superseded to 03077500)

$

$

Not available

2

Gravely 039675

CYLINDER SEAL KIT
(Superseded to 53112500)

$21.99

$

In Stock, only 2 left!

0

3

Gravely 412349

NUT,LK 3/8-24 HEX TYPE N
(Superseded to 21066100)

$

$

Not available

4

Gravely 042701

PISTON
(Superseded to 03077200)

$

$

Not available

5

Gravely 042702

ROD
(Superseded to 03077300)

$

$

Not available

6

Gravely 039679

CYLINDER SEAL KIT
(Superseded to 53112500)

$21.99

$

In Stock, only 2 left!

0

7

Gravely 042703

ROD CAP
(Superseded to 03077400)

$

$

Not available

8

Gravely 039681

CYLINDER SEAL KIT
(Superseded to 53112500)

$21.99

$

In Stock, only 2 left!

0

9

Gravely 039682

ADAPTER 45 9/16 TO 1/4
(Superseded to 03106800)

$

$

Not available

10

Gravely 039683

ADAPTER
(Superseded to 03163400)

$

$

Not available

11

Gravely 039469

HYDRAULIC HOSE PACKAGE
(Superseded to 53126200)

$138.99

$

Usually ships in 4-12 days

0

12

Gravely 039360

KNOB-STEERING LOCK
(Superseded to 07505200)

$22.99

$

In Stock, only 3 left!

0

13

Gravely 010629

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 039470

HYDRAULIC HOSE
(Superseded to 03008700)

$70.99

$

Usually ships in 4-12 days

0

15

Gravely 039684

PIN-GRV .250X.75 TP B PL
(Superseded to 05805300)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 039498

CONTROL ROD
(Superseded to 03118900)

$153.99

$

Usually ships in 4-12 days

0

17

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 039685

PIVOT BRACKET
(Superseded to 03040300)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 126211

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 039500

ADPT-PIPE (0503-6-6)
(Superseded to 07017500)

$12.99

$

In Stock, only 2 left!

0

21

Gravely 180046

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 422845

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 039686

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

24

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

25

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

26

Gravely 039481

VALVE
(Superseded to 53118600)

$

$

Not available

27

Gravely 042700

CYLINDER ASS'Y LIFT
(Superseded to 03077100)

$

$

Not available
