42047 - Troy-Bilt 26" Snow Thrower Chute & Auger Parts Diagram

26" Snow Thrower

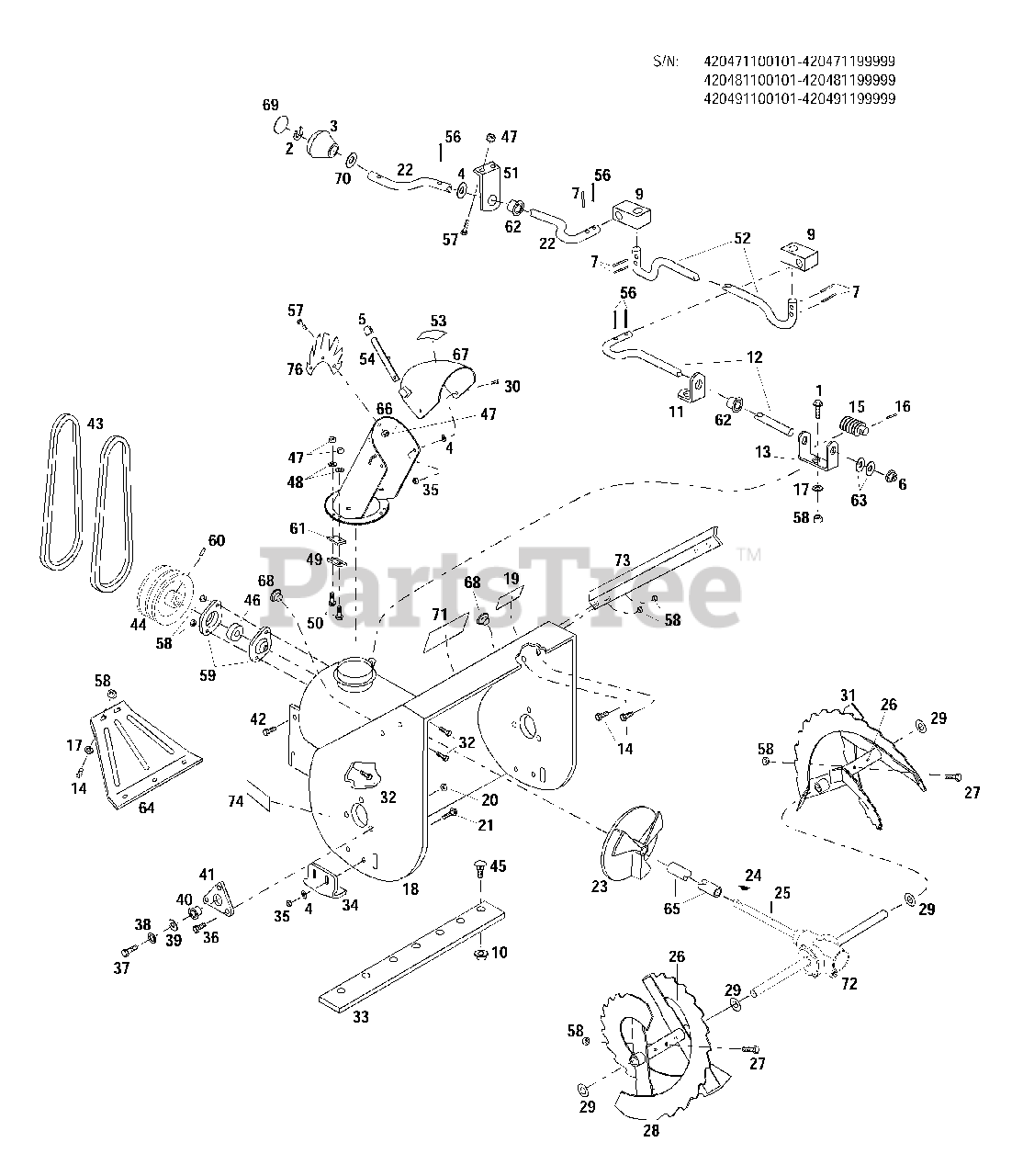

Chute & Auger Parts Diagram

  • Title

1

Troy-Bilt GW-1186329

Flange Bolt, 5/16-18 x 3/4
(Superseded to 710-04043)

$4.99

$

In Stock, only 2 left!

0

2

MTD GW-1185403

Retainer, 3/8

$

$

Not available

3

MTD GW-1757843

Knob

$

$

Not available

4

Troy-Bilt GW-1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 15

0

5

Troy-Bilt GW-1737499

Grip
(Superseded to 1737499)

$

$

Not available

6

MTD GW-1185984

Flange Nut, 3/8-16

$

$

Not available

7

MTD GW-1177625

Roll Pin, 1/8 x 3/4
(Superseded to 1177625)

$

$

Not available

9

Troy-Bilt GW-1714782

Swivel Block
(Superseded to 1714782)

$26.99

$

In Stock, only 4 left!

0

10

Troy-Bilt GW-1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

11

MTD GW-1754424

Crank Support

$

$

Not available

12

MTD GW-1756141

Chute Control Shaft

$

$

Not available

13

MTD GW-1735869

Gear Support

$

$

Not available

14

Troy-Bilt GW-1100044

Hex Head Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

MTD GW-1724870

Worm Gear

$

$

Not available

16

Troy-Bilt GW-1724885

Drive Pin, 3/32 x 3/4
(Superseded to 1724885)

$

$

Not available

17

Troy-Bilt GW-1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt GW-1774145

Collector Housing Assembly

Note: (Incl. Ref. 19); For Model 42047

$

$

Currently unavailable

MTD GW-1917463

Collector Housing Assembly

Note: (Incl. Ref. 19); For Model 42048

$

$

Not available

MTD GW-1917464

Collector Housing Assembly

Note: (Incl. Ref. 19); For Model 42049

$

$

Not available

19

MTD GW-1750691

Warning Decal

$

$

Not available

20

Troy-Bilt GW-1734398

Lock Nut, 1/4-20
(Superseded to 912-0291)

$

$

Not available

21

Troy-Bilt GW-1186126

Carriage Bolt, 3/8-16 x 3/4
(Superseded to 710-0389)

$4.99

$

Usually ships in 3-6 days

0

22

MTD GW-1757836

Chute Control Crank

$

$

Not available

23

MTD GW-1745799001

Impeller Fan

$

$

Not available

24

Troy-Bilt GW-1200033

Hy Pro Key, 3/16 x 3/4
(Superseded to 914-0126)

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt GW-1185348

Roll Pin, 1/4 x 1-1/4
(Superseded to 915-0143)

$

$

Not available

26

Troy-Bilt GW-1185803

Grease Fitting

$

$

Currently unavailable

27

Troy-Bilt GW-1735625

Shear Bolt Kit
(Superseded to 1735625)

Note: (Incl. one ea. shear bolt and Ref. 58 lock nut)

$10.99

$

In Stock, only 2 left!

0

28

MTD GW-1918439001

26" Auger, R.H.

Note: For Model 42047

$

$

Not available

Troy-Bilt GW-1918443001

30" Auger, R.H.
(Superseded to 1918443001)

Note: For Model 42048

$

$

Not available

MTD GW-1918447001

32" Auger, R.H.

Note: For Model 42049

$

$

Not available

29

Troy-Bilt GW-1185816

Special Washer, 1-1/64
(Superseded to 1185816)

$3.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt GW-1100068

Hex Head Cap Screw, 3/8-16 x 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 8

0

31

MTD GW-1918438001

26" Auger, L.H.

Note: For Model 42047

$

$

Not available

MTD GW-1918442001

30" Auger, L.H.

Note: For Model 42048

$

$

Not available

MTD GW-1918446001

32" Auger, L.H.

Note: For Model 42049

$

$

Not available

32

Troy-Bilt GW-1186098

Carriage Bolt, 5/16-18 x 3/4
(Superseded to 1186098)

$

$

Not available

33

Troy-Bilt GW-1758136001

Scraper Blade
(Superseded to 1758136001)

Note: For Model 42047

$

$

Not available

MTD GW-1916971001

Scraper Blade

Note: For Model 42048

$

$

Not available

MTD GW-1725184001

Scraper Blade

Note: For Model 42049

$

$

Not available

34

Troy-Bilt GW-1728567010

Skid Shoe
(Superseded to 1728567001)

$37.99

$

In Stock, only 1 left!

0

35

Troy-Bilt GW-1733398

Lock Nut, 3/8-16
(Superseded to 712-0375)

$4.99

$

In Stock, only 1 left!

0

36

Troy-Bilt GW-1111599

Hex Head Cap Screw, 1/4-20 x 5/8
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

37

MTD GW-1100053

Hex Head Cap Screw, 1/2-13 x 3/4

$

$

Not available

38

Troy-Bilt GW-1100245

Lock Washer, 1/2
(Superseded to 936-0921)

$4.99

$

In Stock, Qty 17

0

39

Troy-Bilt GW-1100257

Flat Washer, 1/2
(Superseded to 1100257)

$

$

Not available

40

MTD GW-1185846

Flange Bearing

$

$

Not available

41

MTD GW-1720922

Bearing Support

$

$

Not available

42

MTD GW-1185798

Flange Bolt, 3/8-16 x 1/2

$

$

Not available

43

Troy-Bilt GW-1772310

V-Belt
(Superseded to 1772310)

Note: For Model 42047

$35.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-1772310

V-Belt
(Superseded to 1772310)

Note: For Model 42048

$35.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-1917354

V-Belt
(Superseded to 954-0190)

Note: For Model 42049

$34.99

$

In Stock, only 2 left!

0

44

Troy-Bilt GW-1725282

Auger Sheave
(Superseded to 1725282)

Note: For Model 42047

$95.99

$

Usually ships in 3-6 days

0

MTD GW-1917403

Auger Sheave

Note: For Model 42048; For Model 42049

$

$

Not available

45

Troy-Bilt GW-1186097

Carriage Bolt, 5/16-18 x 5/8
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

46

MTD GW-1741640

Ball Bearing

$

$

Not available

47

Troy-Bilt GW-1772333

Lock Nut, #10-24
(Superseded to 712-0161)

$4.99

$

In Stock, Qty 16

0

48

Troy-Bilt GW-1103959

Flat Washer, #10
(Superseded to 1103959)

$4.99

$

In Stock, Qty 14

0

49

Troy-Bilt GW-1724869

Hold-Down Clip
(Superseded to 1724869099)

$11.99

$

In Stock, Qty 20+

0

50

Troy-Bilt GW-1752461

Sems Screw, #10-24 x 7/8
(Superseded to 1752461)

$4.99

$

In Stock, Qty 10

0

51

Troy-Bilt GW-1757840010

Chute Control Support
(Superseded to 1757840010)

$

$

Not available

52

MTD GW-1757824

Chute Crank Rod

$

$

Not available

53

MTD GW-1750692

Warning Decal

$

$

Not available

54

MTD GW-1723643001

Adjusting Lever

$

$

Not available

56

Troy-Bilt GW-1185147

Cotter Pin, 3/32 x 1/2
(Superseded to 914-0111)

$5.49

$

In Stock, Qty 20+

0

57

MTD GW-1737940

Truss-Head Bolt, #10-24 x 3/8

$

$

Not available

58

Troy-Bilt GW-1732499

Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

59

MTD GW-1185838

Flange Bearing

$

$

Not available

60

MTD GW-1737419

Set Screw, 5/16-18 x 3/4

$

$

Not available

61

MTD GW-1752460

Shim

$

$

Not available

62

MTD GW-1714243

Nylon Bushing

$

$

Not available

63

MTD GW-1737957

Nylon Washer

$

$

Not available

64

Troy-Bilt GW-1754572001

Housing Support

$

$

Currently unavailable

65

MTD GW-1753357

Sleeve

$

$

Not available

66

MTD GW-1771718010

Discharge Chute Assembly

$

$

Not available

67

MTD GW-1759140

Discharge Cap

Note: (Incl. Ref. 53)

$

$

Not available

68

MTD GW-1750969

Button Plug

$

$

Not available

69

MTD GW-1758058

Spun Silver Inlay

$

$

Not available

70

Troy-Bilt GW-1890945

Flat Washer, 3/8
(Superseded to 936-0140)

$

$

Not available

71

Troy-Bilt GW-1917455

Housing Logo Decal

$

$

Currently unavailable

72

MTD GW-1739793

Gear Case Assembly

Note: For Model 42047

$

$

Not available

Troy-Bilt GW-1916969

Gear Case Assembly

Note: For Model 42048

$

$

Currently unavailable

MTD GW-1917346

Gear Case Assembly

Note: For Model 42049

$

$

Not available

73

Troy-Bilt GW-10771

Drift Slicer (complete kit)

Note: Drift Slicer are an optional item for Model 42047.; For Models 42048 and 42049

$

$

Currently unavailable

74

MTD GW-1757860

Housing Side Decal

$

$

Not available

76

MTD GW-1771274

Chute Deflector

$

$

Not available

105

Troy-Bilt GW-1723479

Multi-Purpose Grease, 8 oz

Note: Item not included with unit. Order separately.

$

$

Currently unavailable

106

Troy-Bilt GW-97092

Loctite #242, .02 oz

Note: Item not included with unit. Order separately.

$

$

Not available
