42047 - Troy-Bilt 26" Snow Thrower Handles & Frame Parts Diagram

26" Snow Thrower

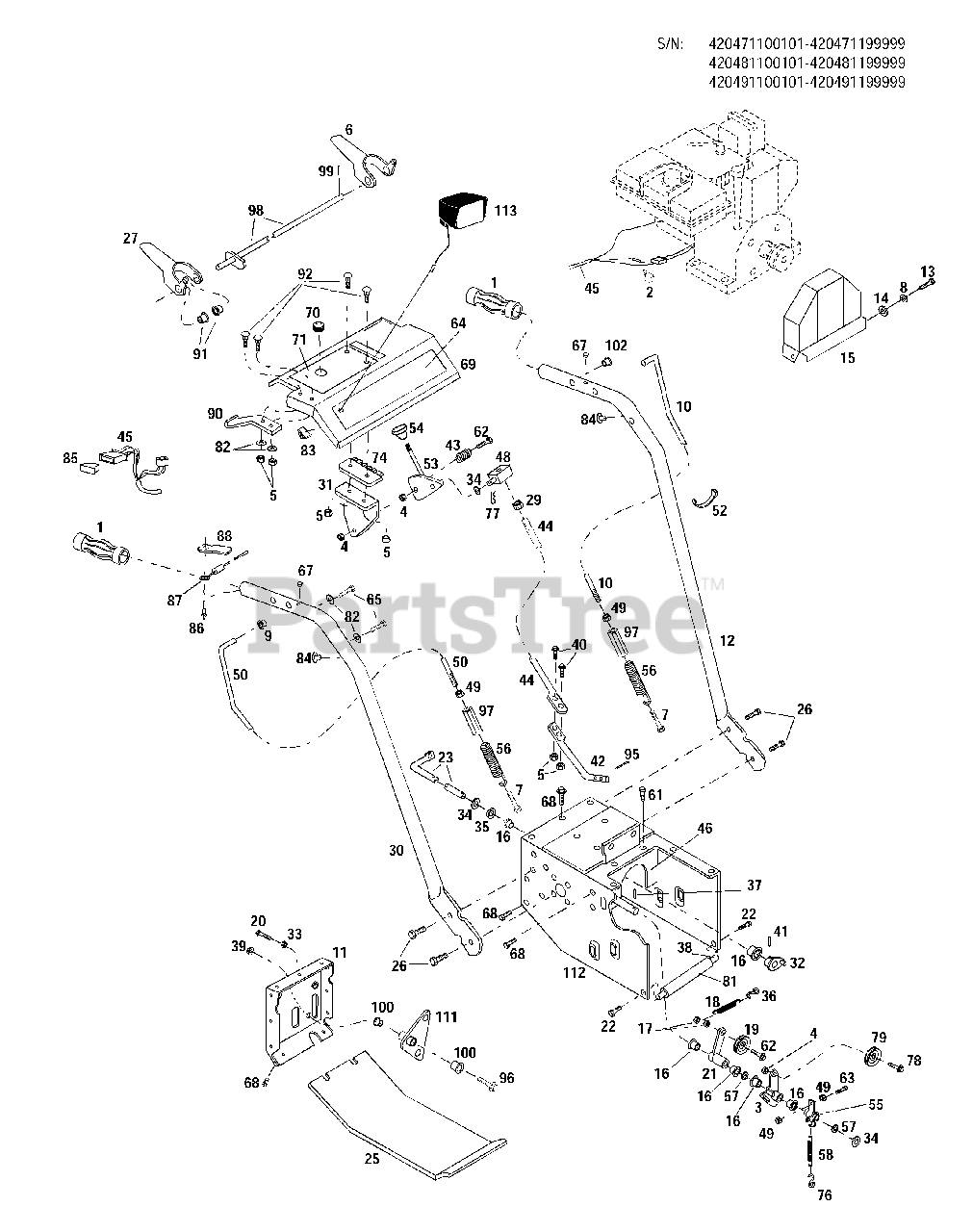

Handles & Frame Parts Diagram

  • Title

1

Troy-Bilt GW-1745576

Handle Grip
(Superseded to 720-04083)

$15.99

$

Usually ships in 3-6 days

0

2

MTD GW-9224

J-Clamp

$

$

Not available

3

MTD GW-1739937

Idler Arm

$

$

Not available

4

Troy-Bilt GW-1733398

Lock Nut, 3/8-16
(Superseded to 712-0375)

$4.99

$

In Stock, Qty 12

0

5

Troy-Bilt GW-1734398

Lock Nut, 1/4-20
(Superseded to 912-0291)

$

$

Not available

6

MTD GW-1764738

Left Control Handle

$

$

Not available

7

Troy-Bilt GW-1765534

Fillister-Head Bolt, 5/16-18 x 1
(Superseded to 1765534)

$

$

Not available

8

Troy-Bilt GW-1100242

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt GW-1728072

Push Nut
(Superseded to 926-0106)

$

$

Not available

10

MTD GW-1764741

Wheel Drive Clutch Rod

$

$

Not available

11

MTD GW-1760258010

Back Plate

$

$

Not available

12

MTD GW-1757831010

Left Handle Bar

$

$

Not available

13

Troy-Bilt GW-1100044

Hex Head Bolt, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt GW-1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$4.49

$

In Stock, Qty 8

0

15

MTD GW-1740030

Belt Cover

$

$

Not available

16

Troy-Bilt GW-1715716

Bushing
(Superseded to 1715716)

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt GW-1185506

Self-Locking Jam Nut, 3/8-16
(Superseded to 712-0375)

$4.99

$

In Stock, Qty 12

0

18

MTD GW-1740011

Extension Spring

$

$

Not available

19

MTD GW-1729440

Idler Pulley

$

$

Not available

20

MTD GW-1186334

Flange Bolt, 5/16-18 x 1-3/4

$

$

Not available

21

MTD GW-1739935

Idler Arm

$

$

Not available

22

Troy-Bilt GW-1186329

Flange Bolt, 5/16-18 x 3/4
(Superseded to 710-04043)

$4.99

$

In Stock, Qty 12

0

23

Troy-Bilt GW-1757841

Control Arm

$

$

Currently unavailable

25

MTD GW-1739838010

Bottom Cover

$

$

Not available

26

MTD GW-1186345

Flange Bolt, 3/8-16 x 3/4

$

$

Not available

27

MTD GW-1764739

Right Control Handle

$

$

Not available

29

Troy-Bilt GW-1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

Usually ships in 3-6 days

0

30

MTD GW-1757832010

Right Handle Bar

$

$

Not available

31

MTD GW-1760196

Control Bracket

$

$

Not available

32

MTD GW-1739932

Control Arm

$

$

Not available

33

Troy-Bilt GW-1186258

Jam Nut, 5/16-18
(Superseded to 712-3007)

$7.49

$

In Stock, Qty 20+

0

34

Troy-Bilt GW-1890234

Flat Washer, 1/2
(Superseded to GW-20546)

$

$

Not available

35

Troy-Bilt GW-1706782

Bowed Washer
(Superseded to 1706782)

$2.49

$

In Stock, only 1 left!

0

36

MTD GW-1740989

S-Hook

$

$

Not available

37

MTD GW-1100356

Cotter Pin, 3/32 x 1

$

$

Not available

38

MTD GW-1739756

Cross Member

$

$

Not available

39

Troy-Bilt GW-1186393

Flange Nut, 3/8-16
(Superseded to 1186393)

$3.49

$

In Stock, only 1 left!

0

40

Troy-Bilt GW-1100805

Cap Screw, 1/4-20 x 3/4
(Superseded to 710-3015)

$4.49

$

In Stock, Qty 20+

0

41

MTD GW-1743493

Drive Pin, 1/8 x 3/4

$

$

Not available

42

MTD GW-1760253

Lower Control Rod

$

$

Not available

43

MTD GW-1713167

Compression Spring

$

$

Not available

44

MTD GW-1760254

Upper Control Rod

$

$

Not available

45

MTD GW-1917371

Wiring Harness

$

$

Not available

46

MTD GW-1754272

Support Assembly

$

$

Not available

48

MTD GW-1727053

Pivot Block

$

$

Not available

49

Troy-Bilt GW-1186229

Hex Nut, 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 9

0

50

MTD GW-1764743

Auger Control Rod

$

$

Not available

52

Troy-Bilt GW-1735531

Plastic tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

MTD GW-1760255

Shift Control Arm

$

$

Not available

54

MTD GW-1757842

Knob
(Superseded to 1757842)

$

$

Not available

55

MTD GW-1739941

Brake Arm

$

$

Not available

56

MTD GW-1765535

Extension Spring

$

$

Not available

57

Troy-Bilt GW-1107385

Flat Washer, 1/2"
(Superseded to 936-0326)

$4.99

$

In Stock, Qty 5

0

58

MTD GW-1740990

Extension Spring

$

$

Not available

61

MTD GW-1186327

Flange Bolt, 5/16-18 x 1/2

$

$

Not available

62

Troy-Bilt GW-1100086

Hex Head Bolt, 3/8-16 x 1-3/4
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

63

MTD GW-1772011

Hex Head Cap Bolt, 1/4-20 x 1

$

$

Not available

64

MTD GW-1917458

Logo Decal

Note: For Model 42047

$

$

Not available

MTD GW-1917459

Logo Decal

Note: For Model 42048

$

$

Not available

Troy-Bilt GW-1917460

Logo Decal

Note: For Model 42049

$

$

Currently unavailable

65

Troy-Bilt GW-1754128

Thread-Forming Bolt, 1/4-20 x 5/8
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

67

MTD GW-1750796

Wear Button

$

$

Not available

68

Troy-Bilt GW-1724491

Thread-Forming Bolt, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

69

MTD GW-1918476

Console

Note: (Incl. Ref. 71)

$

$

Not available

70

MTD GW-1185585

Flip Grommet

$

$

Not available

71

MTD GW-1917457

Instructions Decal

$

$

Not available

74

Troy-Bilt GW-1764711

Shift Quadrant

$

$

Currently unavailable

76

Troy-Bilt GW-1742250

S-Hook

$

$

Currently unavailable

77

Troy-Bilt GW-1703011

Cotter Spring
(Superseded to 914-0145)

$5.49

$

In Stock, Qty 20+

0

78

Troy-Bilt GW-1982612

Hex Head Bolt, 3/8-16 x 2
(Superseded to 710-3096)

$8.49

$

In Stock, Qty 5

0

79

Troy-Bilt GW-1745499

Idler Pulley
(Superseded to 756-0225)

Note: For Model 42047

$

$

Not available

MTD GW-1916956

Idler Pulley

Note: For Model 42048; For Model 42049

$

$

Not available

81

MTD GW-1746607

Plastic Tubing

$

$

Not available

82

Troy-Bilt GW-1107381

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

83

MTD GW-1724879

Cord Clip

$

$

Not available

84

Troy-Bilt GW-1773905

Bushing
(Superseded to 1773905)

$3.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt GW-1748836

Connector Body

$

$

Currently unavailable

86

Troy-Bilt GW-1186424

Pop Rivet, 1/8

$

$

Currently unavailable

87

MTD GW-1773904

Resistor

$

$

Not available

88

MTD GW-1746516

Clamp

$

$

Not available

90

MTD GW-1764733

Flat Spring
(Superseded to 1764733)

$

$

Not available

91

MTD GW-1755779

Flange Bearing

$

$

Not available

92

Troy-Bilt GW-1115931

Round Head Bolt, 1/4-20 x 5/8
(Superseded to 710-0946)

$3.99

$

Usually ships in 3-6 days

0

95

Troy-Bilt GW-1100346

Cotter Pin, 3/32 x 3/4
(Superseded to 914-0507)

$4.99

$

In Stock, Qty 7

0

96

Troy-Bilt GW-1763219

Shoulder Bolt
(Superseded to 1763219)

$10.99

$

In Stock, only 1 left!

0

97

MTD GW-1764740

Adjusting Nut

$

$

Not available

98

MTD GW-1764737

Control Rod

$

$

Not available

99

Troy-Bilt GW-1737015

Roll Pin, 1/8 x 5/8
(Superseded to 915-0138)

$5.49

$

In Stock, only 2 left!

0

100

Troy-Bilt GW-1715538

Nyliner Flange Bushing
(Superseded to 1715538)

$

$

Not available

102

MTD GW-1714243

Flange Bearing

$

$

Not available

103

Troy-Bilt GW-1900706

Troy-Bilt Red Spray Paint, 13 oz.
(Superseded to 788-0638A)

Note: Item not included with unit. Order separately.

$25.99

$

Usually ships in 3-6 days

0

104

Troy-Bilt GW-1735222

Troy-Bilt Black Spray Paint, 13 oz
(Superseded to 788-0637A)

Note: Item not included with unit. Order separately.

$32.99

$

Usually ships in 3-6 days

0

111

MTD GW-1760218

Speed Control Arm

$

$

Not available

112

Frame

Note: (See "Drive")

$

$

Not available

113

Troy-Bilt GW-1918428

Light Kit

$

$

Currently unavailable
