42050 - Troy-Bilt 24" Snow Thrower Transmission Assembly Parts Diagram

24" Snow Thrower

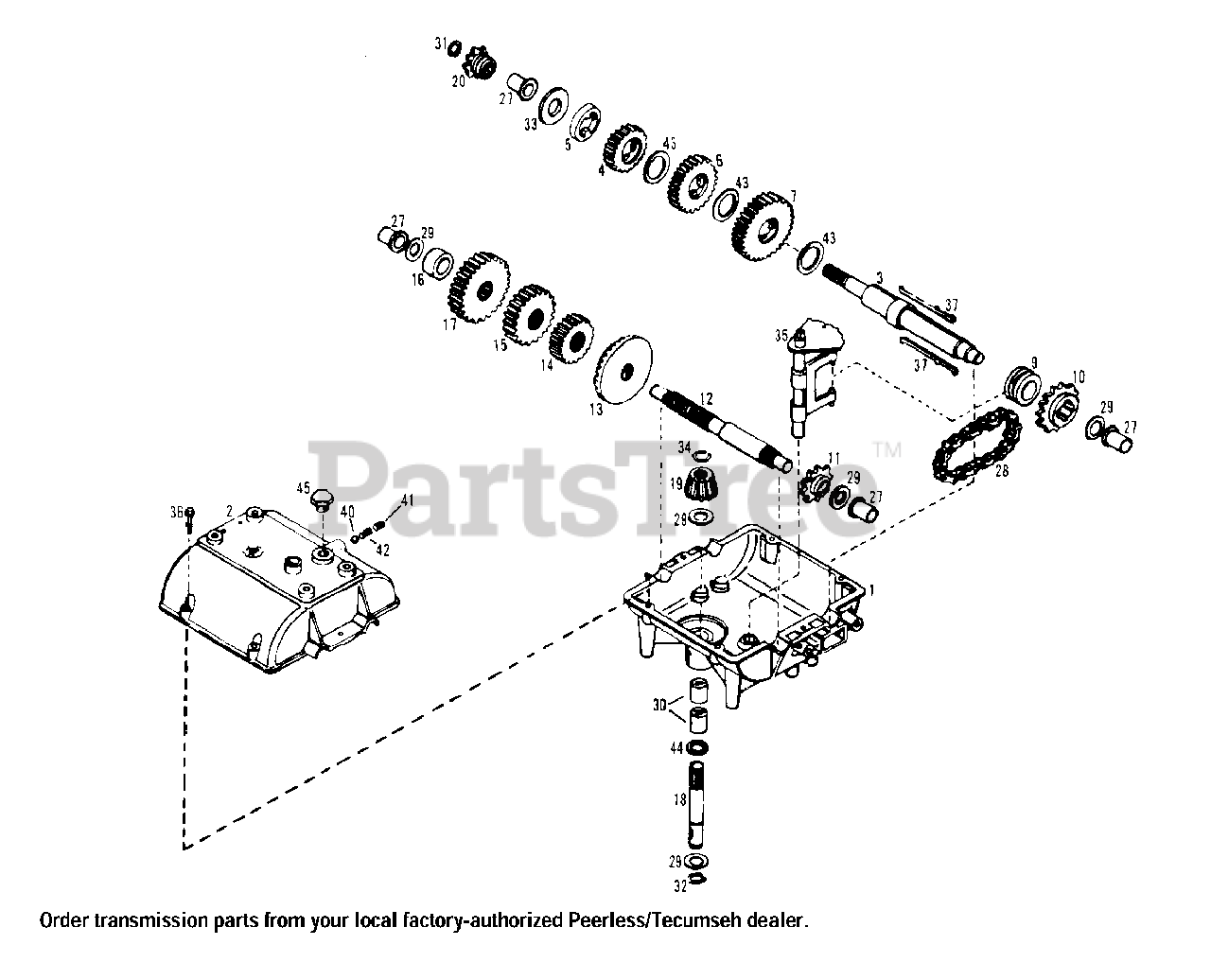

Transmission Assembly Parts Diagram

  • Title

1

Troy-Bilt 776061

Case, Transmission

$

$

Currently unavailable

2

Troy-Bilt 772083

Cover, Transmission

$

$

Currently unavailable

3

Troy-Bilt 776171

Output Shaft

$

$

Currently unavailable

4

778121 A

Spur Gear (20 Teeth)

$

$

Not available

5

Troy-Bilt 786072

Spacer, Keyed

$

$

Currently unavailable

6

Troy-Bilt 778124A

Spur Gear (30 Teeth)
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 778125

Spur Gear (35 Teeth)

$

$

Currently unavailable

9

Troy-Bilt 784266

Shift Collar

$

$

Currently unavailable

10

Troy-Bilt 786060

Sprocket (14 Teeth)

$

$

Currently unavailable

11

Troy-Bilt 786061

Sprocket (10 Teeth)

$

$

Currently unavailable

12

Troy-Bilt 776134

Countershaft

$

$

Currently unavailable

13

Troy-Bilt 778137A

Bevel Gear (42 Teeth)
(Superseded to TC-778137A)

$54.99

$

Usually ships in 3-12 days

0

14

Troy-Bilt 778136

Spur Gear (15 Teeth)

$

$

Currently unavailable

15

Troy-Bilt 778126A

Spur Gear (20 Teeth)

$

$

Currently unavailable

16

Troy-Bilt 786071

Spacer

$

$

Currently unavailable

17

Troy-Bilt 778129A

Spur Gear (30 Teeth)

$

$

Currently unavailable

18

Troy-Bilt 776135

Input Shaft

$

$

Currently unavailable

19

Troy-Bilt 778113A

Bevel Pinion, Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 786047

Sprocket (8 Teeth)

$

$

Currently unavailable

27

Troy-Bilt 780105A

Bushing, Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 11

0

28

Troy-Bilt 786062

Chain, Roller (No. 41 Chain, 22 Links)

$

$

Currently unavailable

29

Troy-Bilt 780072

Thrust Washer
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 780086

Needle Bearing

$

$

Currently unavailable

31

Troy-Bilt 792072

Retaining Ring

$

$

Currently unavailable

32

Troy-Bilt 792035

Retaining Ring
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 14

0

33

Troy-Bilt 780109

Washer

$

$

Currently unavailable

34

Troy-Bilt 788040

Retaining Ring

$

$

Currently unavailable

35

Troy-Bilt 784270

Rod & Fork Assembly, Shift

$

$

Currently unavailable

36

Troy-Bilt 792073

Hex Flange Screw, Thread-Forming, 1/4-20 x 1-1/4

$

$

Currently unavailable

37

Troy-Bilt 792089A

Key

$

$

Currently unavailable

40

Troy-Bilt 792077

Ball, Steel, 5/16"

$

$

Currently unavailable

41

Troy-Bilt 792078

Setscrew, 3/8-16 x 3/8

$

$

Currently unavailable

42

Troy-Bilt 792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 2 left!

0

43

Troy-Bilt 780108

Thrust Washer
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

44

Troy-Bilt 792001

"O" Ring
(Superseded to TC-792001)

$4.49

$

In Stock, Qty 11

0

45

Troy-Bilt 792074

Plug

$

$

Currently unavailable
