4208 (1690176) - Simplicity 36" Lawn Tractor, 8hp Engine, Wheel & Pulley (4208) Parts Diagram

36" Lawn Tractor, 8hp

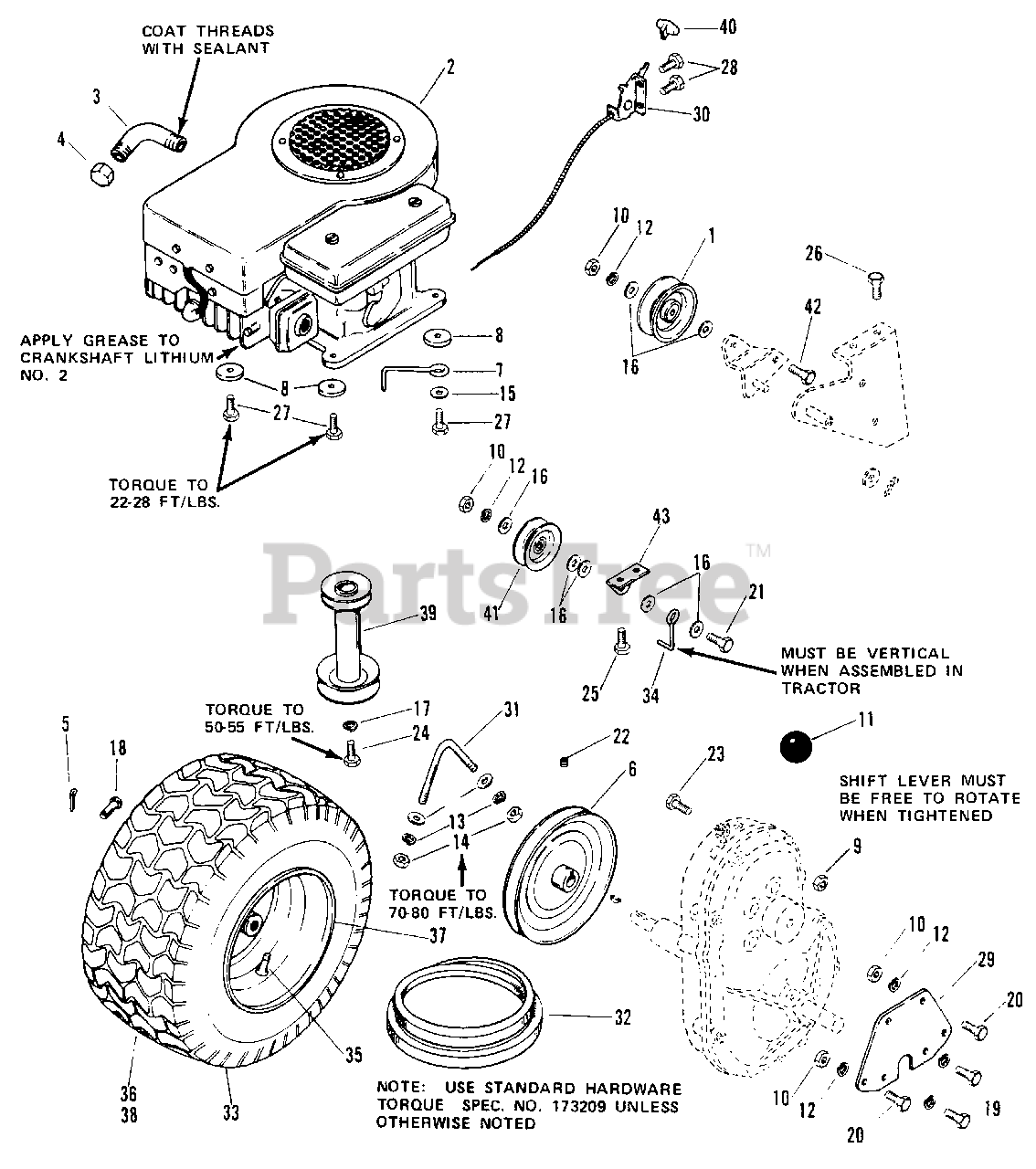

Engine, Wheel & Pulley (4208) Parts Diagram

  • Title

1

Simplicity 2106716

PULLEY, Idler

$

$

Not available

2

ENGINE, 8 HP, Briggs & Stratton, Model 191707, Type 5148-01, Synchro-Balanced

$

$

Not available

3

Simplicity 1658032SM

PIPE, Oil Drain

$21.99

$

Usually ships in 2-12 days

0

4

Simplicity 2801752

CAP, Pipe, 3/8

$

$

Not available

5

Simplicity 2118053SM

PlN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

6

Simplicity 2156119SM

PULLEY, Transmission

$112.99

$

Usually ships in 2-12 days

0

7

Simplicity 2172844SM

STOP, Belt

$26.99

$

Usually ships in 2-12 days

0

8

Simplicity 2172908

WASHER

$

$

Not available

9

Simplicity 2823358

LOCKNUT, Center, 1/4

$

$

Not available

10

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

11

Simplicity 1729255SM

KNOB, Ball

$12.99

$

In Stock, only 1 left!

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

17

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

18

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

19

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

20

Simplicity 2821965

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

21

Simplicity 2821969

CAPSCREW. Hex, 3/8-16 x 1-1/2

$

$

Not available

22

Simplicity 2824624

SCREW, Sq. Hd., Set. 3/8-24 x 3/8

$

$

Not available

23

Simplicity 2821960

CAPSCREW, Hex Hd. 1/4-20 x 1

$

$

Not available

24

Simplicity 2828038

CAPSCREW, Hex, Hd., 7/16-20 x 1-1/4

$

$

Not available

25

Simplicity 2829000

SCREW, Taptite, Washer Hd., 1/4-20 x 3/8

$

$

Not available

26

Simplicity 2830601

SCREW, Taptite, Hex Washer, 5/16-18 x 5/8

$

$

Not available

27

Simplicity 2830603

SCREW, Hex Taptite, Washer Hd., 3/8-16 x 1-3/4

$

$

Not available

28

Simplicity 2825592SM

SCREW, Taptite, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

29

Simplicity 1653885

BRACKET, Support

$

$

Not available

30

Simplicity 1687058SM

THROTTLE, Control

$54.99

$

Usually ships in 2-12 days

0

31

Simplicity 1655084

BOLT, Axle

$

$

Not available

32

Simplicity 2165048SM

V-BELT

$49.99

$

Usually ships in 2-12 days

0

33

Simplicity 1655278

WHEEL & TIRE, 18 x 8.50-8

$

$

Not available

34

Simplicity 1656054SM

STOP, Belt

$15.99

$

Usually ships in 2-12 days

0

35

Simplicity 2171270

VALVE STEM & CAP

$

$

Not available

36

Simplicity 1713170SM

TlRE, 18 x 8.50-8 (Goodyear)

$

$

Not available

37

Simplicity 1655277

WHEEL ASSEMBLY

$

$

Not available

38

Simplicity 1713170SM

TIRE, 18 x 8.50-8 (Carlisle)

$

$

Not available

39

Simplicity 1657118SM

PULLEY, Engine

$164.99

$

Usually ships in 2-12 days

0

40

Simplicity 1656099SM

KNOB, Throttle
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0

41

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

42

Simplicity 2828726

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

43

Simplicity 1655144

BRACKET, Idler

$

$

Not available
