4208 (1690208) - Simplicity 36" Lawn Tractor, 8hp Clutch & Brake Control (4208) Parts Diagram

36" Lawn Tractor, 8hp

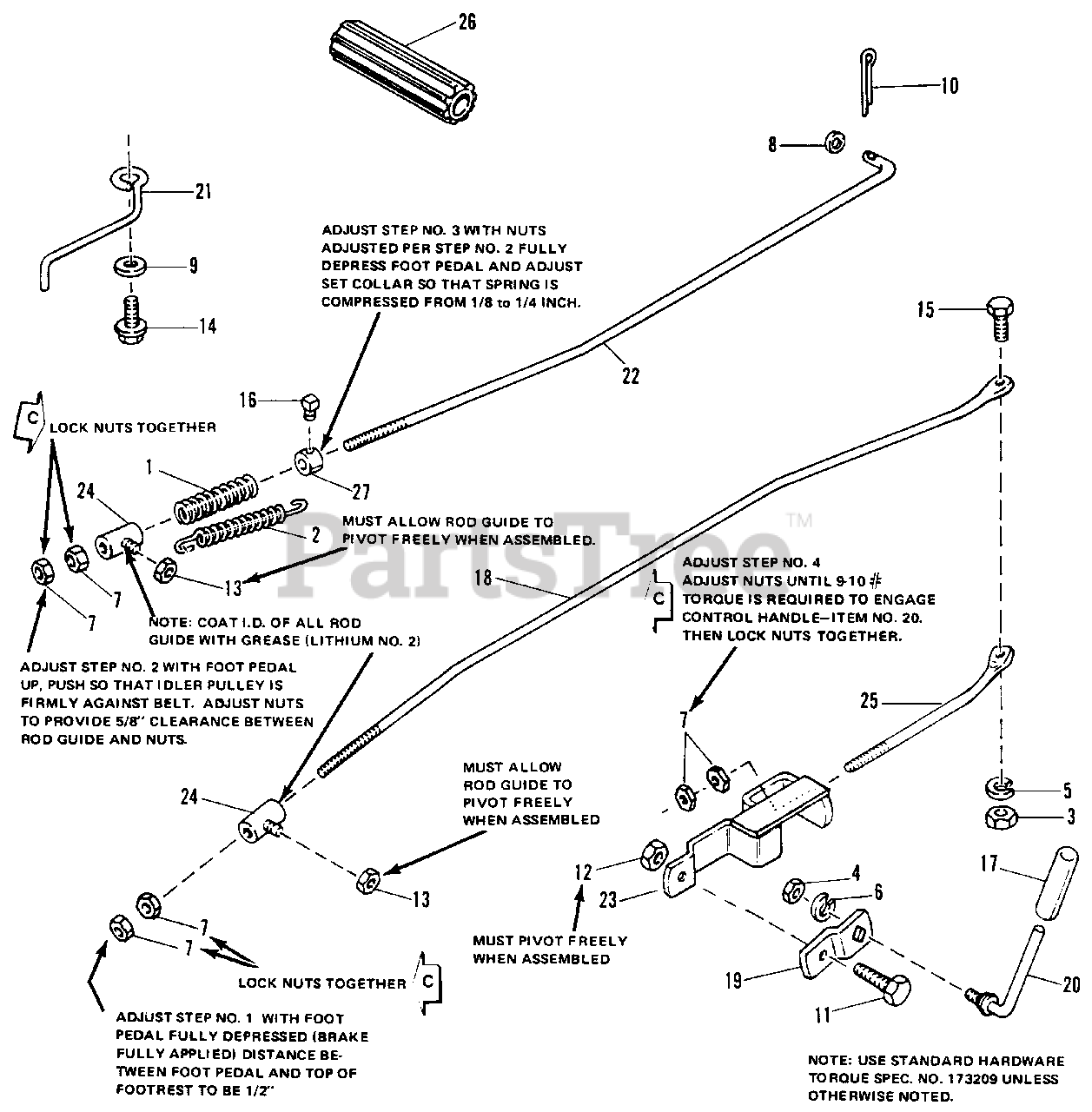

Clutch & Brake Control (4208) Parts Diagram

  • Title

1

Simplicity 2157041SM

SPRING, Compression

$15.99

$

Usually ships in 2-12 days

0

2

Simplicity 2165068SM

SPRING, Return

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

4

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

5

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

9

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

10

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

11

Simplicity 923241

CAPSCREW, Hex Hd.,1/4-20 x 3/4

$

$

Not available

12

Simplicity 2823329

LOCKNUT, Hex, Full, 1/4-20

$

$

Not available

13

Simplicity 2823362

LOCKNUT, Hex, Full, 5/16-18

$

$

Not available

14

Simplicity 2825009

SCREW, Hex, Washer Hd., 5/16-18 x 7/8

$

$

Not available

15

Simplicity 2827340

CAPSCREW, Hex, 1/4-20 x 3/4

$

$

Not available

16

Simplicity 2828804

SCREW, Sq. Hd., Cup Pt. 1/4-20 x 3/8

$

$

Not available

17

Simplicity 1651820SM

GRIP
(Superseded to 5023198SM)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1654156

ROD, Brake

$

$

Not available

19

Simplicity 1654891

ARM, Pivot

$

$

Not available

20

Simplicity 1654893

HANDLE, Control

$

$

Not available

21

Simplicity 1656658

STOP, Belt

$

$

Not available

22

Simplicity 1655270

ROD, Clutch

$

$

Not available

23

Simplicity 1656655

ASSEMBLY

$

$

Not available

24

Simplicity 1655596

GUIDE ASSEMBLY, ROD

$

$

Not available

25

Simplicity 1655597

ROD

$

$

Not available

26

Simplicity 1656312

COVER, Pedal

$

$

Not available

27

Simplicity 1729276SM

COLLAR, Set

$

$

Not available
