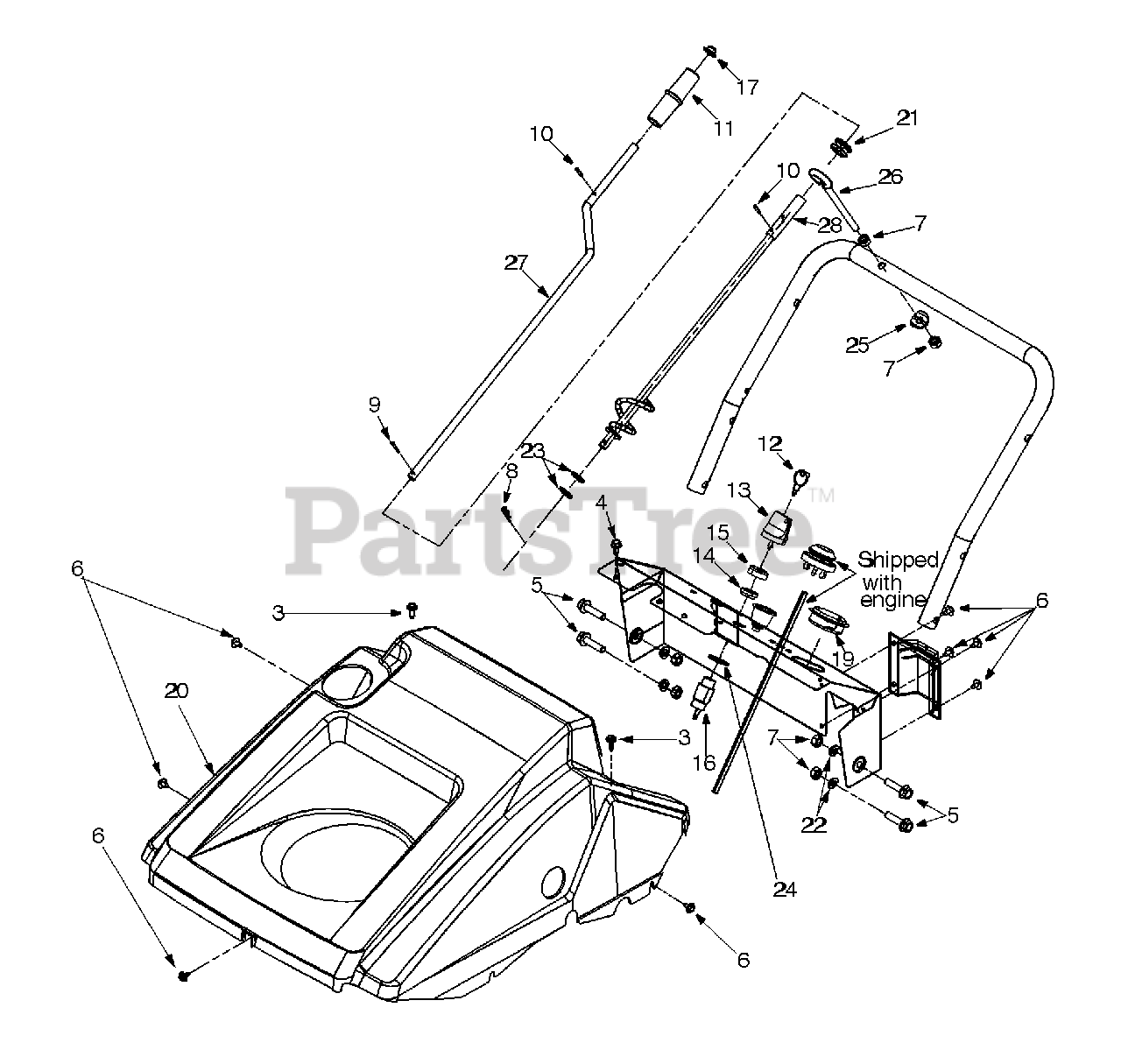

421 R (31A-152-100) - Cub Cadet 21" Snow Thrower (2000) Controls & Shroud Parts Diagram

21" Snow Thrower

Controls & Shroud Parts Diagram

  • Title

?1

Cub Cadet 684-0054

Dash: 21" Mitten Panel Assy.

$

$

Not available

?2

Cub Cadet 684-0126

Chute Crank Assembly
(Superseded to 684-0126-0637)

Variations

Cub Cadet 684-0126-0637

CRANK-CHUTE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-1003

Special Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1005

B Screw 1/4-14 x 0.5"
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1090

Hex Flange Screw

$3.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1268

Special Screw

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-3010

Hex Nut: 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0507

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 715-0138

Roll Pin
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 6

0

12

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

13

Cub Cadet 725-1341B

Ignition Key w/o Logo

$9.99

$

In Stock, only 3 left!

0

14

Cub Cadet 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

15

Cub Cadet 725-1347

Ignition Switch Cap

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 725-1425

Switch: Key Recoil Start
(Superseded to 925-1425)

$33.99

$

In Stock, only 1 left!

0

17

Cub Cadet 726-0100

Push Cap

$3.99

$

In Stock, Qty 8

0

?18

Cub Cadet 731-1089A

Choke Cover

$

$

Not available

19

Cub Cadet 731-1133B

Cap
(Superseded to 731-1133C)

$

$

Not available

20

Cub Cadet 731-2109

Engine Shroud: Beige

$

$

Not available

21

Cub Cadet 735-0234

Rubber Grommet

$4.99

$

In Stock, only 3 left!

0

22

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0185

Flat Washer

$3.49

$

In Stock, Qty 17

0

24

Cub Cadet 736-0225

Internal Lock Washer

$3.99

$

In Stock, Qty 11

0

25

Cub Cadet 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

26

Cub Cadet 747-0697

Eye Bolt

$7.99

$

In Stock, only 1 left!

0

27

Cub Cadet 747-0737

Chute Crank: Upper
(Superseded to 747-0737-0637)

Variations

Cub Cadet 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0
