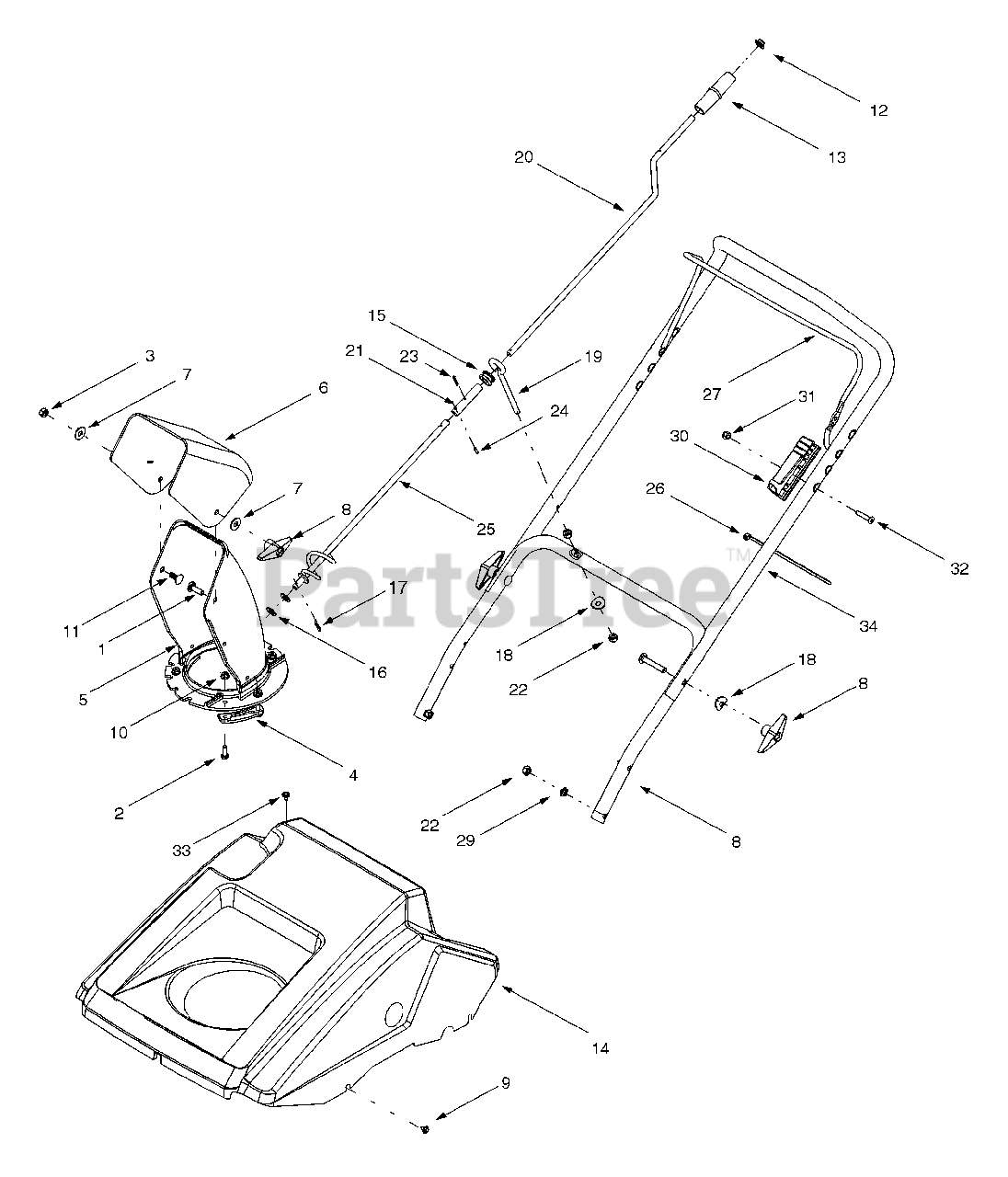

421 R (31A-152-100) - Cub Cadet 21" Snow Thrower (2002) Handle Assembly & Shroud Parts Diagram

21" Snow Thrower

Handle Assembly & Shroud Parts Diagram

  • Title

1

Cub Cadet 710-0276

Splined Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x.75

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3068

Hex Lock Nut, 5/16-18
(Superseded to 912-3009)

$

$

Not available

4

Cub Cadet 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 731-0915B

Lower Chute, 5.0
(Superseded to 731-0915C)

$

$

Not available

6

Cub Cadet 731-0921

Upper Chute, 5.0
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

7

Cub Cadet 736-0159

Washer, .349 x .879 x .063

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 720-0284

Wingnut Knob, 5/16-18

$6.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1268

Screw, #10-16 x .375

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 726-0100

Push Cap, 3/8

$3.99

$

In Stock, Qty 7

0

13

Cub Cadet 720-0201A

Knob, 1.0 x 3.2

$10.99

$

In Stock, Qty 6

0

14

Cub Cadet 731-2109A

Shroud, Beige

$

$

Not available

15

Cub Cadet 735-0234

Rubber Grommet, .44 x .94 x .50

$4.99

$

In Stock, only 3 left!

0

16

Cub Cadet 736-0185

Flat Washer, .375 x .738 x .063

$3.49

$

In Stock, Qty 16

0

17

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.12

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0451

Saddle Washer, .320 x .93

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 747-0697

Eyebolt, .70

$7.99

$

In Stock, only 1 left!

0

20

Cub Cadet 747-0737

Upper Chute Crank
(Superseded to 747-0737-0637)

Variations

Cub Cadet 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 750-0785

Spacer, .382 x .50 x 1.12
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 715-0138

Rolled Pin, 1/8 x .63
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

25

Cub Cadet 684-0126

Chute Crank Assembly
(Superseded to 684-0126-0637)

Variations

Cub Cadet 684-0126-0637

CRANK-CHUTE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

27

Cub Cadet 747-0956

Auger Bail (Control Handle), Gullwing-style

Variations

Cub Cadet 747-0956-0637

Auger Drive Bail, 2 Holes - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

Cub Cadet 747-0956-0638

Auger Drive Bail, 2 Holes - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

?28

Cub Cadet 749-0796B

Lower Handle

Variations

Cub Cadet 749-0796B-0638

LOWER HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 746-0883

Control (Cable) Housing

$15.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0324

Nylon Hex Lock Nut, 1/4-20

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-1270

Machine Screw, 1/4-20 x 1.31

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

34

Cub Cadet 749-0711A

Upper Handle, Gullwing-style

Variations

Cub Cadet 749-0711A-0637

UPPER HANDLE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-0711A-0638

UPPER HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

Cub Cadet 720-0295

Foam Grip, 22"

Note: (Not included with handle)

$30.99

$

Usually ships in 3-6 days

0
