4212 G (1692095) - Simplicity 36" Lawn Tractor, 12.5hp Briggs & Stratton Peerless Model 930-039 Parts Diagram

36" Lawn Tractor, 12.5hp Briggs & Stratton

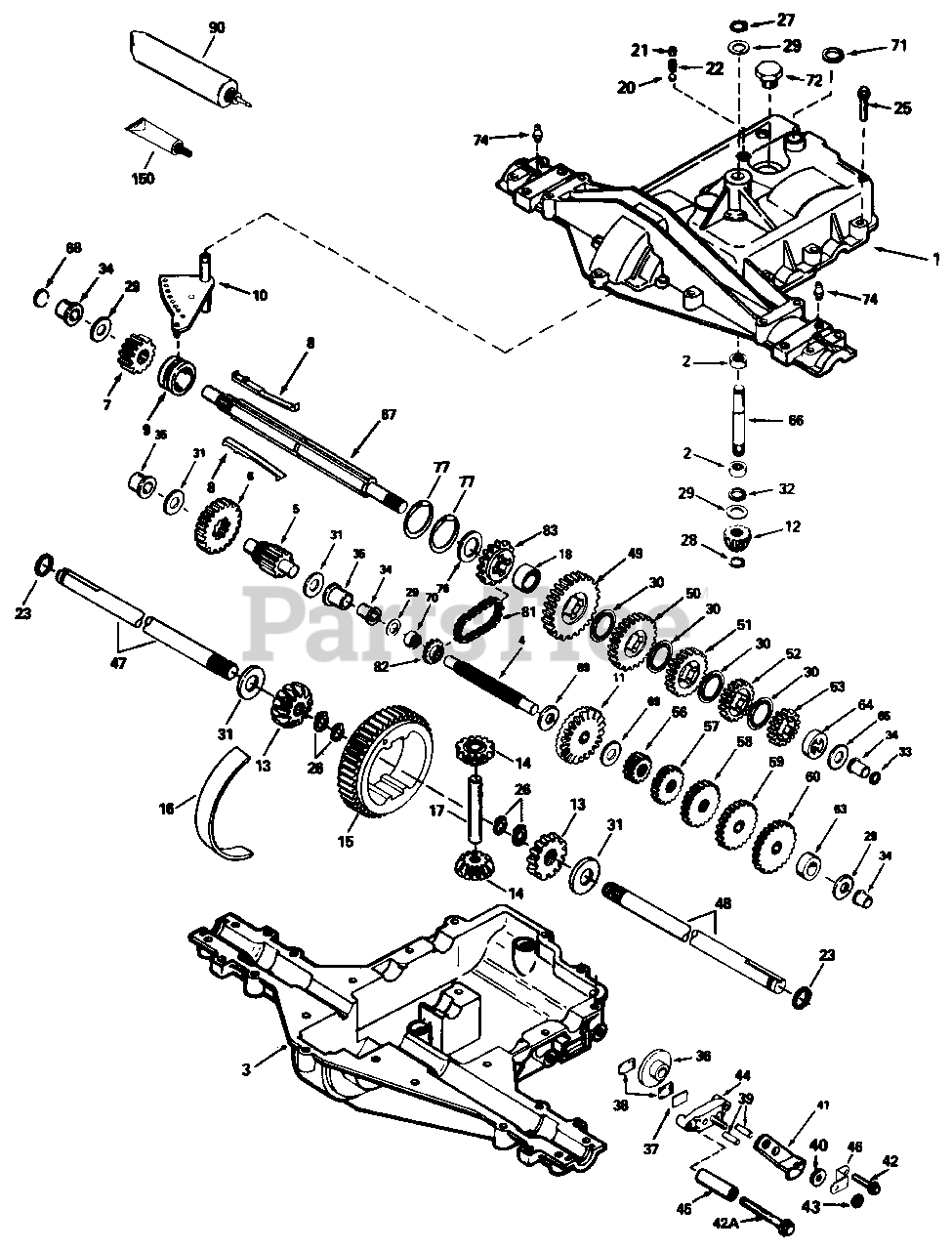

Peerless Model 930-039 Parts Diagram

  • Title

1

Simplicity 772107A

COVER, Transaxle

$

$

Not available

2

Simplicity 780086

BEARING, Needle

$

$

Not available

3

Simplicity 770102A

CASE, Transaxle

$

$

Not available

4

Simplicity 776260

SHAFT, Counter

$

$

Not available

5

Simplicity 776219

SHAFT & PINION ASSY., Output

$

$

Not available

6

Simplicity 778139

GEAR, Output

$

$

Not available

7

Simplicity 778136

GEAR, Spur (15 teeth)

$

$

Not available

8

Simplicity 792136

KEY, Shifter

$

$

Not available

9

Simplicity 784352

COLLAR, Shifter

$

$

Not available

10

Simplicity 784354

ROD & FORK ASSY., Shift

$

$

Not available

11

Simplicity 778229

GEAR, Bevel (42 teeth)

$

$

Not available

12

Simplicity 778113A

BEVELPINION, Input

$

$

Not available

13

Simplicity 778221

GEAR, Bevel

$

$

Not available

14

Simplicity 778068

GEAR, Bevel Pinion

$

$

Not available

15

Simplicity 778260

GEAR, Ring

$

$

Not available

16

Simplicity 786150

STRIP, Bearing

$

$

Not available

17

Simplicity 786139

PIN, Drive

$

$

Not available

18

Simplicity 786102

SPACER

$

$

Not available

20

Simplicity 792077

BALL, Steel (5/16" dia.)

$

$

Not available

21

Simplicity 792078

SCREW, Set, 3/8-16 x 3/8

$

$

Not available

22

Simplicity 792079

SPRING

$

$

Not available

23

Simplicity 788061

RING, Seal

$

$

Not available

25

Simplicity 792073

SCREW, Flanged Hex Hd., Threadforming, 1/4-20 x 1-1/4

$67.99

$

In Stock, only 2 left!

0

26

Simplicity 792125

RING, Retainer (Pkg. of 2)

$

$

Not available

27

Simplicity 792035

RING, Retainer

$

$

Not available

28

Simplicity 788040

RING, Retainer

$

$

Not available

29

Simplicity 780072

WASHER, Thrust

$

$

Not available

30

Simplicity 780108

WASHER, Thrust

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 780001

WASHER

$

$

Not available

32

Simplicity 792001

"O" RING

$

$

Not available

33

Simplicity 788051

SEAL, Square Cut

$

$

Not available

34

Simplicity 780105A

BUSHING, Flanged

$

$

Not available

35

Simplicity 780118A

BUSHING, Flanged

$

$

Not available

36

Simplicity 790003

DISK, Brake

$

$

Not available

37

Simplicity 790007

PLATE, Brake Pad

$

$

Not available

38

Simplicity 790006

PAD, Brake

$

$

Not available

39

Simplicity 786026

PIN, Dowel

$

$

Not available

40

Simplicity 792076

WASHER, Flat

$

$

Not available

41

Simplicity 790019

LEVER, Brake
(Superseded to 593432)

$143.99

$

In Stock, Qty 5

0

42

Simplicity 792073

SCREW, Flanged Hex Hd., Threadforming, 1/4-20 x 1-1/4

$67.99

$

In Stock, only 2 left!

0

42A

Simplicity 792085

SCREW, Flanged Hex Hd., Threadforming, 1/4-20 x 1-1/4

$

$

Not available

43

Simplicity 792075

NUT, Lock, 5/16-24

$

$

Not available

44

Simplicity 790025

HOLDER, Brake Pad

$27.99

$

Usually ships in 2-12 days

0

45

Simplicity 786066

SPACER

$

$

Not available

46

Simplicity 786086

BRACKET, Brake Lever

$

$

Not available

47

Simplicity 774927

AXLE (11-5/32" Long)

$

$

Not available

48

Simplicity 774733A

AXLE (16-27/32" Long)

$

$

Not available

49

Simplicity 778191

GEAR, Spur (37 teeth)

$

$

Not available

50

Simplicity 778124A

GEAR, Spur (30 teeth)

$

$

Not available

51

Simplicity 778123A

GEAR, Spur (25 teeth)

$

$

Not available

52

Simplicity 778122A

GEAR, Spur (22 teeth)

$

$

Not available

53

Simplicity 778209

GEAR, Spur (19 teeth)

$

$

Not available

56

Simplicity 778230

GEAR, Spur (12 teeth)

$

$

Not available

57

Simplicity 778126A

GEAR, Spur (20 teeth)

$

$

Not available

58

Simplicity 778127A

GEAR, Spur (25 teeth)

$

$

Not available

59

Simplicity 778128A

GEAR, Spur (28 teeth)

$

$

Not available

60

Simplicity 778163

GEAR, Spur (31 teeth)

$

$

Not available

63

Simplicity 786071

SPACER

$

$

Not available

64

Simplicity 786072

SPACER

$

$

Not available

65

Simplicity 780109

WASHER, Thrust

$

$

Not available

66

Simplicity 776135

SHAFT, Input

$

$

Not available

67

Simplicity 776315A

SHAFT, Brake (4-Keyed)

$

$

Not available

68

Simplicity 786116

DISK

$1.99

$

Usually ships in 2-12 days

0

69

Simplicity 780051

WASHER, Thrust

$23.99

$

Usually ships in 2-12 days

0

70

Simplicity 786118

SPACER

$

$

Not available

71

Simplicity 788069

SEAL, Square Cut

$

$

Not available

72

Simplicity 792074

PLUG, Hex Hd., 9/16-18 Thread

$

$

Not available

74

Simplicity 792137

FITTING, Lubrication

$

$

Not available

76

Simplicity 780090

WASHER, Thrust

$

$

Not available

77

Simplicity 788078A

RING, Retaining (Pkg. of 2)

$

$

Not available

81

Simplicity 786062A

CHAIN, Roller (No. 41 chain, 22 Links)

$

$

Not available

82

Simplicity 786061

SPROCKET (10 teeth)

$

$

Not available

83

Simplicity 786124

SPROCKET (14 teeth)

$

$

Not available

90

Simplicity 788067B

GREASE (32 oz. Bottle Bentonite grease)

$

$

Not available

150

Simplicity 510334

ADHESIVE (Loctite #515)

$

$

Not available
