42122 - Gravely Grass Bagger for Pro Series Mower PRO MOWER GRASS CATCHER Parts Diagram

Grass Bagger for Pro Series Mower

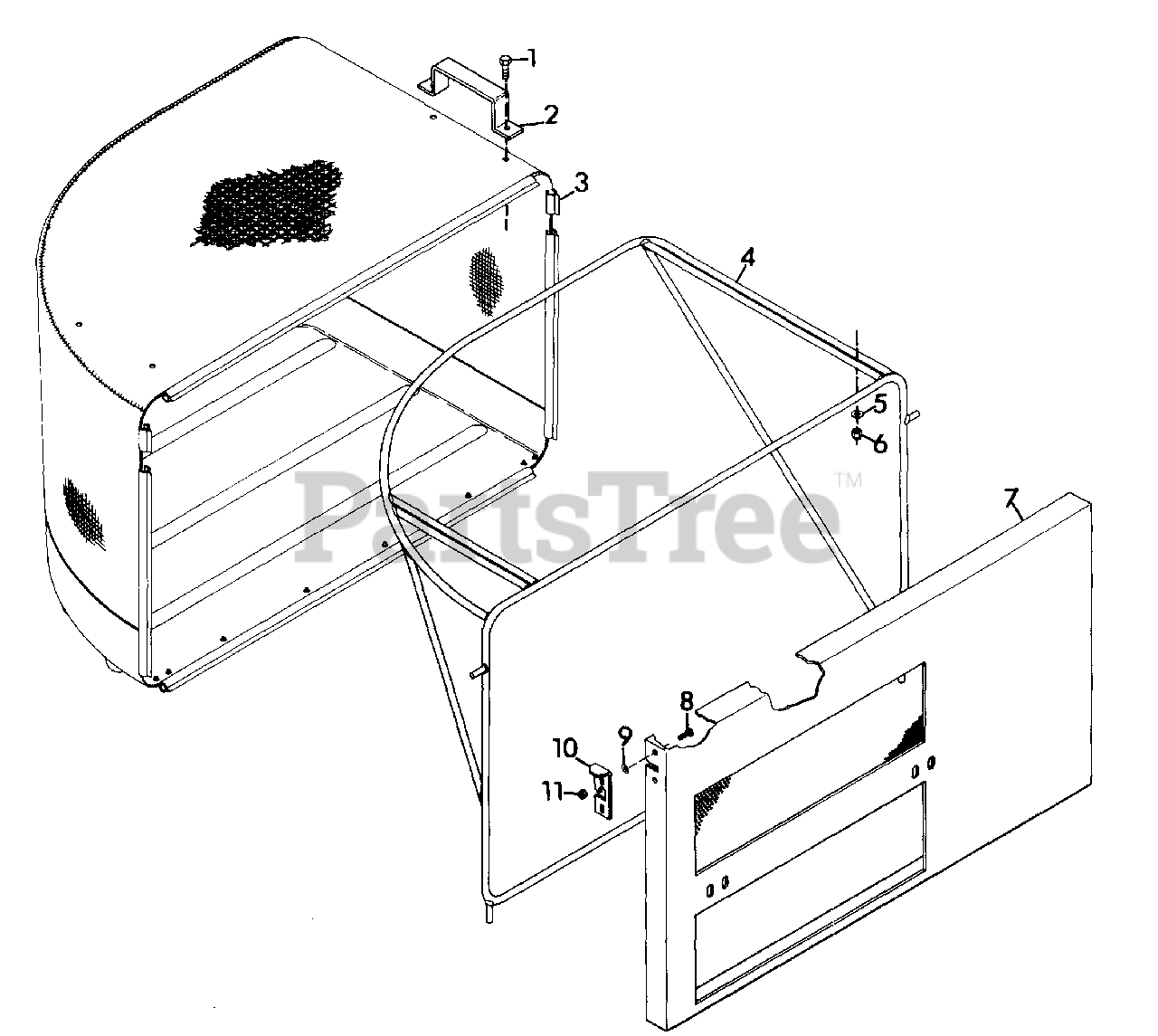

PRO MOWER GRASS CATCHER Parts Diagram

  • Title

1

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

2

Gravely 040517

HANDLE, HOPPER
(Superseded to 20670600)

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 042096

ASSEMBLY, PAN AND CATCHER
(Superseded to 08815700)

$240.99

$

Usually ships in 4-12 days

0

4

Gravely 042095

FRAME, CATCHER
(Superseded to 08815600)

$434.99

$

Usually ships in 4-12 days

0

5

Gravely 042097

WASHER, HANDLE
(Superseded to 20708400)

$

$

Not available

6

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

7

Gravely 042110

WELDMENT, CATCHER SUPPORT
(Superseded to 58800100)

$

$

Not available

8

Gravely 436733

SCREW, MACH. 10-24X.625
(Superseded to 21070200)

$

$

Not available

9

Gravely 040523

WASHER, 1/4" SPRING
(Superseded to 20671200)

$

$

Not available

10

Gravely 040522

LATCH, CATCHER LEFT
(Superseded to 20671100)

$

$

Not available

NS

Gravely 040521

LATCH, CATCHER RIGHT
(Superseded to 20671000)

$

$

Not available

11

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0
