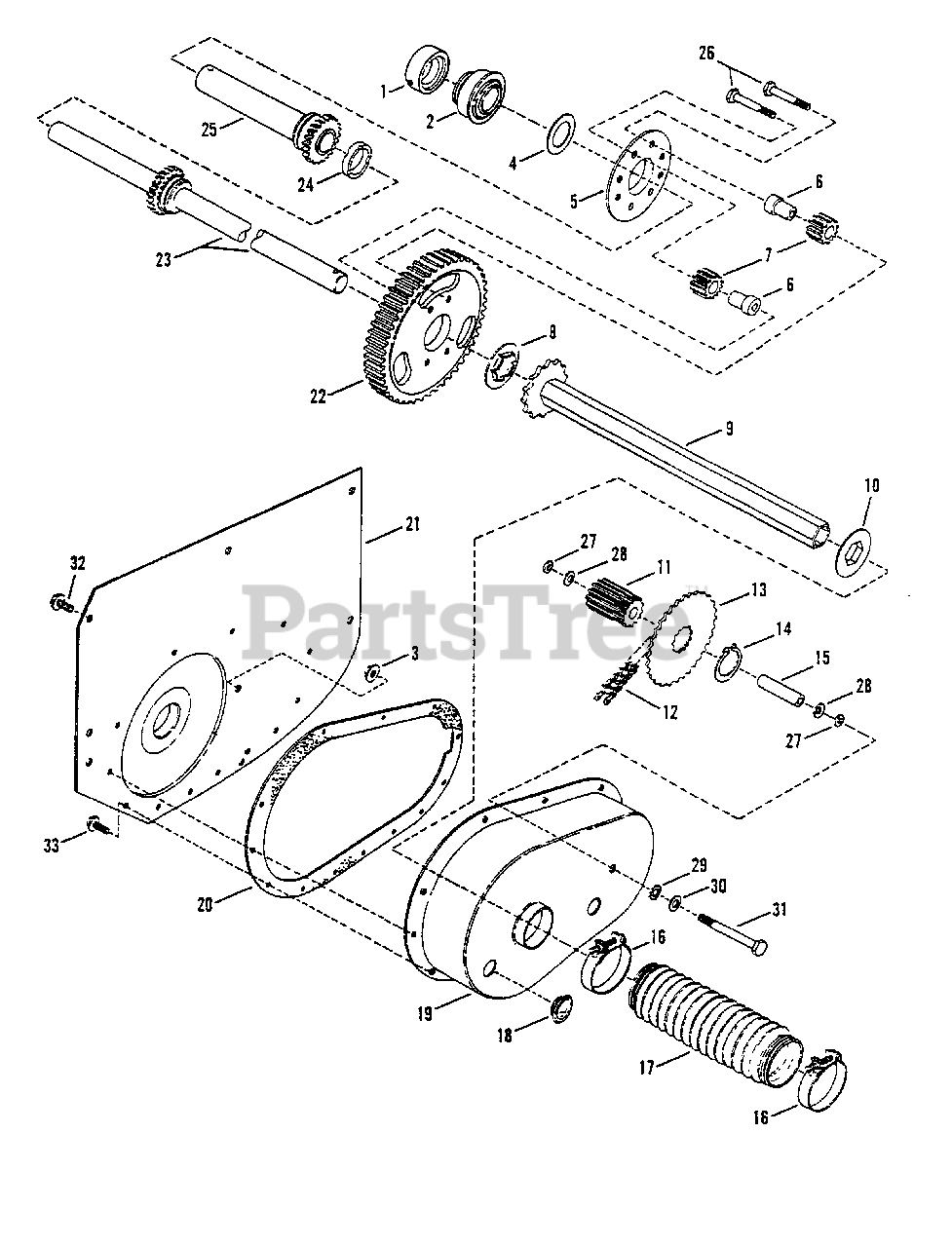

421614BVE (80663) - Snapper 42" Rear-Engine Riding Mower, 16hp Differential, R.H. Fender Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Differential, R.H. Fender Parts Diagram

  • Title

1

Snapper 7014401

COLLAR, Lock
(Superseded to 7014401YP)

Note: (Includes #9-0201 Set Screw)

$26.99

$

Usually ships in 2-12 days

0

2

Snapper 7018822

BEARING, Axle (Right Hand Fender)
(Superseded to 7018822YP)

$76.99

$

In Stock, only 4 left!

0

3

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7031079

WASHER, Thrust
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 11

0

5

Snapper 7038067

PLATE, Differential
(Superseded to 7038067YP)

$

$

Not available

6

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7021127

GEARS, Differential Pinion
(Superseded to 7021127YP)

$25.99

$

In Stock, Qty 9

0

8

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 15

0

9

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

Note: Includes two 15140 DX bearings

$95.99

$

In Stock, only 2 left!

0

10

Snapper 7010988

WASHER, Hex Insert
(Superseded to 7010988YP)

$4.49

$

In Stock, only 4 left!

0

11

Snapper 7010964

GEAR, 11 Teeth-10 Pitch
(Superseded to 7200128YP)

$15.99

$

In Stock, only 4 left!

0

12

Snapper 7010941

CHAIN, 46 Pitch (#35)
(Superseded to 7010941YP)

$15.99

$

In Stock, Qty 13

0

13

Snapper 7021129

SPROCKET
(Superseded to 7021129YP)

$21.99

$

In Stock, only 3 left!

0

14

Snapper 7010965

RING, Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, only 1 left!

0

15

Snapper 7021128

SPACER
(Superseded to 7021128YP)

$7.99

$

In Stock, Qty 5

0

16

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 20+

0

17

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 17083

$9.99

$

In Stock, Qty 20+

0

18

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7037279

CASE, Transmission
(Superseded to 7037279YP)

$84.99

$

In Stock, only 2 left!

0

20

Snapper 7028762

GASKET, Transmission Case
(Superseded to 7028762YP)

Note: Was 18060

$25.99

$

In Stock, Qty 20+

0

21

Snapper 7037957

FENDER, Right Hand (2.498" bearing hole)

Note: 51452 Fender Assy includes ball bearing

$

$

Not available

22

Snapper 7021158

GEAR, 63 Teeth-10 Pitch
(Superseded to 7021158YP)

$116.99

$

In Stock, Qty 9

0

23

Snapper 7075479

AXLE, Long
(Superseded to 7075479YP)

Note: Was 47763

$145.99

$

In Stock, Qty 5

0

24

Snapper 7074431

SPACER, Differential (1.25" ID x .425 Wide)
(Superseded to 7074431YP)

Note: Was 11026

$4.99

$

In Stock, Qty 16

0

25

Snapper 7057398

AXLE, Short
(Superseded to 7600137YP)

Note: (Includes Gear) ; (Use Only With Long Axle #4-7763)

$100.99

$

In Stock, only 2 left!

0

26

Snapper 7012333

SCREW, 5/16-24 x 1-5/8" Hex Cap Special Lock 4
(Superseded to 7012333YP)

$4.99

$

In Stock, Qty 17

0

27

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7011782

WASHER, Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090395

WASHER, 5/16 External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 11

0

30

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

31

Snapper 7011042

BOLT, 5/16-24 x 2-5/8" Idler
(Superseded to 7011042YP)

$4.49

$

In Stock, Qty 7

0

32

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

33

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 14

0

Snapper 7060662

ASSEMBLY, 8 Pinion Ball Bearing Differential (not shown)
(Superseded to 7600229YP)

Note: (Includes all #'s above)

$1111.99

$

Usually ships in 2-12 days

0
