421614BVE (80663) - Snapper 42" Rear-Engine Riding Mower, 16hp Wheels-Front Parts Diagram

42" Rear-Engine Riding Mower, 16hp

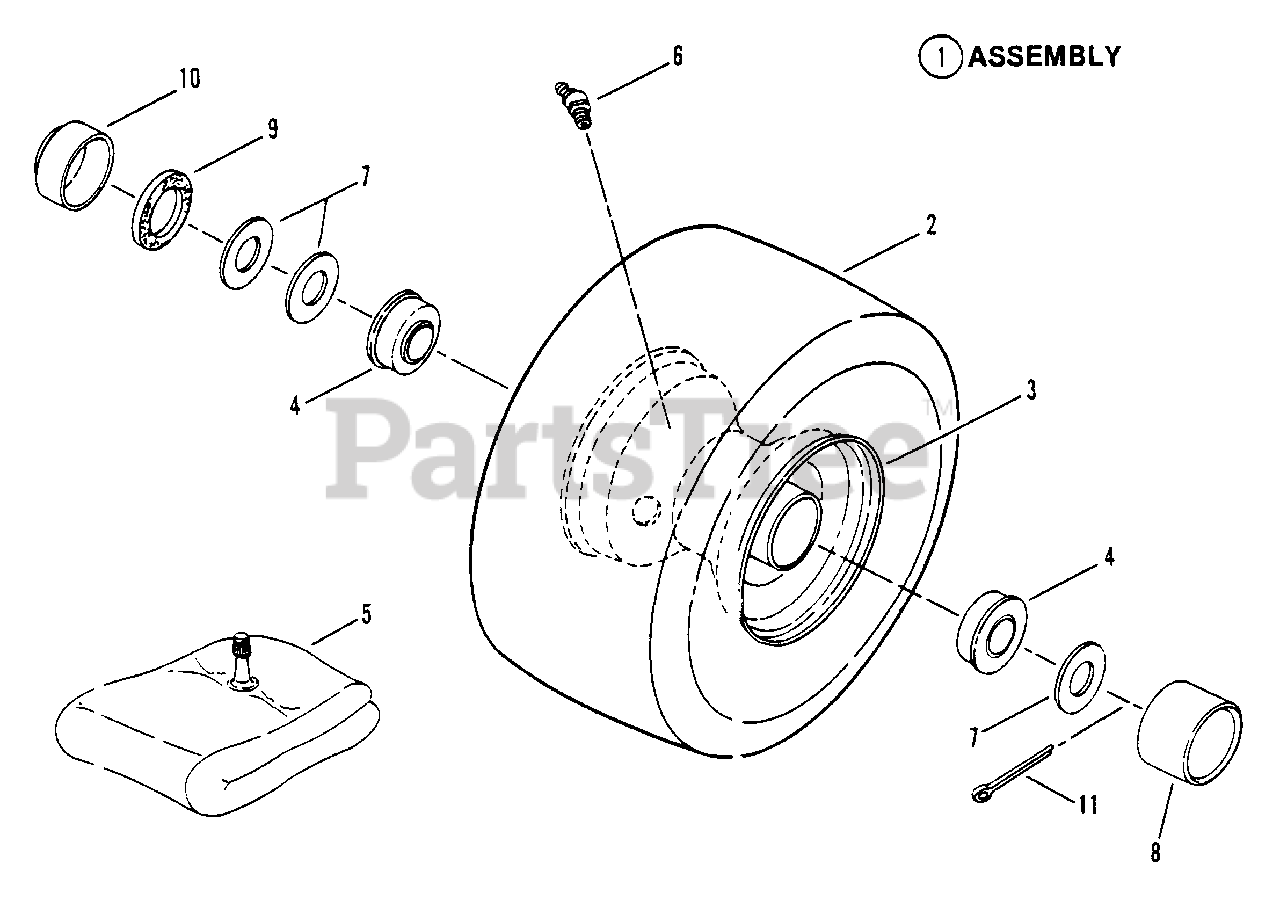

Wheels-Front Parts Diagram

  • Title

1

Snapper 7053304

ASSEMBLY, Front Tire & Rim (11.0")
(Superseded to 7058943YP)

Note: (Includes Items 2 Thru 6)

$105.99

$

In Stock, only 1 left!

0

2

Snapper 7027933

TIRE, Pneumatic 4.10/3.50 x 4 (11.0")
(Superseded to 7027933YP)

$68.99

$

In Stock, only 1 left!

0

3

Snapper 7017146

RIM
(Superseded to 7058943YP)

Note: (For 4.10/3.50 x 4 Tire)

$105.99

$

In Stock, only 1 left!

0

4

Snapper 7011807

BEARING, Ball
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7010821

TUBE, Inner
(Superseded to 7010821YP)

Note: (For 4.10/3.50 x 4 Tire)

$19.99

$

In Stock, only 2 left!

0

6

Snapper 7014247

FITTING Lube
(Superseded to 703153)

Note: (Was 10138)

$3.99

$

In Stock, Qty 10

0

7

Snapper 7010935

WASHER
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7011022

CAP, Hub
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 14

0

9

Snapper 7011032

SEAL, Felt
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: (Was 90364)

$4.49

$

In Stock, Qty 20+

0
