421615BVE (80872) - Snapper 42" Rear-Engine Riding Mower, 16hp Electrical Systems For 16 HP Tecumseh Parts Diagram

42" Rear-Engine Riding Mower, 16hp

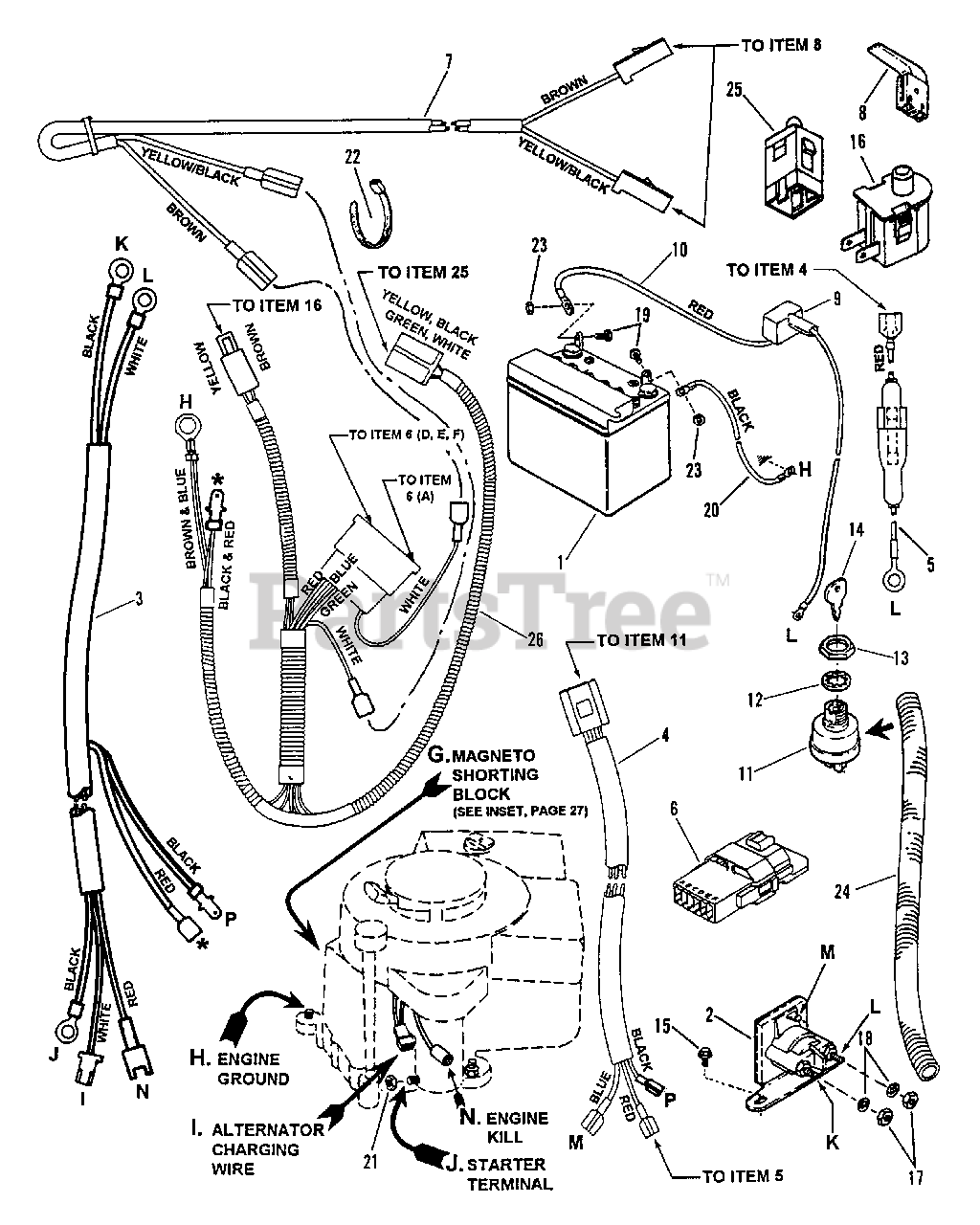

Electrical Systems For 16 HP Tecumseh Parts Diagram

  • Title

1

Snapper 7060753

KIT, 12V Dry Charge Battery
(Superseded to 7060753YP)

$

$

Not available

2

Snapper 7075671

SOLENOID
(Superseded to 7075671YP)

Note: Was 18817

$32.99

$

In Stock, Qty 10

0

3

Snapper 7028687

HARNESS, Starter Wiring (Tecumseh)
(Superseded to 7028687YP)

$32.99

$

Usually ships in 2-12 days

0

4

Snapper 7019322

HARNESS, Ignition Wiring
(Superseded to 7019322YP)

$

$

Not available

5

Snapper 7016168

HOLDER, Fuse
(Superseded to 7016168YP)

Note: (Includes Fuse)

$24.99

$

In Stock, only 1 left!

0

Snapper 7016169

FUSE (10 AMP)
(Superseded to 7016169YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7063065

INTERLOCK Module (Kohler/Tecumseh)
(Superseded to 7063065YP)

Note: Was 28677

$86.99

$

Usually ships in 2-12 days

0

7

Snapper 7028386

HARNESS, Deck Interlock Wiring
(Superseded to 7028386YP)

$15.99

$

In Stock, only 2 left!

0

8

Snapper 7018524

SWITCH, Deck Interlock
(Superseded to 7018524YP)

$20.99

$

In Stock, only 2 left!

0

9

Snapper 7012444

COVER, Battery Cable
(Superseded to 1677296SM)

$6.99

$

In Stock, Qty 6

0

10

Snapper 7019326

CABLE, Positive (Red)
(Superseded to 7019326YP)

$9.49

$

In Stock, only 4 left!

0

11

Snapper 7018816

SWITCH, Ignition (Includes keys #11138)
(Superseded to 7018816YP)

Note: (Used With Electric Start)

$44.99

$

In Stock, only 3 left!

0

12

Snapper 7091546

WASHER, 5/8 Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, Qty 8

0

13

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$

$

Not available

14

Snapper 7011138

KEY, Switch
(Superseded to 7011138YP)

$7.99

$

In Stock, Qty 8

0

15

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 13

0

16

Snapper 7023354

SWITCH
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

17

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 15

0

18

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 5

0

19

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 12

0

20

Snapper 7028027

CABLE, Negative
(Superseded to 7028027YP)

$10.99

$

In Stock, only 2 left!

0

21

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 15

0

22

Snapper 7012080

TIE, 7" Long Cable
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

23

Snapper 7090372

NUT, 1/4-20 Hex Lock
(Superseded to 703954)

$

$

Not available

24

Snapper 7024252

CONDUIT
(Superseded to 7024252YP)

Note: (Used On Briggs 16)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7022886

SWITCH, Traction
(Superseded to 7022886YP)

Note: (Operator Presence Control)

$15.99

$

In Stock, Qty 17

0

26

Snapper 7028678

HARNESS WIRE
(Superseded to 7028678YP)

Note: (Operator Presence Control) (Kohler/Tec.)

$47.99

$

Usually ships in 2-12 days

0
