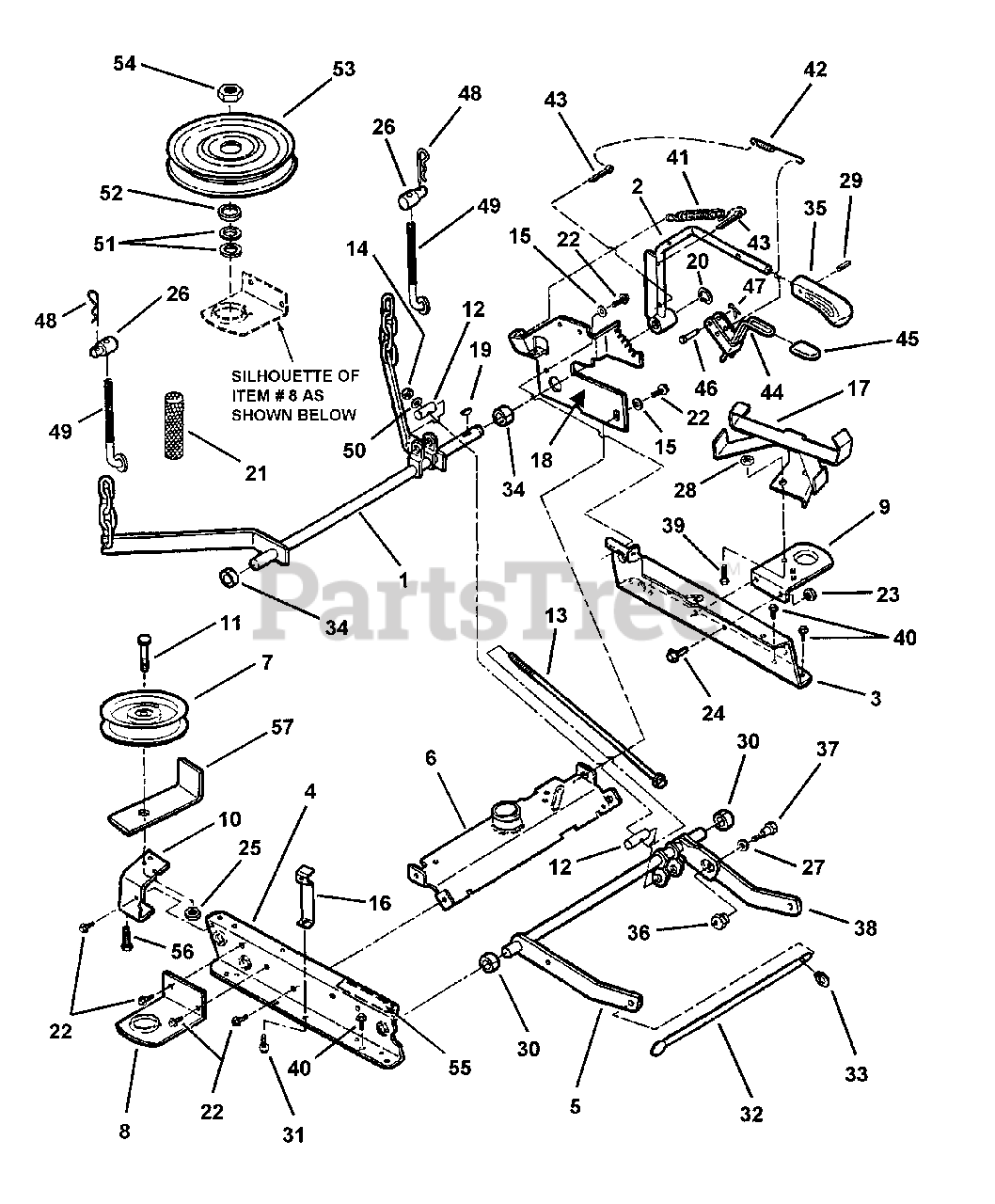

421618BVE (84264) - Snapper 42" Rear-Engine Riding Mower, 16hp Rails, Lift Arms, Cam Lift Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Rails, Lift Arms, Cam Lift Parts Diagram

  • Title

1

Snapper 7041248

ASSEMBLY, Rear Lift Arm
(Superseded to 7041248YP)

$188.99

$

Usually ships in 2-12 days

0

2

Snapper 7053300

LEVER, Height Adjustment Lift
(Superseded to 7053300YP)

$219.99

$

Usually ships in 2-12 days

0

3

Snapper 7073269

RAIL, Left Half
(Superseded to 7073269YP)

Note: Was 34918

$27.99

$

Usually ships in 2-12 days

0

4

Snapper 7036430

RAIL, Right Half
(Superseded to 7036430YP)

Note: Was 43848

$54.99

$

Usually ships in 2-12 days

0

5

Snapper 7041578

STRUCTURE, Front Lift Arm

$

$

Not available

6

Snapper 7040502

BRACE, Weldment
(Superseded to 7040502YP)

$81.99

$

Usually ships in 2-12 days

0

7

Snapper 7018574

PULLEY, 4-1/8" Flat Idler, .375" ID
(Superseded to 7018574SM)

$38.99

$

In Stock, only 4 left!

0

8

Snapper 7034759

SPINDLE, Brace (Right)
(Superseded to 7034759YP)

$23.99

$

Usually ships in 2-12 days

0

9

Snapper 7038096

SPINDLE, Brace (Left)
(Superseded to 7038096YP)

$16.99

$

Usually ships in 2-12 days

0

10

Snapper 7034763

BRACKET, Cover

$12.99

$

In Stock, only 1 left!

0

11

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap
(Superseded to 703406)

$4.99

$

In Stock, Qty 7

0

12

Snapper 7034213

PIVOT
(Superseded to 7034213YP)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 7027944

ROD, Leveling .375-16 x 16

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7090499

NUT, 3/8-24 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 7

0

16

Snapper 7034857

GUIDE, Belt (Rod)

$

$

Not available

17

Snapper 7042613

GUIDE, Belt, 42" Rear Engine Rider

$

$

Not available

18

Snapper 7034069

QUADRANT, Lift Lever

$

$

Not available

19

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 7

0

20

Snapper 7010746

RING, 3/4 Retaining
(Superseded to 703975)

Note: Was 27920

$3.99

$

In Stock, Qty 16

0

21

Snapper 7028021

COVER, Chain

$

$

Not available

22

Snapper 7090815

SCREW, 3/8-16 x 3/4" Self-Tapping
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

23

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, Qty 17

0

24

Snapper 7090134

SCREW, 3/8-16 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 1 left!

0

27

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 7

0

28

Snapper 7091619

NUT, 3/8-24 Hex Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 7012067

RING, Red (.36" wide)
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

32

Snapper 7022717

SUPPORT, Rod
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

33

Snapper 7017847

RING, Retaining (.438" ext)
(Superseded to 7017847YP)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7012068

RING, Blue (.665" wide)
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

35

Snapper 7023658

GRIP, Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

In Stock, only 1 left!

0

36

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

In Stock, only 1 left!

0

37

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder
(Superseded to 7015495YP)

$

$

Not available

38

Snapper 7032997

ARM, Front Lift (Left Side)
(Superseded to 7032997YP)

$16.99

$

In Stock, only 1 left!

0

39

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, Qty 15

0

40

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

41

Snapper 7024914

SPRING, Extension 5.5"
(Superseded to 7024914YP)

$14.99

$

In Stock, only 1 left!

0

42

Snapper 7012122

SPRING, Latch 5.65"
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

43

Snapper 7091515

COTTER-PIN, 3/16 x 1-1/2"
(Superseded to 703983)

Note: Was 90753

$4.49

$

Usually ships in 2-12 days

0

44

Snapper 7041581

LATCH
(Superseded to 7041581YP)

$40.99

$

In Stock, only 1 left!

0

45

Snapper 7026286

GRIP, Lift Latch
(Superseded to 7026286YP)

$2.99

$

Usually ships in 2-12 days

0

46

Snapper 7011021

PIN, 1/4 x 1-1/4" Clevis
(Superseded to 7023914YP)

$

$

Not available

47

Snapper 7090360

COTTER-PIN, 1/16 x 3/4"

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 7091503

HAIRPIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 7028728

ADJUSTER, Chain
(Superseded to 703827)

$10.99

$

In Stock, Qty 20+

0

50

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7010935

WASHER, 3/4 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

52

Snapper 7014526

SPACER, 3/4" I.D.

$

$

Not available

53

Snapper 7014532

PULLEY, 5" O.D.
(Superseded to 7014532YP)

$53.99

$

In Stock, only 4 left!

0

54

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 11

0

55

Snapper 7073066

DECAL, Blade ON/OFF
(Superseded to 7073066YP)

Note: Was 43807

$5.99

$

Usually ships in 2-12 days

0

56

Snapper 7090361

BOLT, 5/16-18 x 5/8" Hex Washer Head, Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

57

Snapper 7032368

GUIDE, Belt

$

$

Not available
