421622BVE (84707) - Snapper 42" Rear-Engine Riding Mower, 16hp 42" Cutting Deck Assembly Parts Diagram

42" Rear-Engine Riding Mower, 16hp

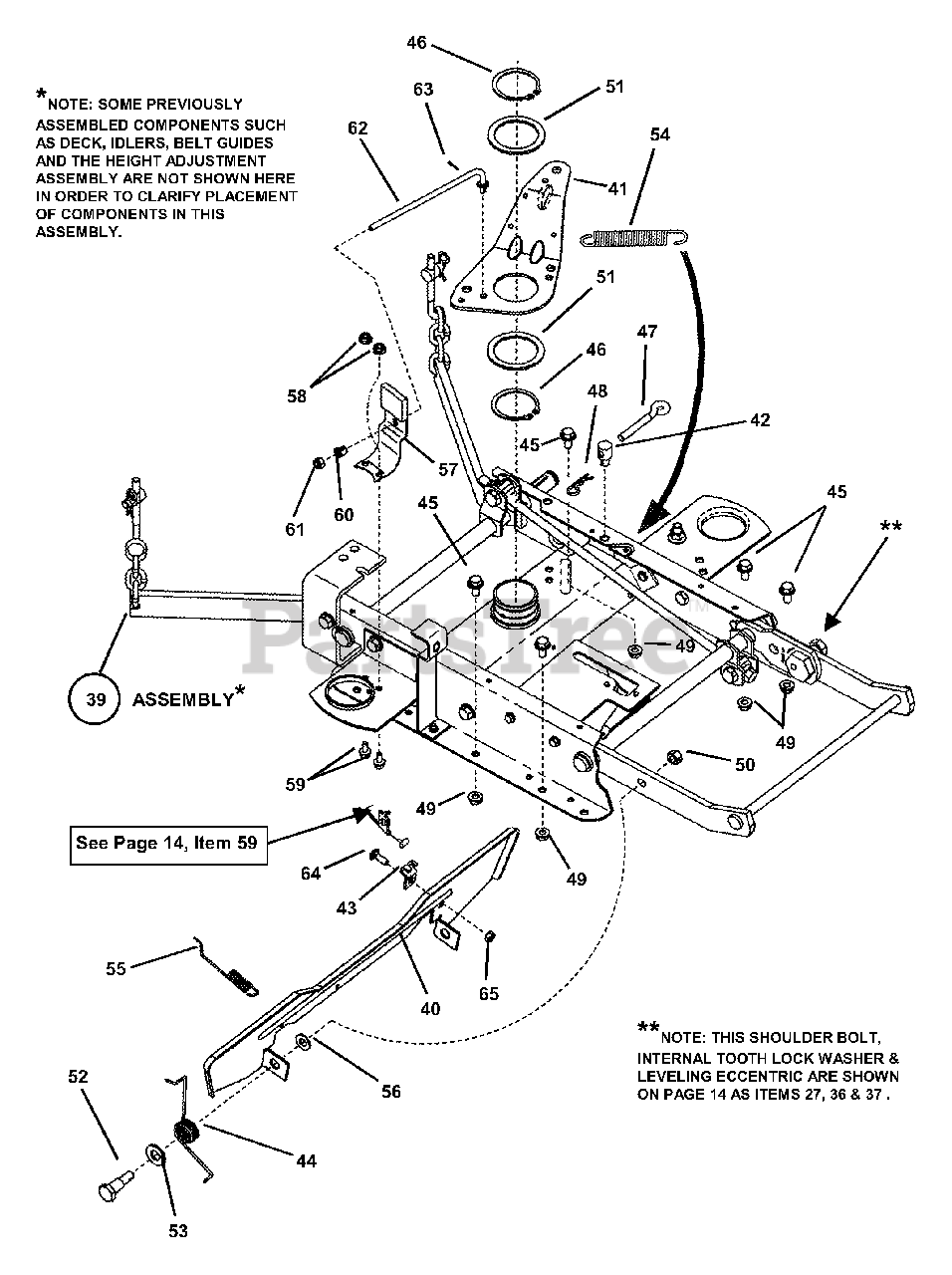

42" Cutting Deck Assembly Parts Diagram

  • Title

39

ASSEMBLY, Rail

Note: (See "Rails, Lift Arms, Cam Lift (Part 1 & 2) illustrations and parts lists for Parts Breakdown)

$

$

Not available

40

Snapper 7073267

PEDAL, Blade Stop Control
(Superseded to 7073267YP)

$48.99

$

Usually ships in 2-12 days

0

41

Snapper 7034758

ARM, Idler
(Superseded to 7034758YP)

$14.99

$

Usually ships in 2-12 days

0

42

Snapper 7028200

SWIVEL, Adjustable (with 5/16-18 internal thread)
(Superseded to 7028200SM)

$13.99

$

In Stock, Qty 5

0

43

Snapper 7073217

CLIP, Cable
(Superseded to 7073217YP)

$5.99

$

In Stock, Qty 5

0

44

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.99

$

In Stock, Qty 8

0

45

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

Usually ships in 2-12 days

0

46

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.99

$

In Stock, Qty 20+

0

47

Snapper 7029244

EYE-BOLT, 5/16-18 x 3"
(Superseded to 7029244YP)

$

$

Not available

48

Snapper 7091503

HAIRPIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

50

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 10

0

51

Snapper 7014795

WASHER, 2" I.D. Nylon

$

$

Not available

52

Snapper 7015446

BOLT, 3/8-24 x 9/16" Shoulder
(Superseded to 7015446YP)

$5.99

$

Usually ships in 2-12 days

0

53

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 20+

0

54

Snapper 7024341

SPRING, Return
(Superseded to 7024341YP)

$

$

Not available

55

Snapper 7074649

SPRING, Latch
(Superseded to 7074649YP)

$8.99

$

In Stock, only 3 left!

0

56

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

57

Snapper 7034754

SPRING BRAKE PAD

$

$

Not available

58

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 10

0

59

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

60

Snapper 7028786

BUSHING, 3/8" Snap Plastic
(Superseded to 7028786YP)

$3.49

$

Usually ships in 2-12 days

0

61

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

62

Snapper 7028754

LINK, Spindle Brake

$

$

Not available

63

Snapper 7090673

PIN, 1/16 x 1/2" Cotter
(Superseded to 703464)

$4.49

$

In Stock, only 1 left!

0

64

Snapper 7091530

BOLT, 1/4-20 x 3/4" Round Head Square Neck, Grade 5
(Superseded to 7091530SM)

Note: Was 91776

$4.49

$

In Stock, only 4 left!

0

65

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0
