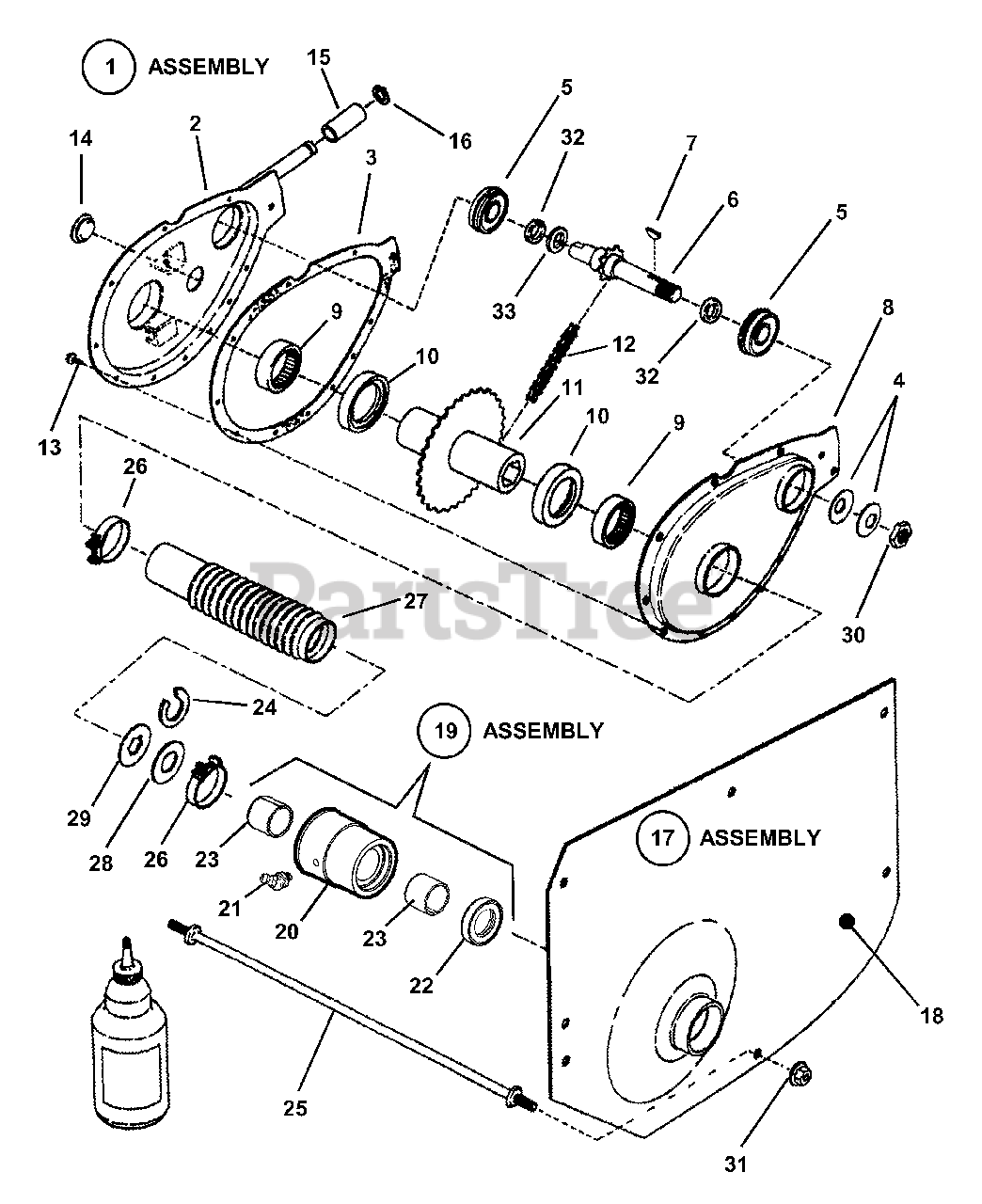

421622BVE (84707) - Snapper 42" Rear-Engine Riding Mower, 16hp Chain Case, L.H. Fender Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Chain Case, L.H. Fender Parts Diagram

  • Title

1

Snapper 7052683

ASSEMBLY, Chain Case
(Superseded to 7052683YP)

Note: (Includes Items 2 Thru 13, & 15, 16, 31, 30)

$562.99

$

In Stock, only 1 left!

0

2

Snapper 7041136

CASE, Sprocket (Weldment)
(Superseded to 7041136YP)

$91.99

$

In Stock, only 2 left!

0

3

Snapper 7028761

GASKET, Case Cover
(Superseded to 7028761YP)

$25.99

$

In Stock, Qty 20+

0

4

Snapper 7011121

WASHER, Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 7018963

SPROCKET & SHAFT
(Superseded to 7018963YP)

$102.99

$

In Stock, only 2 left!

0

7

Snapper 7010614

KEY, 1/8 x 5/8" Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 8

0

8

Snapper 7039778

COVER, Chain Case
(Superseded to 7039778YP)

$45.99

$

Usually ships in 2-12 days

0

9

Snapper 7010942

BEARING, Needle
(Superseded to 7010942YP)

$14.99

$

In Stock, Qty 11

0

10

Snapper 7011086

WASHER, Nylon Thrust
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 18

0

11

Snapper 7040355

HUB & SPROCKET (Weldment)
(Superseded to 7040355YP)

$259.99

$

In Stock, only 1 left!

0

12

Snapper 7010941

CHAIN
(Superseded to 7010941YP)

$15.99

$

In Stock, Qty 20+

0

13

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7022785

ROLLER
(Superseded to 7022785YP)

$6.49

$

In Stock, only 4 left!

0

16

Snapper 7010776

RING, 1/2" External Retaining
(Superseded to 7010776YP)

$4.49

$

In Stock, Qty 7

0

17

Snapper 7059183

ASSEMBLY, Left Hand Fender

Note: (Includes items 18 & 19)

$

$

Currently unavailable

18

Snapper 7037285

FENDER, Left Hand
(Superseded to 7301302YP)

$94.99

$

Usually ships in 2-12 days

0

19

Snapper 7052827

ASSEMBLY, Axle Bearing
(Superseded to 7052827YP)

Note: (Incl. items 20 thru 23)

$125.99

$

In Stock, only 3 left!

0

20

Snapper 7052827

BEARING, Left Hand Fender
(Superseded to 7052827YP)

Note: Was 74184

$125.99

$

In Stock, only 3 left!

0

21

Snapper 7013324

FITTING, Lube
(Superseded to 7013324YP)

Note: (For 3/16" diameter hole)

$8.49

$

In Stock, Qty 6

0

22

Snapper 7074500

SEAL, Dust/Grease Axle
(Superseded to 7074500YP)

$

$

Not available

23

Snapper 7074182

BEARING, 3/4" I.D. DX
(Superseded to 7074182YP)

$6.49

$

In Stock, only 2 left!

0

24

Snapper 7012271

WASHER, Shim
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7011070

ROD, Cross-Tie
(Superseded to 7011070YP)

$21.99

$

Usually ships in 2-12 days

0

26

Snapper 7012332

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 20+

0

27

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

$9.99

$

In Stock, Qty 20+

0

28

Snapper 7011071

WASHER, Thrust Nylon
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 9

0

30

Snapper 7091505

NUT, 5/8-18 Hex Nyloc
(Superseded to 703432)

$

$

Not available

31

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 15

0

32

Snapper 7019260

O-RING
(Superseded to 7019260YP)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7027981

WASHER, Wave
(Superseded to 7027981YP)

$4.49

$

In Stock, Qty 16

0

Snapper 7061017

GREASE ,SNAPPER Transmission
(Superseded to 7061017YP)

Note: (4 oz. Required)

$

$

Not available

Snapper 7051451

ASSEMBLY, Left Hand Fender

Note: (Includes Left Hand Fender P/N 37958 & Ball Bearing P/N 14624)

$

$

Not available

Snapper 7037958

Left Hand Fender

$

$

Not available

Snapper 7014624

Ball Bearing
(Superseded to 7014624YP)

$

$

Not available
