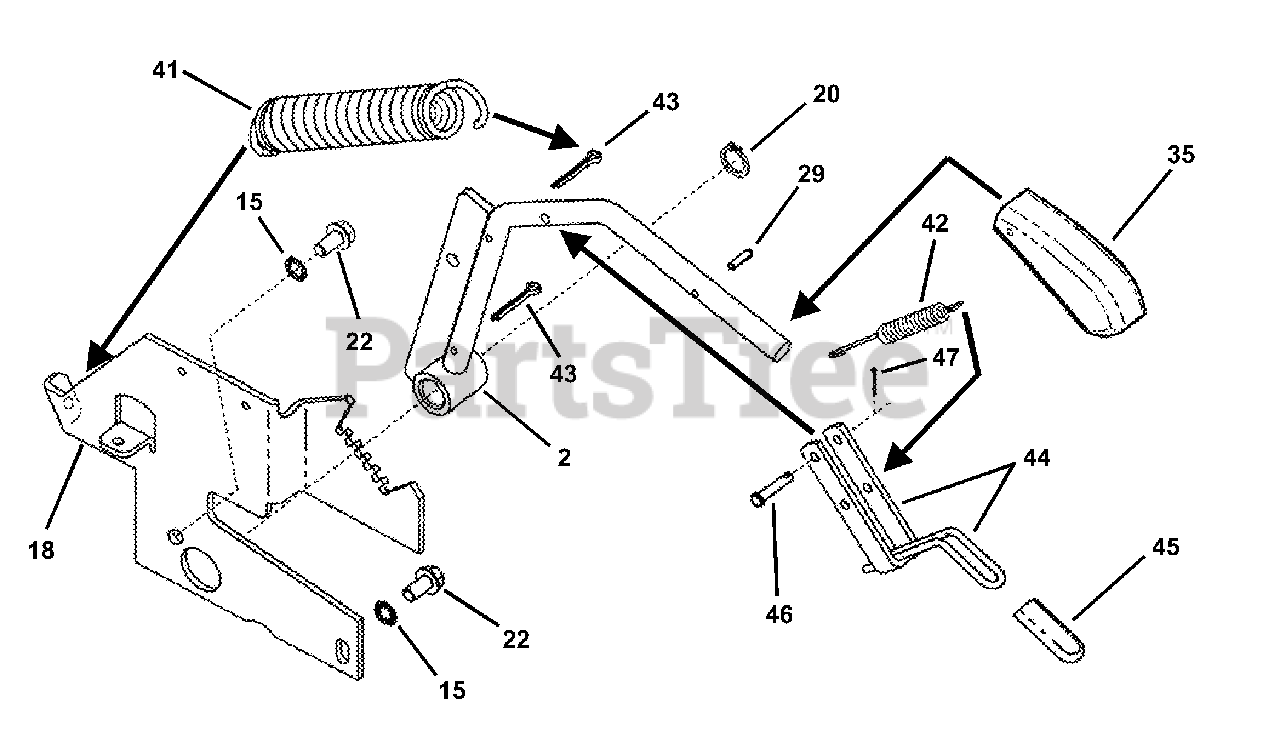

421622BVE (84707) - Snapper 42" Rear-Engine Riding Mower, 16hp Rails, Lift Arms, Cam Lift (Part 2) Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Rails, Lift Arms, Cam Lift (Part 2) Parts Diagram

  • Title

2

Snapper 7053300

LEVER, Height Adjustment Lift
(Superseded to 7053300YP)

$219.99

$

Usually ships in 2-12 days

0

15

Snapper 7090390

WASHER, 3/8 Int. Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 6

0

18

Snapper 7034069

QUADRANT, Lift Lever

$

$

Not available

20

Snapper 7010746

RING, 3/4 Retaining
(Superseded to 703975)

Note: Was 27920

$3.99

$

In Stock, Qty 11

0

22

Snapper 7090815

SCREW, 3/8-16 x 3/4" Tap
(Superseded to 703950)

$5.49

$

In Stock, Qty 5

0

29

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7023658

GRIP, Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

In Stock, only 1 left!

0

41

Snapper 7024914

SPRING, Extension
(Superseded to 7024914YP)

$14.99

$

In Stock, only 1 left!

0

42

Snapper 7012122

SPRING, Latch
(Superseded to 7012122YP)

$9.49

$

Usually ships in 2-12 days

0

43

Snapper 7091515

COTTER-PIN, 3/16 x 1-1/2"
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, only 1 left!

0

44

Snapper 7041581

LATCH Weldment
(Superseded to 7041581YP)

$40.99

$

In Stock, only 1 left!

0

45

Snapper 7026286

GRIP, Lift Latch
(Superseded to 7026286YP)

$2.99

$

Usually ships in 2-12 days

0

46

Snapper 7011021

PIN, 1/4 x 1-1/4" Clevis
(Superseded to 7023914YP)

$

$

Not available

47

Snapper 7090360

COTTER-PIN, 1/16 x 3/4"

$3.99

$

Usually ships in 2-12 days

0
