4219 (181-424D715) - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Value Home Center)

Walk-Behind Mower, Electric

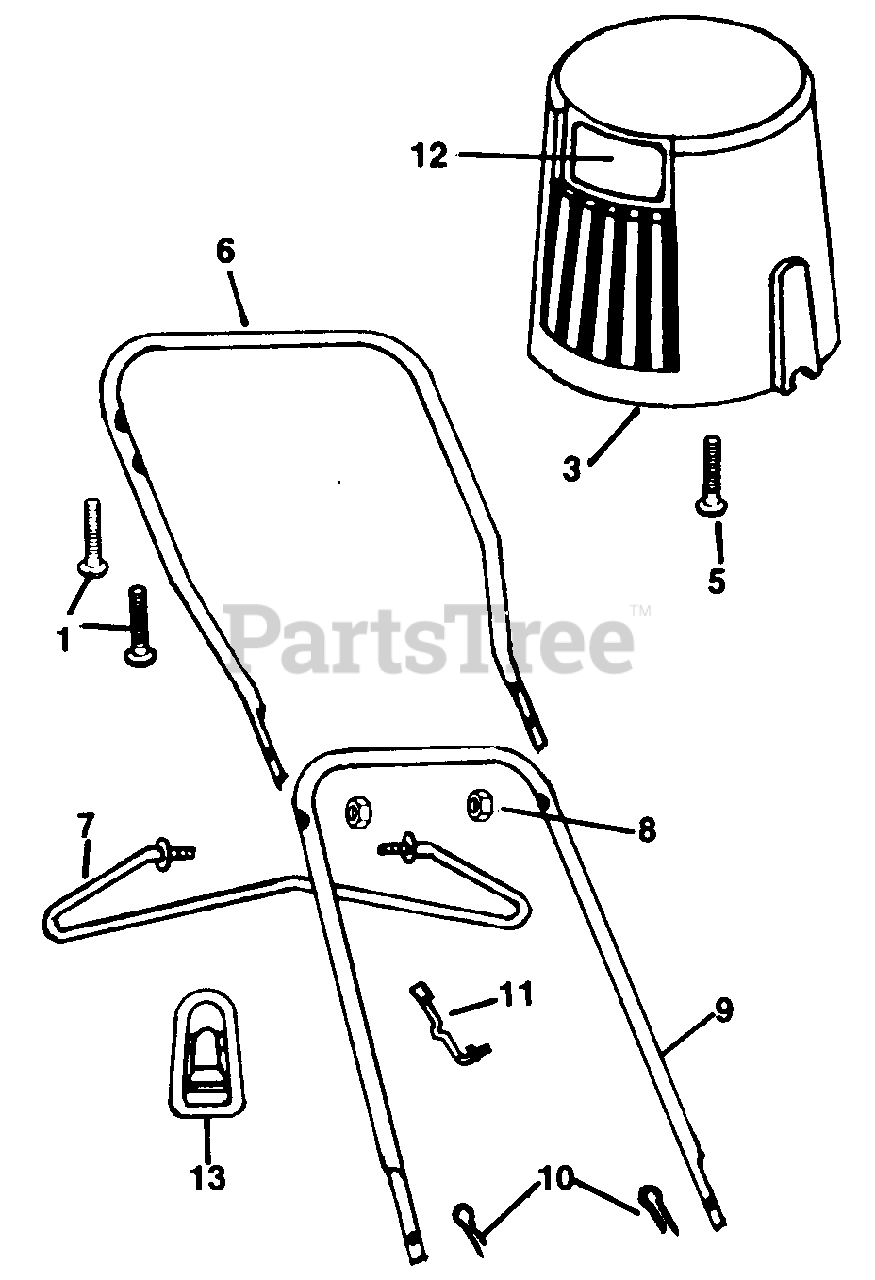

4219 (181-424D715) - MasterCut by MTD Walk-Behind Mower, Electric (1991) (Value Home Center) > Parts Diagrams (4) > Handle Bar Assembly

  • Title
710-1150

1

Screw

Part# 710-1150

OEM Warranty Repair Part for MTD

Not available

731-1239

3

Plastic Shroud

Part# 731-1239

OEM Warranty Repair Part for MTD

Not available

710-1128

5

10-16 x 3/4" T25 Tapping

Part# 710-1128

OEM Warranty Repair Part for MTD

Not available

749-0838

6

Upper Handle

Part# 749-0838

OEM Warranty Repair Part for MTD

Not available

747-0789

7

Cord Control Rod

Part# 747-0789

OEM Warranty Repair Part for MTD

Not available

712-0441

8

1/4"-20 Locknut

Part# 712-0441

OEM Warranty Repair Part for MTD

Not available

749-0839

9

Lower Handle

Part# 749-0839

OEM Warranty Repair Part for MTD

Not available

714-0225

10

CoKer Pin 3/32" x 1/2

Part# 714-0225

OEM Warranty Repair Part for MTD

Not available

726-0303

11

Cord Tie

Part# 726-0303

OEM Warranty Repair Part for MTD

Not available

777-9381

12

Warning Decal

Part# 777-9381

OEM Warranty Repair Part for MTD

Not available

725-1590

13

Strain Relief

Part# 725-1590

OEM Warranty Repair Part for MTD

Not available
