42200 - Gravely 60" Deck for Pro-Walk Mower MOWER FRAME Parts Diagram

60" Deck for Pro-Walk Mower

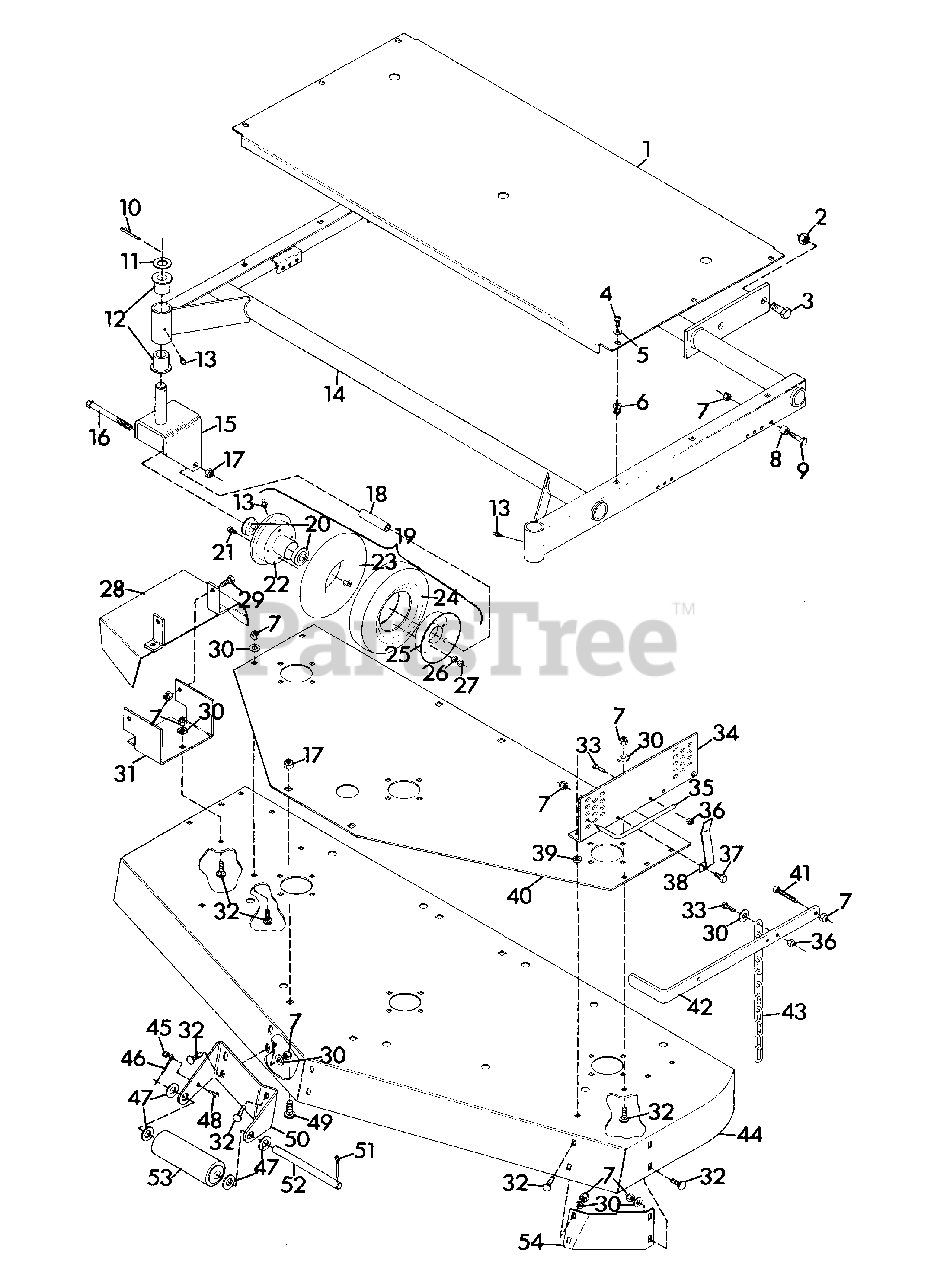

MOWER FRAME Parts Diagram

  • Title
1

Gravely 042207

GUARD, BELT PRO-60
(Superseded to 08960500)

$144.17

$

Usually ships in 4-12 days

0

2

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.63

$

In Stock, Qty 20+

0

3

Gravely 271547

BOLT, HEX 5/8-11X1.50
(Superseded to 05968700)

$3.58

$

Usually ships in 4-12 days

0

4

Gravely 160536

SCREW, MACH. 1/4-20X.625 RD HD
(Superseded to 06113400)

$

$

Not available

5

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$1.96

$

In Stock, Qty 20+

0

6

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$3.63

$

In Stock, Qty 20+

0

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.24

$

In Stock, Qty 17

0

8

Gravely 021076

BUSHING .391X.622X.670
(Superseded to 08902300)

$15.54

$

In Stock, only 2 left!

0

9

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$2.99

$

In Stock, Qty 7

0

10

Gravely 137253

PIN, COTTER .187X1.62
(Superseded to 06705800)

$2.46

$

Usually ships in 4-12 days

0

11

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$3.63

$

In Stock, Qty 11

0

12

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$6.65

$

In Stock, only 1 left!

0

13

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$5.53

$

0

14

Gravely 042199

WELDMENT, MOWER FRAME
(Superseded to 21263100)

$

$

Not available

15

Gravely 037811

WELDMENT, CASTER FORK
(Superseded to 21244500)

$

$

Not available

16

Gravely 433163

BOLT, HEX 1/2-13X5.00
(Superseded to 05901905)

$4.75

$

In Stock, Qty 20+

0

17

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.80

$

In Stock, Qty 16

0

18

Gravely 011950

BUSHING, WHEEL .520X.750X3.312
(Superseded to 09023500)

$22.08

$

Usually ships in 4-12 days

0

19

Gravely 037797

WHEEL, GAUGE
(Superseded to 20636900)

$89.38

$

Usually ships in 4-12 days

0

20

Gravely 037823

BEARING, GAUGE WHEEL
(Superseded to 05408900)

$11.12

$

In Stock, only 2 left!

0

21

Gravely 181635

BOLT, HEX 3/8-24X.75
(Superseded to 05962600)

$

$

Not available

22

Gravely 037825

WHEEL, HALF
(Superseded to 20637900)

$

$

Not available

23

Gravely 037826

TUBE, INNER
(Superseded to 20638000)

$40.24

$

In Stock, only 2 left!

0

24

Gravely 037827

TIRE, GAUGE WHEEL
(Superseded to 20638100)

$

$

Not available

25

Gravely 037824

WHEEL, HALF PLAIN
(Superseded to 20637800)

$

$

Not available

26

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$2.24

$

Usually ships in 4-12 days

0

27

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.12

$

In Stock, Qty 12

0

28

Gravely 035668

WELDMENT, DISCHARGE CHUTE
(Superseded to 09090300)

$

$

Not available

29

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$2.80

$

Usually ships in 4-12 days

0

30

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$2.52

$

In Stock, Qty 20+

0

31

Gravely 035667

BRACKET, DISCHARGE
(Superseded to 08738100)

$

$

Not available

32

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK
(Superseded to 06200235)

$2.80

$

In Stock, Qty 20+

0

33

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.96

$

In Stock, Qty 20+

0

34

Gravely 038516

BRACKET, MOWER SUPPORT L.H.
(Superseded to 08927953)

$30.69

$

Usually ships in 4-12 days

0

34

Gravely 038515

BRACKET, MOWER SUPPORT R.H.
(Superseded to 08927853)

$44.27

$

Usually ships in 4-12 days

0

35

Gravely 038514

PIN, MOWER LOCKING
(Superseded to 08875900)

$14.81

$

In Stock, Qty 14

0

36

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$2.24

$

In Stock, Qty 20+

0

37

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$2.18

$

In Stock, only 3 left!

0

38

Gravely 041201

SPRING, PIN
(Superseded to 08876100)

$

$

Not available

39

Gravely 014672

SPACER, IDLER .406X.750X.188
(Superseded to 03488200)

$2.29

$

In Stock, Qty 18

0

40

Gravely 040536

PLATE, SUPPORT
(Superseded to 08936300)

$156.46

$

Usually ships in 4-12 days

0

41

Gravely 034402

BOLT, HEX 3/8-16X2.00
(Superseded to 05942200)

$2.52

$

In Stock, only 1 left!

0

42

Gravely 035684

BAR, LIFT
(Superseded to 08923700)

$54.06

$

Usually ships in 4-12 days

0

43

Gravely 038620

CHAIN, HEIGHT ADJUSTMENT
(Superseded to 08867400)

$

$

Not available

44

Gravely 044147

WELDMENT, 60" MOWER
(Superseded to 21267500)

$

$

Not available

45

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$1.96

$

In Stock, Qty 13

0

46

Gravely 103422

PIN, COTTER .25X2.0
(Superseded to 06713100)

$3.63

$

In Stock, Qty 5

0

47

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.24

$

In Stock, Qty 13

0

48

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$1.79

$

In Stock, Qty 13

0

49

Gravely 126475

BOLT, 1/2-13X1.00 RD HD SQ NK
(Superseded to 06224600)

$3.99

$

Usually ships in 4-12 days

0

50

Gravely 031353

BRACKET, ROLLER FRONT
(Superseded to 08533700)

$98.72

$

In Stock, only 1 left!

0

51

Gravely 179128

PIN, COTTER .25X1.0
(Superseded to 06713000)

$2.24

$

In Stock, Qty 8

0

52

Gravely 024795

SHAFT, CENTER ROLLER
(Superseded to 08598800)

$58.98

$

In Stock, only 1 left!

0

53

Gravely 031390

ROLLER, GAUGE
(Superseded to 08803300)

$36.84

$

In Stock, only 1 left!

0

54

Gravely 031354

BAFFLE, FRONT
(Superseded to 08905253)

$

$

Not available

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.19

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$25.49

$

Usually ships in 4-12 days

0

NS

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.19

$

Usually ships in 4-12 days

0

NS

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.34

$

In Stock, only 1 left!

0

NS

Gravely 040190

DECAL, LUBE
(Superseded to 20666100)

$

$

Not available

NS

Gravely 043003

DECAL, GRAVELY LOGO
(Superseded to 05210700)

$36.23

$

Usually ships in 4-12 days

0

NS

Gravely 043470

DECAL, PRO-60
(Superseded to 20766700)

$11.12

$

Usually ships in 4-12 days

0
