422437-1022-03 - Briggs & Stratton Horizontal Engine Carburetor Assemblies Parts Diagram

Horizontal Engine

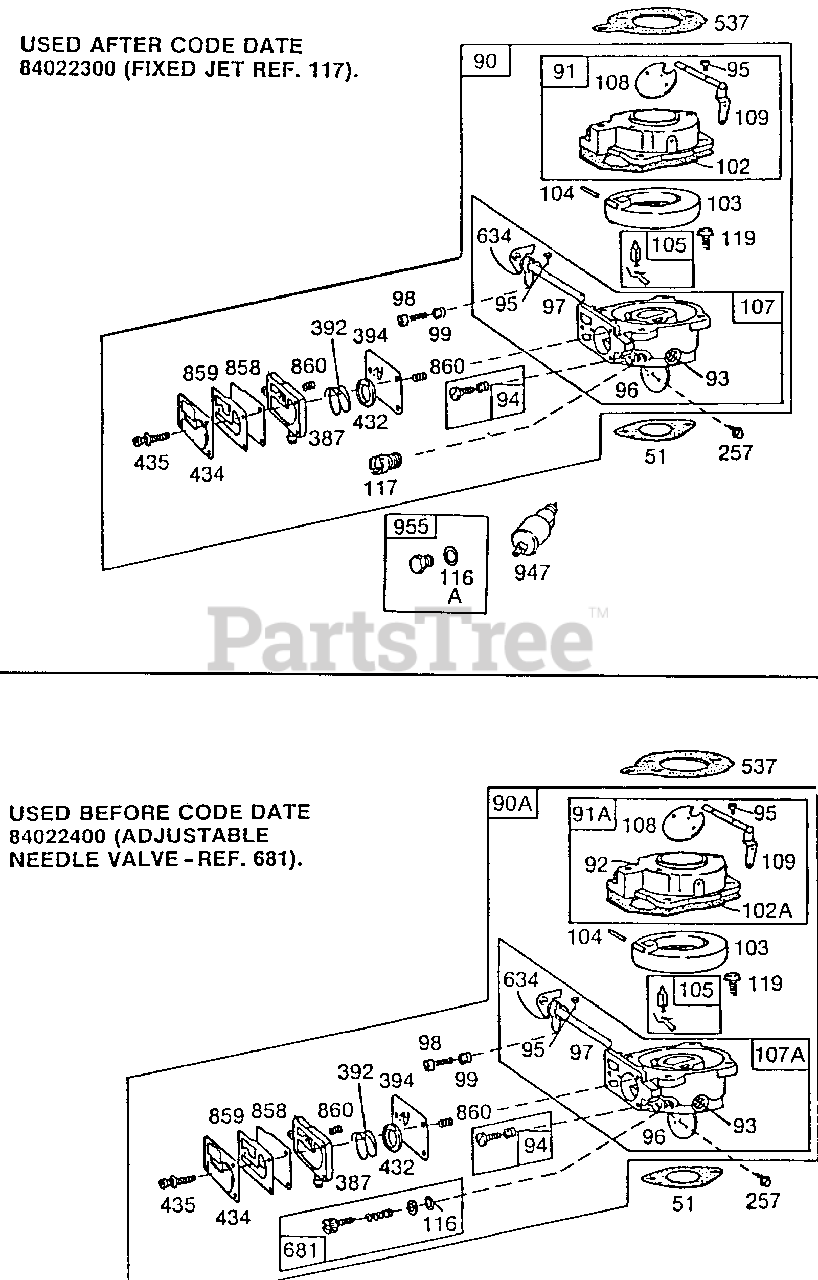

Carburetor Assemblies Parts Diagram

  • Title
51

Briggs & Stratton 271412

Gasket-Intake
(Superseded to 692278)

Note: Included in Carburetor Overhaul Kit-Part No. 394502. Included in Gasket Set-Part No. 394501

$5.49

$

Usually ships in 2-12 days

0

90A

Briggs & Stratton 394338

Carburetor Assembly (Remote Choke)
(Superseded to 693480)

$289.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 397245

Carburetor Assy (Remote Choke)
(Superseded to 693480)

$289.99

$

Usually ships in 2-12 days

0

91A

Briggs & Stratton 393297

Body Assembly-Upper Carburetor
(Superseded to 693480)

$289.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 397241

Body Assy.-Upper Carburetor

Note: Used Before Code Date 85082600

$59.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 399535

Body Assembly-Upper Carburetor

Note: Used After Code Date 85082500

$

$

Not available

92

Briggs & Stratton 394505

Body-Upper Carburetor
(Superseded to 693480)

$289.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 231209

Bushing-Throttle Shaft
(Superseded to 690513)

$8.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 221939

Valve-Throttle
(Superseded to 691727)

$6.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 392672

Shaft-Throttle
(Superseded to 690629)

$38.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

102A

Briggs & Stratton 271008

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$7.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 271607

Gasket-Carburetor Body
(Superseded to 273186S)

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$6.99

$

In Stock, Qty 9

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$3.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 394681

Kit-Needle/seat (Gravity Feed)

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$7.99

$

In Stock, Qty 10

0

107A

Briggs & Stratton 394352

Body-Lower Carburetor
(Superseded to 693480)

$289.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 397270

Body-Lower Carburetor

Note: Used Before Code Date 85082600

$109.99

$

Usually ships in 2-12 days

0

107

Briggs & Stratton 399623

Body-Lower Carburetor
(Superseded to 693480)

Note: Used After Code Date 85082500

$289.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 222010

Valve-Choke

Note: Used Before Code Date 85082600

$7.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 223534

Valve-Choke

Note: Used After Code Date 85082500

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 392673

Shaft-Choke
(Superseded to 691957)

$45.99

$

Usually ships in 2-12 days

0

116A

Briggs & Stratton 280474

Seal-O
(Superseded to 691319)

$5.49

$

In Stock, only 1 left!

0

116

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$5.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 231333

Jet-Main (Fixed) (High Altitude)

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 231338

Seat, Orifice

$

$

Not available

119

Briggs & Stratton 94152

Screw, Sem Hex Head (10-32 X 3/4")
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

257

Briggs & Stratton 93897

Screw, Sem Hex Head
(Superseded to 690316)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 280197

Body-Pump
(Superseded to 691896)

$15.99

$

In Stock, only 1 left!

0

392

Briggs & Stratton 261395

Spring-Pump Diaphragm
(Superseded to 691801)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$4.99

$

In Stock, only 1 left!

0

394

Briggs & Stratton 270988

Diaphragm-Carburetor
(Superseded to 272638S)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$6.99

$

In Stock, Qty 11

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$4.99

$

In Stock, Qty 14

0

434

Briggs & Stratton 222615

Cover-Diaphragm

$2.49

$

Usually ships in 2-12 days

0

435

Briggs & Stratton 93829

Screw-Slotted Hex.
(Superseded to 691085)

$4.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 271411

Gasket-Air Cleaner
(Superseded to 690273)

Note: Included in Carburetor Overhaul Kit-Part No. 394502. Included in Gasket Set-Part No. 394501

$5.49

$

In Stock, Qty 10

0

634

Briggs & Stratton 271013

Sealing Washer (Foam)
(Superseded to 691872)

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$7.49

$

In Stock, only 1 left!

0

681

Briggs & Stratton 394033

Valve-Idle Adjust

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$5.49

$

Usually ships in 2-12 days

0

858

Briggs & Stratton 270989

Diaphragm-Pump
(Superseded to 691871)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$6.49

$

In Stock, Qty 7

0

859

Briggs & Stratton 271025

Gasket-Pump
(Superseded to 691873)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$8.49

$

In Stock, only 1 left!

0

860

Briggs & Stratton 261358

Spring, Valve
(Superseded to 691799)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$7.49

$

In Stock, Qty 6

0

947

Briggs & Stratton 397266

Solenoid-Fuel

$

$

Not available

955

Briggs & Stratton 397882

Plug-Carb (Solenoid Hole)

$3.49

$

Usually ships in 2-12 days

0
