424 (190-424-100) - Cub Cadet 42" Snow Blade Hanging & Lift Bracket Parts Diagram

42" Snow Blade

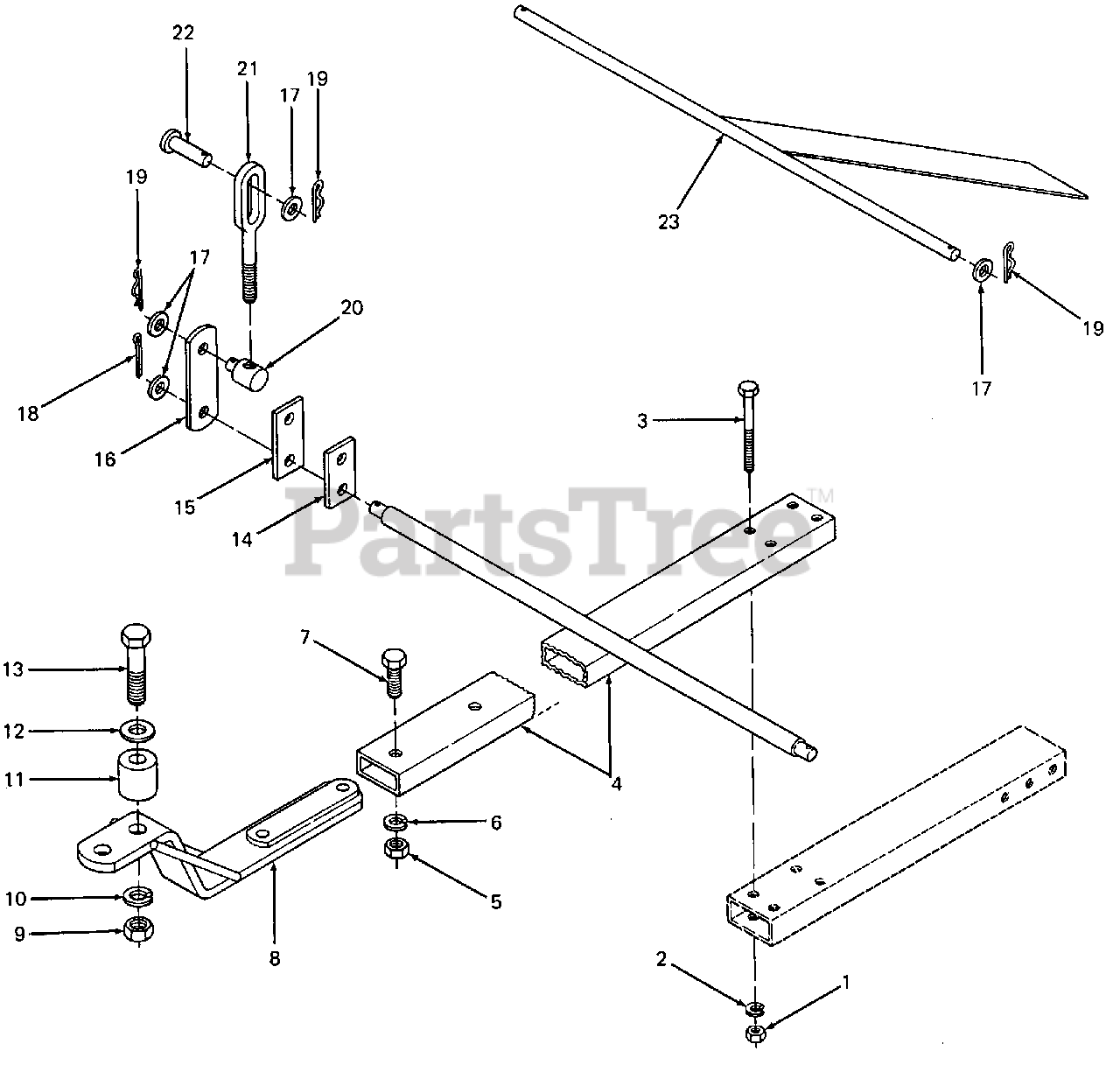

Hanging & Lift Bracket Parts Diagram

  • Title

1

Cub Cadet 712-0241

Nut, Hex, 3/8-24

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0902

Screw, Hex Cap, 3/8-24 X 3.75 Lg GR5

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-1336A

Bracket, Lift

$

$

Not available

5

Cub Cadet 712-0461

Nut, Hex Jam, 1/2-13
(Superseded to 912-3048)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3181

Screw, Hex Cap, 1/2-13 X 1.5 Lg GR5

$6.49

$

In Stock, only 1 left!

0

8

Cub Cadet 703-1334

Bracket, Hanging

$

$

Not available

9

Cub Cadet 712-0221

Nut, Hex Insert Lock, 5/8-18

$

$

Not available

10

Cub Cadet 736-0158

Washer, Lock, 5/8

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 750-3051

Spacer, .65 X 1.5 X 1.5 Lg

$

$

Not available

12

Cub Cadet 736-0237

Washer, Flat, .64 X 1.25 X.100 Thk

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0923

Screw, Hex Cap, 5/8-18 X 3.0 Lg GR5

$9.49

$

In Stock, Qty 13

0

14

Cub Cadet 703-1392

Link, Lift

Note: (1.0 between centers)

$

$

Not available

15

Cub Cadet 703-1335

Link, Lift

Note: (1.38 between centers)

$

$

Not available

16

Cub Cadet 703-1669

Link, Lift

Note: (2.0 between centers)

$22.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0101

Pin, Internal Cotter

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 711-3021

Ferrule, Adjustment, 1/2-20 Trd
(Superseded to 911-3021)

$32.99

$

In Stock, only 1 left!

0

21

Cub Cadet 719-3010

Link, Adjustment
(Superseded to 919-3010)

$

$

Not available

22

Cub Cadet 711-0332

Pin, Lift Bracket
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

23

Cub Cadet 703-1341

Plate, Guide

$

$

Not available
