425 A (190-425-100) - Cub Cadet 17 Cubic Feet Utility Cart 17 CU. FT. Utility Cart / Model 425A Parts Diagram

17 Cubic Feet Utility Cart

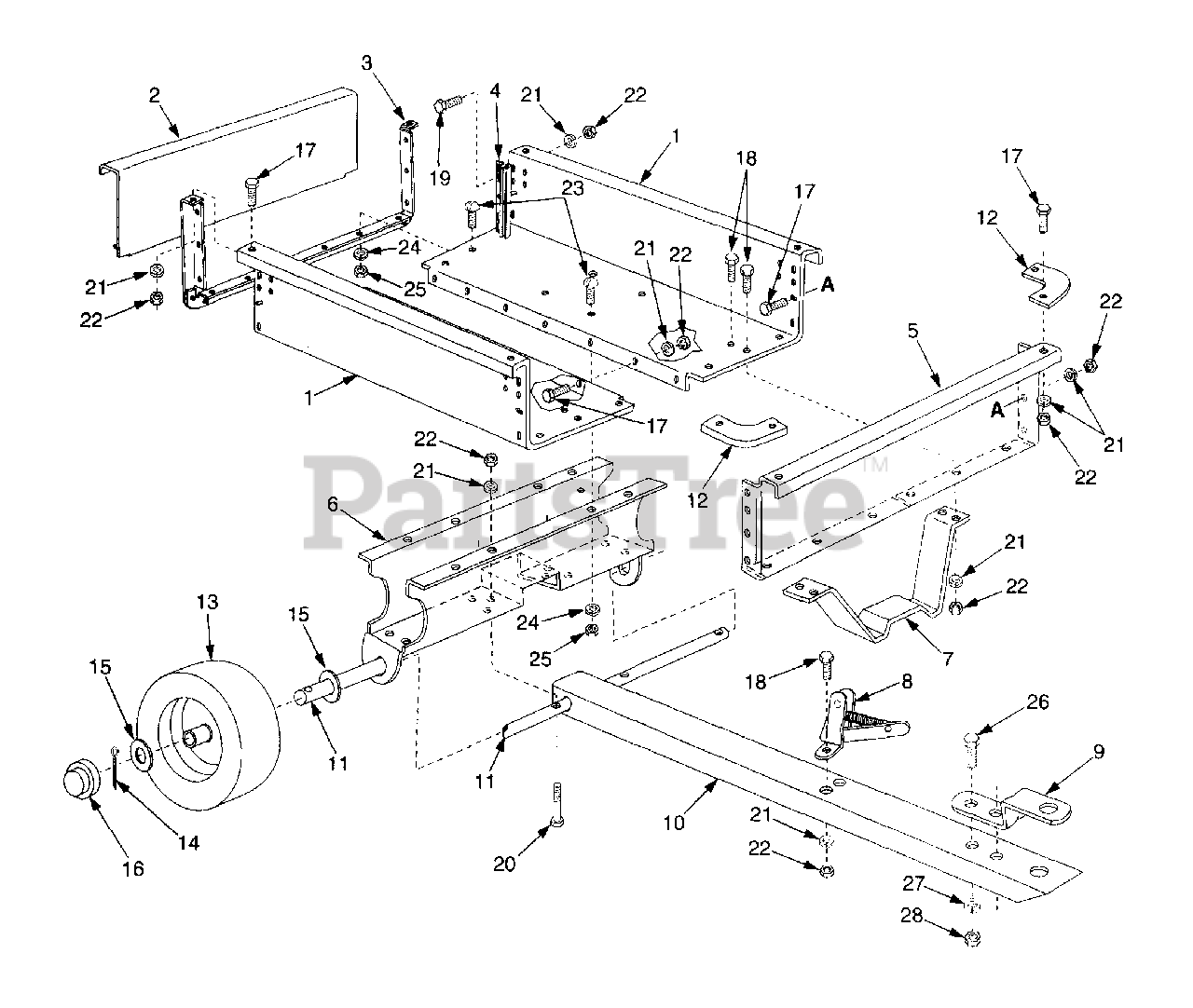

17 CU. FT. Utility Cart / Model 425A Parts Diagram

  • Title

1

Cub Cadet AF-23984

Cart Body

Variations

Cub Cadet AF-23984-0498

BODY-CART - OLD CUB YELLOW (0498)

$

$

Not available

$248.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-23504

Tailgate

Variations

Cub Cadet AF-23504-0498

TAILGATE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23504-0499

TAILGATE - CUB BEIGE (0499)

$

$

Not available

$

$

3

Cub Cadet AF-62457

Tailgate Reinforcement Bracket
(Superseded to AF-62457-0637)

Variations

Cub Cadet AF-62457-0637

ANGLE ASSY-REAR - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet AF-23548

Guide, Tailgate

$

$

Not available

5

Cub Cadet AF-23490

Front Panel

Variations

Cub Cadet AF-23490-0498

FRONT PANEL (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23490-0499

FRONT PANEL (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

$

$

6

Cub Cadet AF-23487

Wheel Support
(Superseded to AF-23487-0637)

Variations

Cub Cadet AF-23487-0637

SUPPORT-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet AF-23297

Latch Stand Bracket
(Superseded to AF-23297-0637)

Variations

Cub Cadet AF-23297-0637

Latch Stan Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet AF-62455

Ass'y., Latch Lock

$

$

Not available

9

Cub Cadet AF-23014

Hitch Bracket
(Superseded to AF-23014-0637)

Variations

Cub Cadet AF-23014-0637

Hitch Bracket - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

10

Cub Cadet AF-23989

Draw Bar Tongue
(Superseded to AF-23989-0637)

Variations

Cub Cadet AF-23989-0637

TONGUE-DRAW BAR - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet AF-23488

Axle, Wheel 1" Dia.

Variations

Cub Cadet AF-23488-0637

USE AF-23488 AXLE-WHEEL 1.0 D - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet AF-23484

Cap, Front Corner

Variations

Cub Cadet AF-23484-0498

CAP-FRONT CORNER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23484-0499

FRONT CORNER CAP (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23484-0650

CAP-FRONT CORNER - RED METALLIC (0650)

$

$

Not available

$

$

13

Cub Cadet AF-43594

Wheel, 16-6.5 x 8.0
(Superseded to AF-41483)

Variations

Cub Cadet AF-43594-0499

Wheel Assembly, 16X6.5X8 - CUB BEIGE (0499)

$

$

Not available

$

$

14

Cub Cadet 714-3001

Cotter Pin, 1/8" Dia. x 1.5"
(Superseded to 914-3001)

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet AF-43601

Washer, Flat 1"

$8.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-0484A

Hub Cap
(Superseded to 931-0484A)

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3013

Hex Bolt, 1/4-20 x 1/2"

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 710-0751

Hex Bolt, 1/4-20 x 5/8"

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3015

Hex Bolt, 1/4-20 x 3/4"

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0136

Hex Bolt, 1/4-20 x 1-3/4"

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 736-0329

Lock Washer, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

22

Cub Cadet 712-0287

Hex Nut, 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet AF-43814

Slt. Truss Hd.Bolt 5/16-18 x 3/4" Lg.

$

$

Not available

24

Cub Cadet 736-0119

Lock Washer, 5/16"
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0267

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0253

Hex Bolt, 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0169

Lock Washer, 3/8"

$3.49

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0798

Hex nut, 3/8-16 Thread

$3.99

$

In Stock, only 2 left!

0
