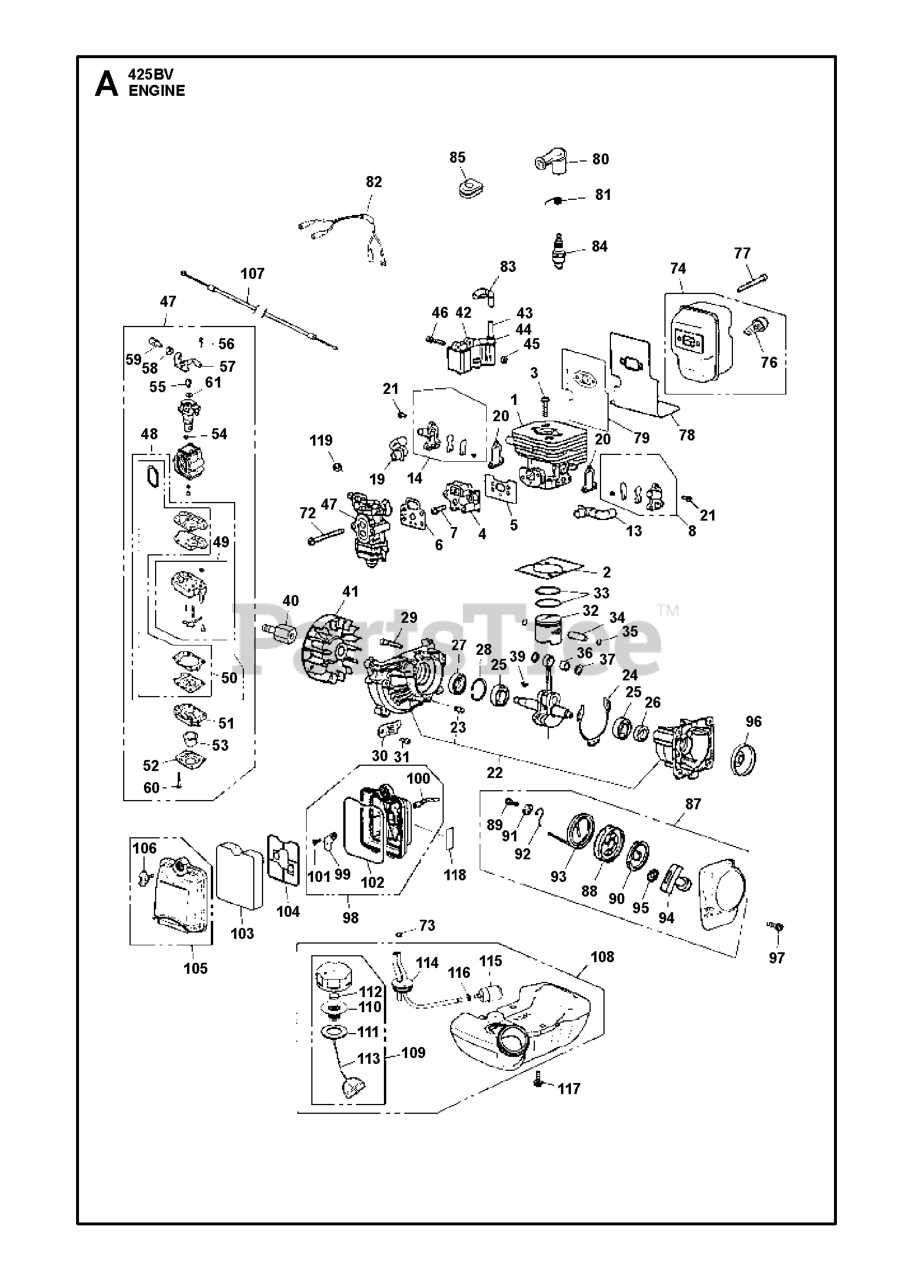

425 BVS - Husqvarna Handheld Blower (2012-05) ENGINE Parts Diagram

Handheld Blower

ENGINE Parts Diagram

  • Title

1

Husqvarna 521611601

CYLINDER

$71.99

$

In Stock, only 2 left!

0

2

Husqvarna 521611701

GASKET, BASE

$4.99

$

In Stock, Qty 18

0

3

Husqvarna 506745201

BOLT

$4.99

$

In Stock, Qty 13

0

4

Husqvarna 521611901

INSULATOR

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 512319201

GASKET.INSU

$3.49

$

In Stock, Qty 19

0

6

Husqvarna 511375801

GASKET

$3.99

$

In Stock, Qty 6

0

7

Husqvarna 504114301

BOLT
(Superseded to 506689001)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 511375901

REEDVALVE(S)-A

$33.99

$

Usually ships in 3-10 days

0

13

Husqvarna 521612701

PIPE AIR (S)

$8.49

$

In Stock, only 4 left!

0

14

Husqvarna 511376001

REEDVALVE(F)-A

$21.99

$

Usually ships in 3-10 days

0

19

Husqvarna 521612801

PIPE AIR (F)

$8.49

$

In Stock, Qty 9

0

20

Husqvarna 521612901

GASKET, VALVE

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 504119201

BOLT

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 515381601

CRANKCASE-C

$125.99

$

Usually ships in 3-10 days

0

23

Husqvarna 505296101

PIN

Note: . 22

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 515381801

GASKET.CASE

$3.49

$

In Stock, only 2 left!

0

25

Husqvarna 523071701

BEARING
(Superseded to 506610301)

$10.99

$

In Stock, only 2 left!

0

26

Husqvarna 504121501

SEAL

$9.49

$

In Stock, Qty 19

0

27

Husqvarna 506612901

SEAL

$3.49

$

In Stock, Qty 6

0

28

Husqvarna 506609901

RING

$3.99

$

In Stock, only 4 left!

0

29

Husqvarna 515388101

BOLT

$3.99

$

In Stock, only 3 left!

0

30

Husqvarna 515381901

$

$

Not available

31

Husqvarna 504119601

BOLT 08
(Superseded to 529268101)

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 511376101

PISTON

$34.99

$

In Stock, only 2 left!

0

33

Husqvarna 506618101

RING

$8.49

$

In Stock, Qty 20+

0

34

Husqvarna 521522601

PIN (RPLS T151341310)

$3.99

$

In Stock, Qty 5

0

35

Husqvarna 505045201

RING

$2.49

$

In Stock, only 2 left!

0

36

Husqvarna 521520701

BEARING (R550041410&114041330)
(Superseded to 505040901)

$7.49

$

In Stock, only 2 left!

0

37

Husqvarna 505041001

WASHER

$2.49

$

Usually ships in 3-10 days

0

38

Husqvarna 521613201

CRANKSHAFT COMP(RPLS481042000)

$113.99

$

Usually ships in 3-10 days

0

39

Husqvarna 506689401

KEY

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 515426801

EXTENSION.

$

$

Not available

41

Husqvarna 515384501

ROTOR

$31.99

$

Usually ships in 3-10 days

0

42

Husqvarna 512321901

COIL-A

$79.99

$

Usually ships in 3-10 days

0

43

Husqvarna 521750701

CORD (BLACK)

$9.99

$

Usually ships in 3-10 days

0

44

Husqvarna 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 504118601

SPACER

$3.99

$

In Stock, only 2 left!

0

46

Husqvarna 506745701

BOLT

$3.99

$

In Stock, Qty 10

0

47

Husqvarna 511376201

CARBURETOR-A

$143.99

$

In Stock, only 1 left!

0

48

Husqvarna 528070101

REBUILD KIT

Note: . 47

$79.99

$

In Stock, Qty 20+

0

49

Husqvarna 502238401

CARBURETOR BODY

Note: . 47 48

$51.99

$

In Stock, only 2 left!

0

50

Husqvarna 515378701

GASKET KIT
(Superseded to 583983301)

Note: . 47 48

$59.99

$

In Stock, only 1 left!

0

51

Husqvarna 506740901

BODY

Note: . 47

$27.99

$

In Stock, only 2 left!

0

52

Husqvarna 506741001

1OVER

Note: . 47

$5.99

$

In Stock, Qty 5

0

53

Husqvarna 505306701

PUMP

Note: . 47

$9.99

$

In Stock, Qty 20+

0

54

Husqvarna 506738601

RING

Note: . 47

$2.49

$

Usually ships in 3-10 days

0

55

Husqvarna 506741201

SWIVEL
(Superseded to 516597701)

Note: . 47

$

$

Not available

56

Husqvarna 505307901

SCREW
(Superseded to 516528701)

Note: . 47

$

$

Not available

57

Husqvarna 506746001

BRACKET
(Superseded to 521359901)

Note: . 47

$5.99

$

Usually ships in 3-10 days

0

58

Husqvarna 506612601

NUT
(Superseded to 510487401)

Note: . 47

$3.99

$

In Stock, Qty 8

0

59

Husqvarna 5067413010

Note: . 47

$

$

Currently unavailable

60

Husqvarna 506741101

SCREW

Note: . 47

$3.99

$

In Stock, Qty 7

0

61

Husqvarna 506746101

WASHER

Note: . 47

$3.49

$

In Stock, only 1 left!

0

72

Husqvarna 515390701

BOLT

$2.49

$

In Stock, Qty 20+

0

73

Husqvarna 506741501

CLIP

$3.49

$

In Stock, Qty 20+

0

74

Husqvarna 528061001

MUFFLER-A

$

$

Not available

76

Husqvarna 506615601

ARRESTER

Note: . 74

$7.49

$

In Stock, only 3 left!

0

77

Husqvarna 512846101

BOLT

$

$

Not available

78

Husqvarna 511368401

GASKET, MUFFLER

$

$

Not available

79

Husqvarna 511368501

PLATE, MUFFLER

$21.99

$

Usually ships in 3-10 days

0

80

Husqvarna 512444001

CAP

$7.49

$

In Stock, Qty 10

0

81

Husqvarna 505298901

SPRING

$3.99

$

In Stock, Qty 12

0

82

Husqvarna 512322101

CORD-C

$

$

Not available

83

Husqvarna 521750901

TUBE

$

$

Not available

84

Husqvarna 521233401

PLUG CMR7H
(Superseded to 528074001)

$5.99

$

In Stock, Qty 20+

0

85

Husqvarna 515415301

GROMMET
(Superseded to 521358801)

$2.49

$

Usually ships in 3-10 days

0

87

Husqvarna 515385401

RECOIL-A

$65.99

$

In Stock, Qty 8

0

88

Husqvarna 504114701

REEL

Note: . 87

$13.99

$

In Stock, Qty 20+

0

89

Husqvarna 515367101

SCREW

Note: . 87

$2.49

$

In Stock, Qty 5

0

90

Husqvarna 504115001

SPRING, SPIRAL

Note: . 87

$14.99

$

In Stock, Qty 20+

0

91

Husqvarna 504114601

COLLAR

Note: . 87

$4.99

$

In Stock, only 1 left!

0

92

Husqvarna 504114801

SWING ARM

Note: . 87

$5.99

$

In Stock, Qty 10

0

93

Husqvarna 504114901

ROPE

Note: . 87

$7.99

$

In Stock, only 1 left!

0

94

Husqvarna 506614701

KNOB

Note: . 87

$7.49

$

In Stock, only 1 left!

0

95

Husqvarna 515385601

PLATE.STOPPER

Note: . 87

$3.49

$

In Stock, only 1 left!

0

96

Husqvarna 504114401

PULLEY

$7.49

$

In Stock, only 4 left!

0

97

Husqvarna 515391301

BOLT

$2.49

$

In Stock, Qty 5

0

98

Husqvarna 512322702

$

$

Currently unavailable

99

Husqvarna 506684301

PLATE.CHOKE

Note: . 98

$3.99

$

In Stock, only 2 left!

0

100

Husqvarna 521760501

LEVER CHOKE

Note: . 98

$4.99

$

In Stock, Qty 9

0

101

Husqvarna 506673801

SCREW

Note: . 98

$3.99

$

In Stock, only 1 left!

0

102

Husqvarna 521751301

PACKING

Note: . 98

$4.99

$

In Stock, only 1 left!

0

103

Husqvarna 504115301

ELEMENT

$7.49

$

In Stock, Qty 20+

0

104

Husqvarna 521607901

SCREEN

$4.99

$

In Stock, only 2 left!

0

105

Husqvarna 523071201

COVER ASSY

$35.99

$

Usually ships in 3-10 days

0

106

Husqvarna 523071301

KNOB

Note: . 105

$8.49

$

Usually ships in 3-10 days

0

107

Husqvarna 515427701

CABLE

$7.49

$

Usually ships in 3-10 days

0

108

Husqvarna 528061501

$

$

Currently unavailable

109

Husqvarna 505309601

CAP A

Note: . 108

$14.99

$

In Stock, Qty 7

0

110

Husqvarna 515369401

HOLDER-A

Note: . 108 109

$6.99

$

Usually ships in 3-10 days

0

111

Husqvarna 506744301

PACKING

Note: . 108 109

$3.49

$

In Stock, Qty 8

0

112

Husqvarna 506746801

FILTER

Note: . 108 109

$3.49

$

In Stock, only 2 left!

0

113

Husqvarna 506745801

STOPPER

Note: . 108 109

$3.99

$

Usually ships in 3-10 days

0

114

Husqvarna 515387201

PIPE-C
(Superseded to 597967207)

Note: . 108

$14.99

$

In Stock, only 4 left!

0

115

Husqvarna 506614601

FILTER
(Superseded to 591375401)

Note: . 108

$10.99

$

In Stock, Qty 20+

0

116

Husqvarna 506707001

CLIP

Note: . 108

$3.99

$

In Stock, Qty 9

0

117

Husqvarna 515391301

BOLT

$2.49

$

In Stock, Qty 5

0

118

Husqvarna 504155101

LABEL, CHOKE

$

$

Not available

119

Husqvarna 513352401

CAP

$3.99

$

In Stock, Qty 5

0
