4250 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) CARBURETOR GROUP Parts Diagram

Walk-Behind Mower

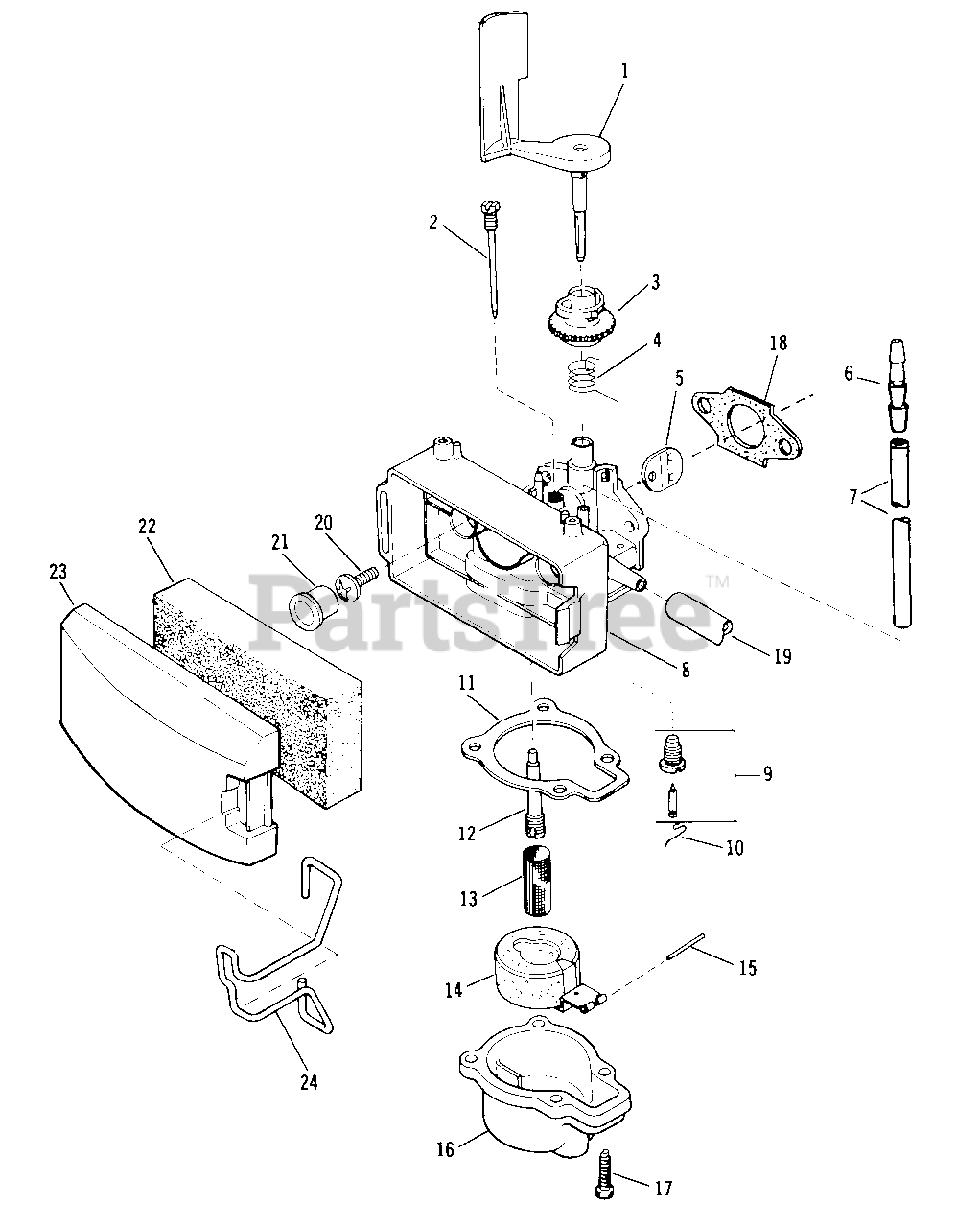

CARBURETOR GROUP Parts Diagram

  • Title

1

Lawn-Boy 611405

Air Vane and Shaft
(Superseded to 104-4430)

$11.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 682567

Needle Adj. Assembly

$

$

Not available

3

Lawn-Boy 610834

Collar

$3.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 610833

Spring

$

$

Not available

5

Lawn-Boy 609632

Disc-Throttle

$4.99

$

Usually ships in 3-6 days

0

6

611419

Connector-Reducer

$

$

Not available

7

Lawn-Boy 611420

Tube-Primer

$10.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 611421

Carburetor Body

$72.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 681741

Float Valve and Seat Assembly
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 602850

Gasket
(Superseded to 98-1362)

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 605140

Nozzle
(Superseded to 612214)

$83.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611071

Filter-Carburetor

$15.99

$

In Stock, only 3 left!

0

14

Lawn-Boy 678113

Float and Arm Assembly

$

$

Not available

15

Lawn-Boy 300096

Pin-Float
(Superseded to 92-6389)

$5.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 610416

Float Chamber
(Superseded to 92-6374)

$

$

Not available

17

Lawn-Boy 608850

Screw-Float Chamber

$1.99

$

In Stock, Qty 5

0

18

Lawn-Boy 609476

Gasket-Carb. to Crankcase Cover

$

$

Not available

19

Lawn-Boy 611582

Fuel Line

$

$

Not available

20

Lawn-Boy 609482

Screw-Carb. Mounting

$2.49

$

In Stock, Qty 8

0

21

Lawn-Boy 611545

Plug
(Superseded to 93-4320)

$

$

Not available

22

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

$4.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 610742

Cover-Air Filter
(Superseded to 93-1231)

$

$

Not available

24

Lawn-Boy 610383

Retainer-Filter Cover

$7.99

$

In Stock, Qty 20+

0
