425002x99B - Briggs & Stratton 42" Lawn Tractor (2004) (AAFES) Mower Housing Parts Diagram

42" Lawn Tractor

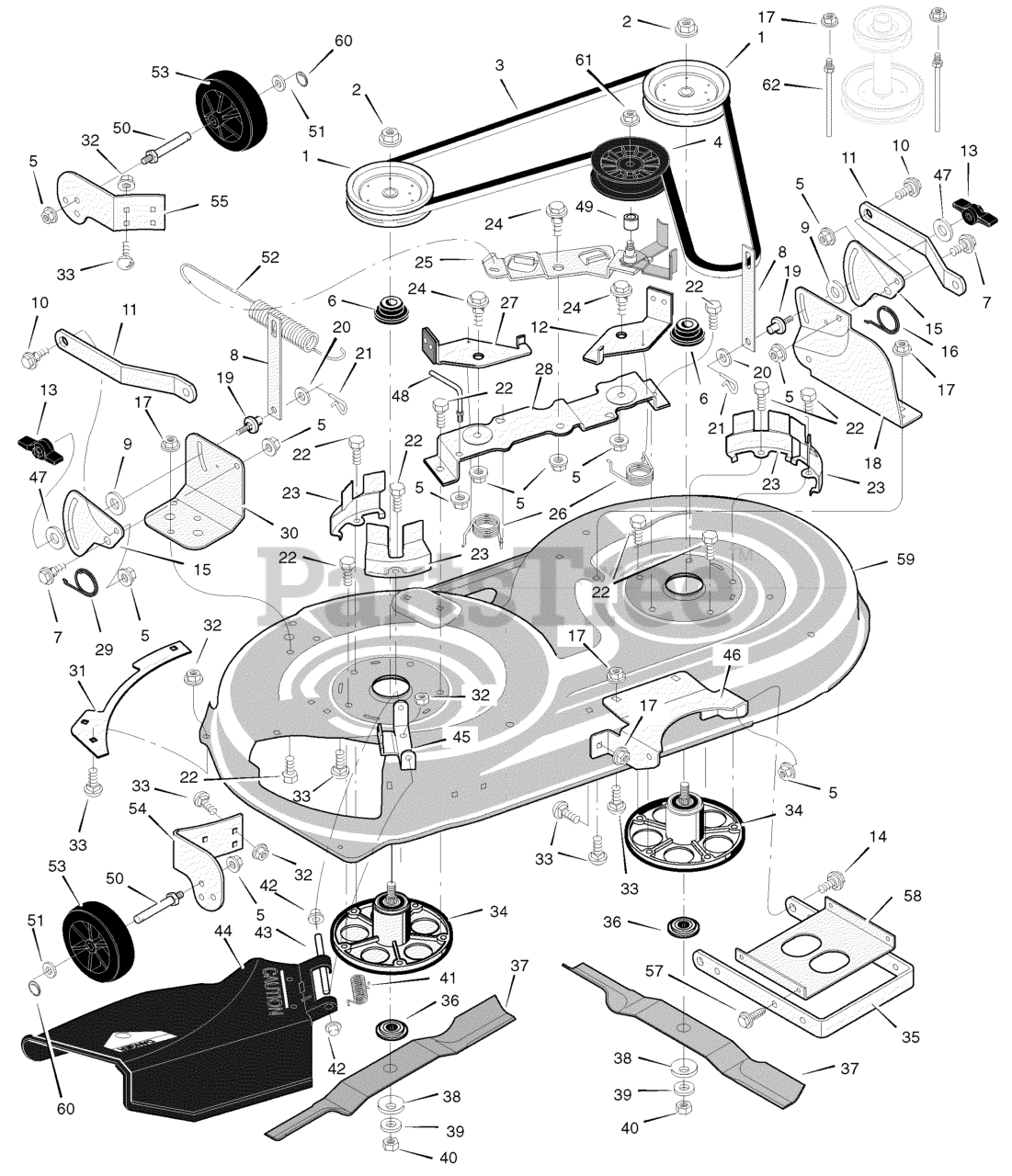

Mower Housing Parts Diagram

  • Title

1

Murray 94199

Pulley, Jackshaft

$31.99

$

In Stock, only 2 left!

0

2

Murray 15X140

Nut, Hex

$9.99

$

In Stock, only 1 left!

0

3

Murray 037X88

Belt, Mower Drive

$33.99

$

In Stock, Qty 7

0

4

Murray 690387

Pulley, Idler

$

$

Not available

5

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 1001197

Spacer, Pulley
(Superseded to 1001197MA)

Note: (Included with Ref. No. 34)

$12.99

$

In Stock, only 2 left!

0

7

Murray 009X51

Bolt, Shoulder
(Superseded to 009X51MA)

$4.99

$

In Stock, Qty 17

0

8

Murray 690212E701

Link, Lift

$37.99

$

Usually ships in 2-12 days

0

9

Murray 94137

Pad, Friction
(Superseded to 690326)

$6.49

$

Usually ships in 2-12 days

0

10

Murray 009X52

Bolt, Shoulder
(Superseded to 009X52MA)

$6.49

$

In Stock, only 2 left!

0

11

Murray 094055E701

Bracket, Suspension

$13.99

$

Usually ships in 2-12 days

0

12

Murray 094049E701

Pad Assembly, Left Brake

$

$

Not available

13

Murray 94068

Knob

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X58

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

15

Murray 094128E701

Plate, Suspension

$15.99

$

Usually ships in 2-12 days

0

16

Murray 166X43

Spring
(Superseded to 166X43MA)

$4.99

$

In Stock, only 3 left!

0

17

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

18

Murray 094192E701

Bracket, Suspension

$

$

Not available

19

Murray 95194

Pin, Hanger

$

$

Not available

20

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, only 2 left!

0

21

Murray 0031X4

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X7

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 094051E701

Cover, Pulley
(Superseded to 7300859BMYP)

$31.99

$

In Stock, Qty 7

0

24

Murray 009X39

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

25

Murray 690408E700

Arm, Idler

$

$

Currently unavailable

26

Murray 166X41

Spring

$4.99

$

Usually ships in 2-12 days

0

27

Murray 094047E701

Pad Assembly, Right Brake

$

$

Not available

28

Murray 094193E701

Bracket, Brake

$58.99

$

Usually ships in 2-12 days

0

29

Murray 166X42

Spring
(Superseded to 166X42MA)

$4.99

$

In Stock, Qty 10

0

30

Murray 094191E701

Bracket, Suspension

$46.99

$

Usually ships in 2-12 days

0

31

Murray 092426E701

Plate
(Superseded to 092426E701MA)

$10.99

$

Usually ships in 2-12 days

0

32

Murray 015X88

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 002X53

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

34

Murray 1001200

Mandrell Housing
(Superseded to 1001200MA)

$82.99

$

In Stock, Qty 13

0

35

Murray 690539E701

Bracket, Suspension

$54.99

$

Usually ships in 2-12 days

0

36

Murray 690411

Adapter, Blade

$

$

Not available

37

Murray 095100E701

Blade

$19.99

$

In Stock, Qty 10

0

38

Murray 17X166

Washer
(Superseded to 17X166MA)

$13.99

$

In Stock, only 3 left!

0

39

Murray 17X165

Washer
(Superseded to 17X165MA)

$16.99

$

In Stock, Qty 5

0

40

Murray 15X100

Nut
(Superseded to 15X100MA)

$3.99

$

In Stock, Qty 5

0

41

Murray 0166X4

Spring
(Superseded to 0166X4MA)

$6.49

$

In Stock, only 1 left!

0

42

Murray 028X23

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

44

Murray 094707SE

Deflector Assembly

$

$

Currently unavailable

45

Murray 094956E701

Bracket, Deflector Hinge
(Superseded to 094956E701MA)

$22.99

$

In Stock, only 2 left!

0

46

Murray 094190E701

Bracket, Front Hanger

$35.99

$

Usually ships in 2-12 days

0

47

Murray 017X45

Washer
(Superseded to 017X45MA)

$

$

Not available

48

Murray 94781

Guide, Belt

$60.99

$

Usually ships in 2-12 days

0

49

Murray 690369

Spacer

$5.99

$

Usually ships in 2-12 days

0

50

Murray 94025

Bolt, Axle

$2.99

$

Usually ships in 2-12 days

0

51

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, only 2 left!

0

52

Murray 165X119

Spring, Extension

$13.99

$

In Stock, only 3 left!

0

53

Murray 92683

Wheel, Gage
(Superseded to 092683MA)

$15.99

$

In Stock, Qty 9

0

54

Murray 1001260E701

Bracket, Right Wheel
(Superseded to 1001260E701MA)

$28.99

$

Usually ships in 2-12 days

0

55

Murray 092423E701

Bracket, Left Wheel
(Superseded to 092423E701MA)

$21.99

$

Usually ships in 2-12 days

0

56

Murray 009X52

Bolt, Shoulder
(Superseded to 009X52MA)

$6.49

$

In Stock, only 2 left!

0

57

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

58

Murray 094604E701

Stiffener

$68.99

$

Usually ships in 2-12 days

0

59

Murray 094814E701

Housing, Blade *

$

$

Not available

60

Murray 031X11

Ring, Locking
(Superseded to 031X11MA)

$4.49

$

In Stock, only 2 left!

0

61

Murray 015X98

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

62

Murray 94066

Guide, Belt

$14.99

$

Usually ships in 2-12 days

0
