425018x00A - Murray 42" Lawn Tractor (2007) Engine Mount Parts Diagram

42" Lawn Tractor

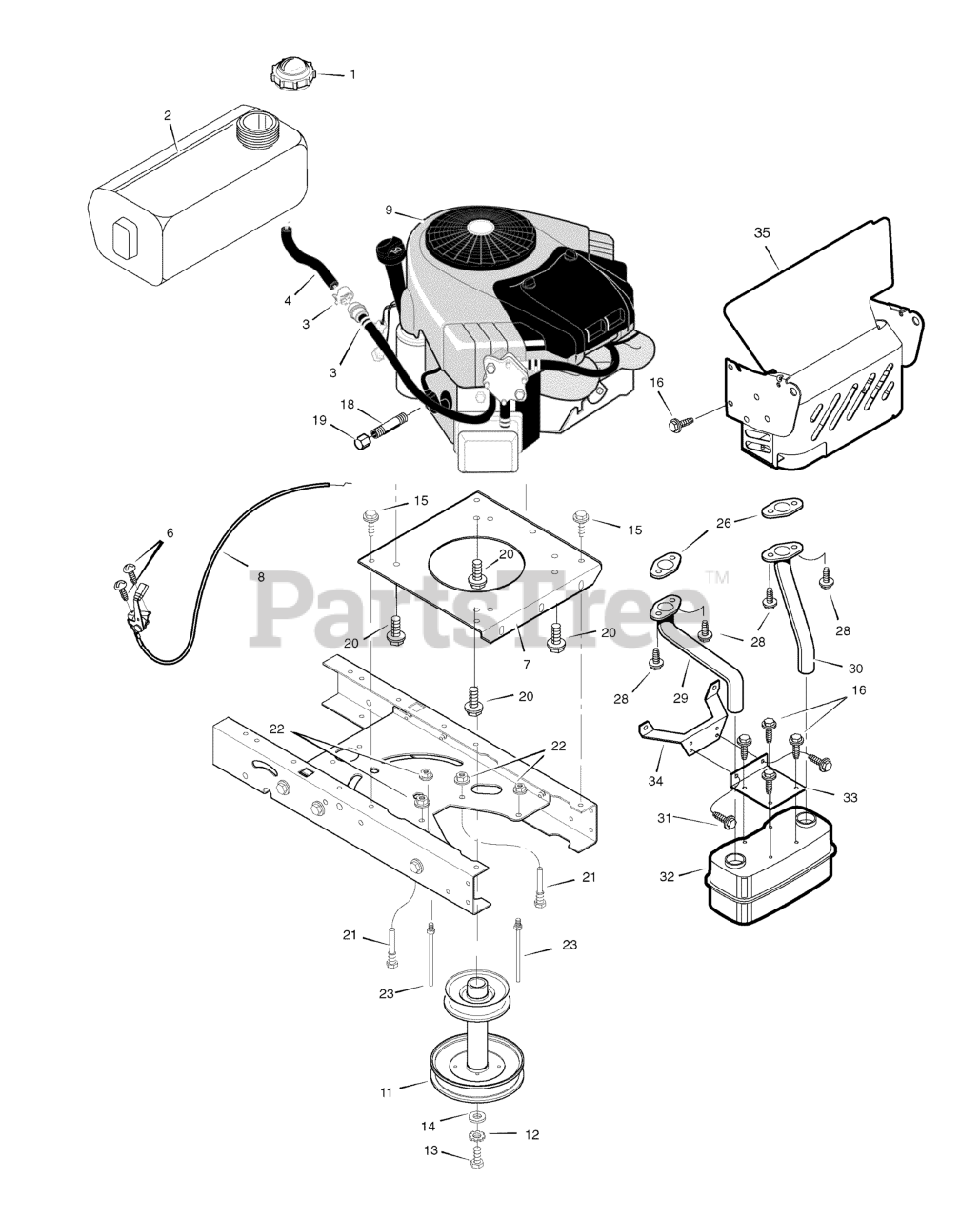

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

FUEL CAP

Note: (Included with Ref. No. 2)

$10.99

$

In Stock, Qty 12

0

2

Murray 1001947MA

FUEL TANK

$87.99

$

Usually ships in 2-12 days

0

3

Murray 095197MA

HOSE CLAMP
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

$22.99

$

In Stock, only 1 left!

0

6

Murray 26X201MA

SCREW

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E701MA

PLATE, Engine

$114.99

$

Usually ships in 2-12 days

0

8

Murray 092371MA

THROTTLE CONTROL

$37.99

$

Usually ships in 2-12 days

0

9

Engine, Briggs & Stratton *

Note: (Model: 31D707 Type: 0193 Trim: E1)

$

$

Not available

11

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 6

0

12

Murray 019X35MA

LOCKWASHER

$4.99

$

In Stock, only 2 left!

0

13

Murray 01X140MA

BOLT, Hex

$5.49

$

In Stock, only 1 left!

0

14

Murray 17X170MA

WASHER

$

$

Not available

15

Murray 26X249MA

SCREW

$

$

Not available

16

Murray 26X229MA

SCREW

$4.49

$

In Stock, only 1 left!

0

18

Murray 092279MA

PIPE, Oil Drain

$8.49

$

Usually ships in 2-12 days

0

19

Murray 021651MA

CAP, Oil Drain
(Superseded to 021651ZMA)

$7.49

$

Usually ships in 2-12 days

0

20

Murray 0025X7MA

BOLT, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

21

Murray 094384MA

GUIDE, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79MA

NUT, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 094066MA

GUIDE, Belt

$14.99

$

Usually ships in 2-12 days

0

26

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

28

Murray 06X103MA

SCREW, Adapter

$6.49

$

In Stock, only 2 left!

0

29

Murray 690541MA

TUBE, Right Exhaust

$54.99

$

Usually ships in 2-12 days

0

30

Murray 690542MA

TUBE, Left Exhaust

$54.99

$

Usually ships in 2-12 days

0

31

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

32

Murray 094654MA

MUFFLER

$

$

Not available

33

Murray 690538E701MA

BRACKET, Muffler

$11.99

$

Usually ships in 2-12 days

0

34

Murray 690537E701MA

BRACKET, Muffler Mount

$76.99

$

Usually ships in 2-12 days

0

35

Murray 1001627E701MA

SHIELD, Heat

$170.99

$

Usually ships in 2-12 days

0

36

Murray 015X68MA

NUT
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

37

Murray 690401MA

CHOKE

$32.99

$

In Stock, only 1 left!

0

38

Murray 093077MA

SPACER

$15.99

$

In Stock, only 1 left!

0
