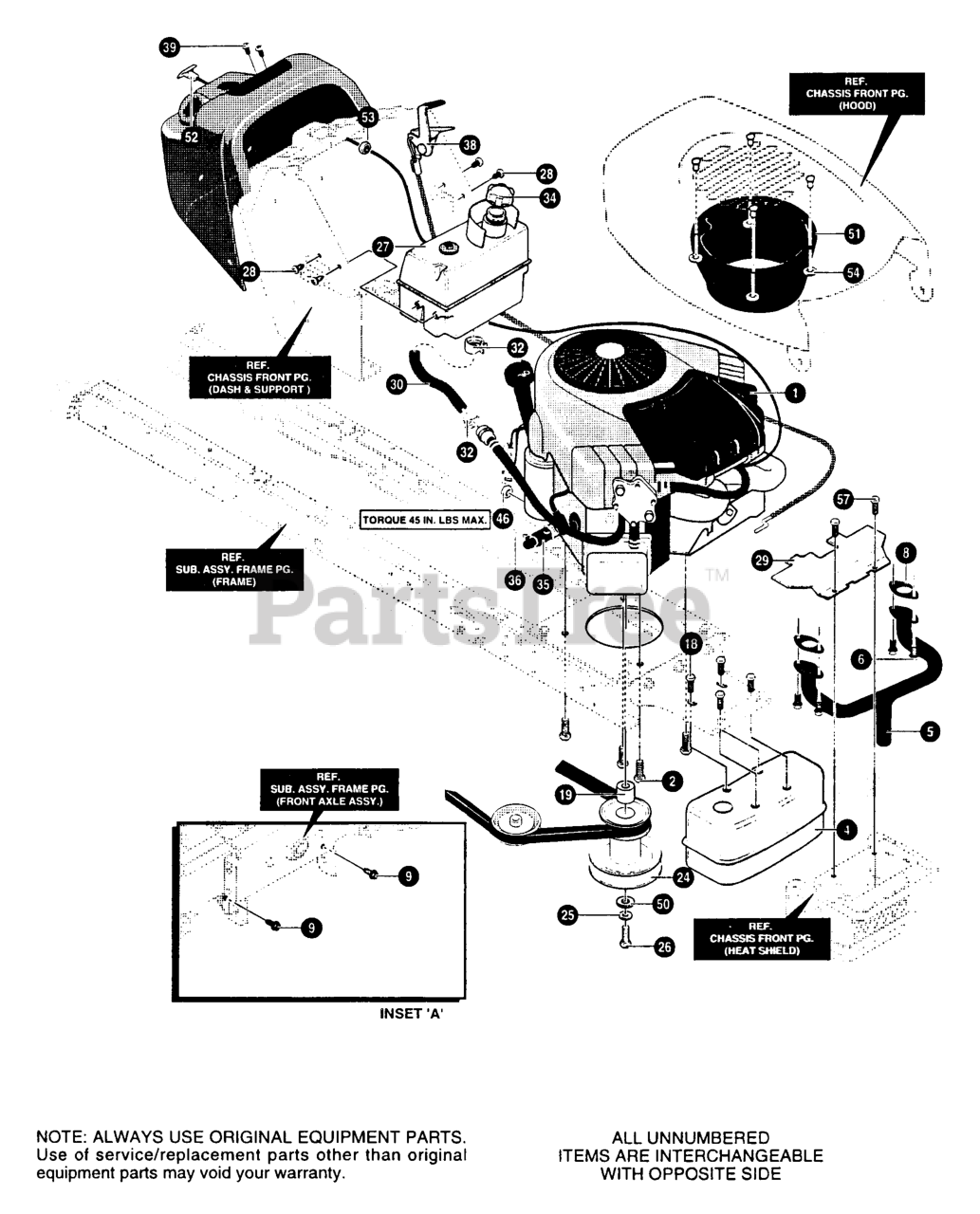

  • Title

1

ENGINE 17HP INTEK V-TWIN

Note: (See Engine Manual)

$

$

Not available

2

Murray 710199

SCREW, 3/8-16 x 1.25 WAHHTAP

$66.99

$

Usually ships in 2-12 days

0

4

Murray 094655MA

MUFFLER, TWIN-CYLINDER

$86.99

$

Usually ships in 2-12 days

0

5

Murray 95204

TUBE EXHAUST

$110.99

$

Usually ships in 2-12 days

0

6

Murray 711852

SCREW (B/S #94755)

$5.99

$

Usually ships in 2-12 days

0

8

Murray 711851MA

EXHAUST GASKET B/S-273485

$4.49

$

Usually ships in 2-12 days

0

9

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

18

Murray 711642MA

SCREW, 1/4-20X.63 HHWATAP
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

19

Murray 093077MA

SPACER, SLEEVE

$15.99

$

In Stock, only 1 left!

0

24

Murray 690448

PULLEY, STACK ASSY

$35.99

$

Usually ships in 2-12 days

0

25

Murray 120383

WASHER, REGSPTLK

$

$

Not available

26

Murray 710248

SCREW 7/16-20X HHC

$3.99

$

Usually ships in 2-12 days

0

27

Murray 094086

TANK, FUEL W/SENSOR 2.8 GAL

$170.99

$

In Stock, only 4 left!

0

28

Murray 711681

SCREW,15TPIX PANHTAP

$1.99

$

Usually ships in 2-12 days

0

29

Murray 95250-821

HEAT SHIELD

$11.99

$

Usually ships in 2-12 days

0

30

Murray 41007

TUBING,.25X.50
(Superseded to 7041007YP)

$31.99

$

Usually ships in 2-12 days

0

32

Murray 47345

CLAMP, HOSE SCREW TYPE
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

34

Murray 092317MA

CAP, FUEL

$10.99

$

In Stock, Qty 12

0

35

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN VALVE ASSY

$

$

Not available

38

Murray 95261

THROTTLE CONTROL

$18.99

$

Usually ships in 2-12 days

0

39

Murray 711686

SCREW, #8-16X.50 TRCRTAPAB

$1.99

$

Usually ships in 2-12 days

0

46

Murray 711601

NUT, 1/4-20 REGHXJAM

$1.99

$

Usually ships in 2-12 days

0

50

Murray 710247

FLATWASHER.480X1.00X.25

$8.49

$

Usually ships in 2-12 days

0

51

Murray 095325

PLENUM

$

$

Currently unavailable

52

Murray 690353MA

CHOKE CONTROL

$34.99

$

Usually ships in 2-12 days

0

53

Murray 711906

NUT, 3/8-16 HWDFL WHIZ-LOCK

$

$

Not available

54

Murray 711677

PUSHNUT

$8.49

$

Usually ships in 2-12 days

0

57

Murray 711660MA

SCREW, 1/4-20X.75WAHHTAP
(Superseded to 44811MA)

$5.99

$

Usually ships in 2-12 days

0
