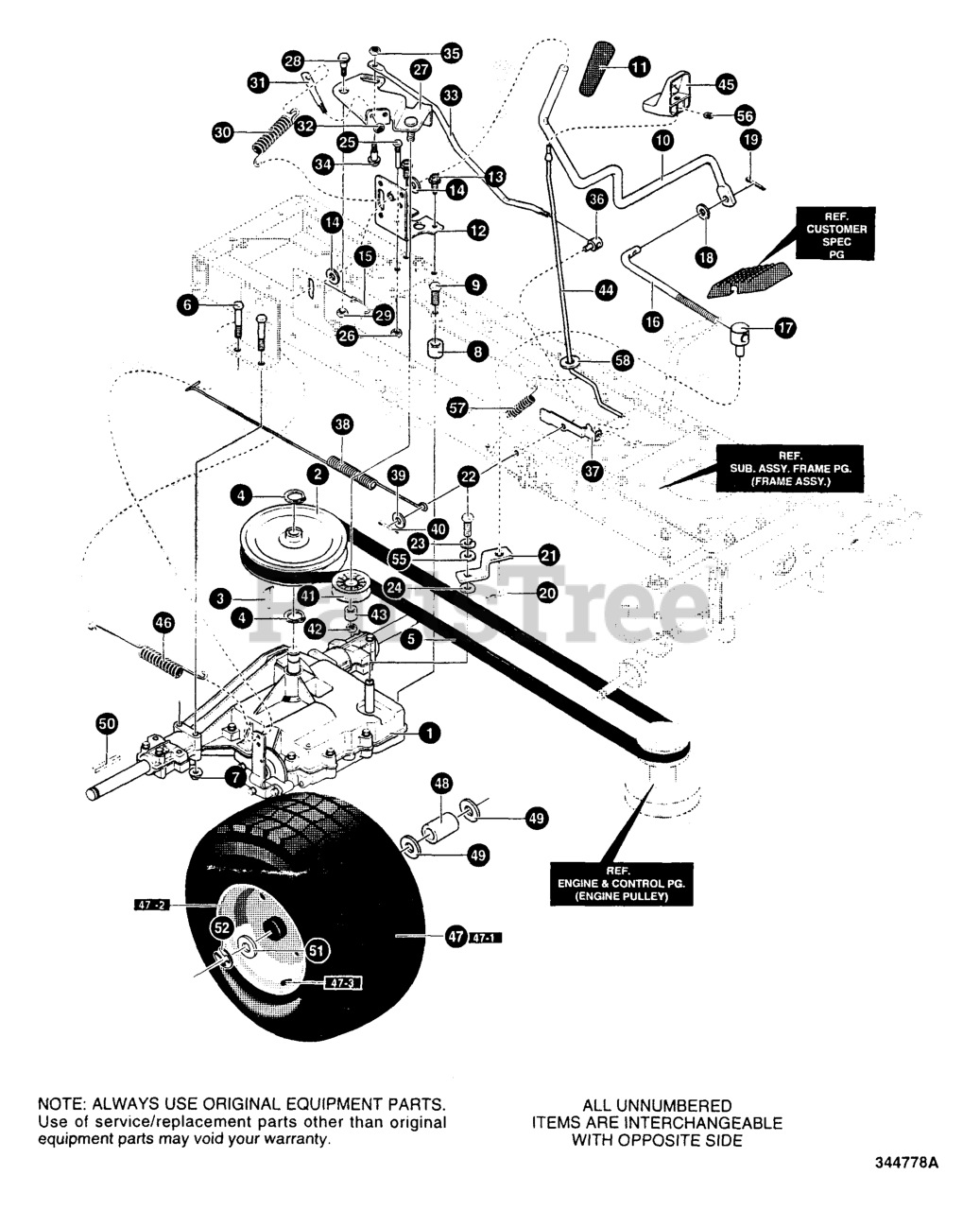

42502x8C - Scotts 42" Lawn Tractor (2000) Motion Drive Assembly Parts Diagram

42" Lawn Tractor

Motion Drive Assembly Parts Diagram

  • Title

1

Transaxle, Peerless **

Note: (MST206-502)

$

$

Not available

2

Murray 095094MA

PULLEY, 8.81 DIA.

$55.99

$

In Stock, only 1 left!

0

3

Murray 020697MA

KEY WDRF #9 .75DIAX.18X.310

$3.99

$

In Stock, only 1 left!

0

4

Murray 710340

RING, RETEX.58X.04 TRU (11X7)

$7.49

$

Usually ships in 2-12 days

0

5

Murray 710341

BELT, V (37X87)

$

$

Currently unavailable

6

Murray 711669

SCREW, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

7

Murray 711634MA

NUT, 5/16-18 WDFLLK

$3.99

$

Usually ships in 2-12 days

0

8

Murray 094132MA

SPACER,TRANSAXLE

$16.99

$

In Stock, only 1 left!

0

9

Murray 711605

SCREW, 5/16-18 X 2.00 HHTFT

$30.99

$

Usually ships in 2-12 days

0

10

Murray 95300

LEVER, SHIFT EXTENDED

$19.99

$

Usually ships in 2-12 days

0

11

Murray 094497

GRIP, LIFT 1/2" ID
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

12

Murray 94034-821

BRACKET, SHIFT PIVOT

$

$

Currently unavailable

13

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

14

Murray 711615MA

WASHER, FLAT .518 x .87 x 16

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711676

PIN, HAIR

$

$

Currently unavailable

16

Murray 95289

LINK, SHIFT

$

$

Not available

17

Murray 711591

NUT, ADJ 3/8-16 TAP

$335.99

$

Usually ships in 2-12 days

0

18

Murray 711623

WASHER, FLAT .406 x .81 x 16 GA

$1.99

$

Usually ships in 2-12 days

0

19

Murray 071081

PIN, COTTER .094DIAX.75

$3.49

$

Usually ships in 2-12 days

0

20

Murray 711682MA

PIN, HAIR.38X DIA.X1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

21

Murray 95286

YOKE-SHIFT

$3.99

$

Usually ships in 2-12 days

0

22

Murray 710345

SCREW, 1/4-28X.750HHC

$10.99

$

Usually ships in 2-12 days

0

23

Murray 710249

WASHER (18X32)

$

$

Currently unavailable

24

Murray 710346

WASHER .388X.393SQX1.00X.065

$1.49

$

Usually ships in 2-12 days

0

25

Murray 711745

SCREW GUIDE 5/16-18

$

$

Currently unavailable

26

Murray 710026

NUT 5/16-18 HEXHDFLLK WHIZ

$

$

Not available

27

Murray 690173ZMA

ARM, Idler

$28.99

$

Usually ships in 2-12 days

0

28

Murray 711613MA

BOLT, .50X.75 HHSH 3/8-16

$1.99

$

Usually ships in 2-12 days

0

29

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

30

Murray 710334

SPRING, EXTENSION 5.16LG

$87.99

$

In Stock, only 1 left!

0

31

Murray 95288

STUD-SPRING MTG

$1.99

$

Usually ships in 2-12 days

0

32

Murray 710026

NUT, 5/16-18 HEXHDFLLK WHIZ

$

$

Not available

33

Murray 95287

ROD. CLUTCH SWITCH

$

$

Not available

34

Murray 711646

BOLT,.50X.75 HHSH 3/8-16

$1.49

$

Usually ships in 2-12 days

0

35

Murray 711643

NUT, 1/4-20 WDFLLK

$1.49

$

Usually ships in 2-12 days

0

36

Murray 711596

NUT, ADJUSTING

$

$

Currently unavailable

37

Murray 690048

LATCH, PARK BRAKE

$13.99

$

Usually ships in 2-12 days

0

38

Murray 710333

SPRING, EXTENSION

$67.99

$

Usually ships in 2-12 days

0

39

Murray 711623

WASHER, FLAT .406X.81 X16GA

$1.99

$

Usually ships in 2-12 days

0

40

Murray 071081

PIN, COTTER .094DIAX.75

$3.49

$

Usually ships in 2-12 days

0

41

Murray 690409MA

PULLEY, IDLER 2.75 DIA

$19.99

$

In Stock, only 3 left!

0

42

Murray 711920MA

NUT, 3/8-16 HWDFLLK MACK

$4.49

$

Usually ships in 2-12 days

0

43

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, only 4 left!

0

44

Murray 095108

ROD, PARKING BRAKE

$

$

Currently unavailable

45

Murray 095315MA

KNOB, PARKING BRAKE

$9.49

$

Usually ships in 2-12 days

0

46

Murray 710353

SPRING, TENSION 3.984X.530

$8.99

$

Usually ships in 2-12 days

0

47

Murray 692300

TIRE & RIM 20X10-8
(Superseded to 407934MA)

$219.99

$

Usually ships in 2-12 days

0

47-1

Murray 338527

TIRE 20X10-8

$

$

Currently unavailable

47-2

Murray 338524

RIM, CARL

$

$

Currently unavailable

47-3

Murray 338512

VALVE STEM

$

$

Not available

48

Murray 95274MA

SPACER, .87X1.78 87X105

$46.99

$

Usually ships in 2-12 days

0

49

Murray 711648MA

WASHER, FLAT .760 x 1.25 x .065

$1.99

$

Usually ships in 2-12 days

0

50

Murray 021553MA

KEY, SQUARE.187QX2.0LG

$4.99

$

In Stock, Qty 6

0

51

Murray 711758

WASHER, FLAT .765 x 1.81 x .059

$26.99

$

In Stock, only 1 left!

0

52

Murray 0011X3MA

E-RING.574IDX.050/.750SH 11X3

$5.49

$

In Stock, Qty 14

0

53

Murray 094481

HUB CAP 8" W/O HOLE

$24.99

$

Usually ships in 2-12 days

0

54

Murray 306669

CLIP, HUBCAP TINNERMAN

$

$

Not available

55

Murray 710657

FLATWASHER.256X.75X.130Z

$65.99

$

Usually ships in 2-12 days

0

56

Murray 711691MA

PUSHNUT, .240DIAX STUD

$3.99

$

Usually ships in 2-12 days

0

57

Murray 711560

SPRING, TENSION .375X1.50X.

$

$

Currently unavailable

58

Murray 071067MA

WASHER, FLAT .286X.63X.065

$82.99

$

In Stock, only 1 left!

0
