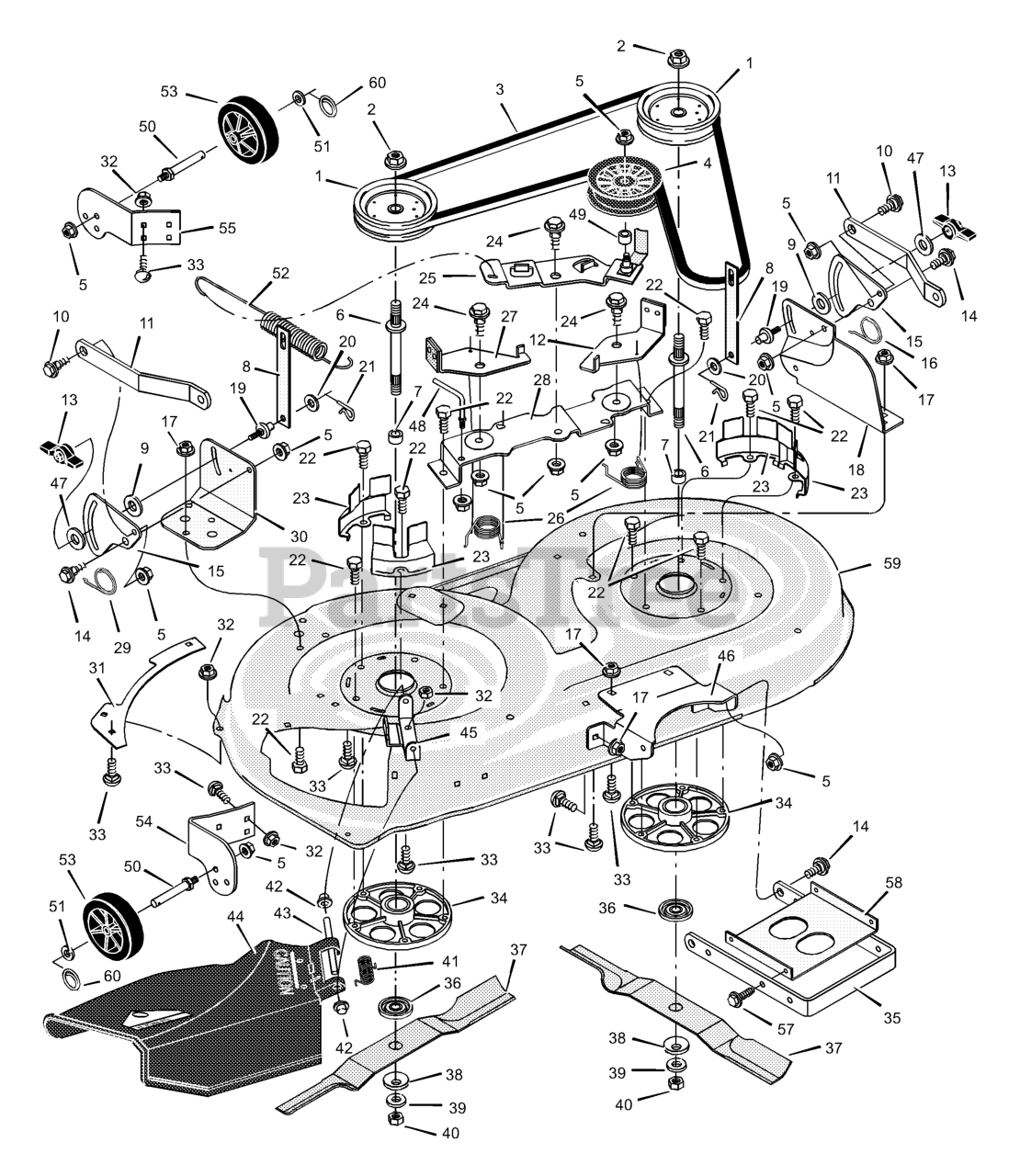

42515x92B - Briggs & Stratton 42" Lawn Tractor (2002) Mower Housing Parts Diagram

42" Lawn Tractor

Mower Housing Parts Diagram

  • Title

1

Murray 494199MA

Pulley, Jackshaft

$29.99

$

Usually ships in 2-12 days

0

2

Murray 15X121

NUT, 9/16- 18 UNF- 2B

$9.99

$

Usually ships in 2-12 days

0

3

Murray 037X88MA

BELT, V Mower Drive, 42" (HA Sect.; 89.19 E.L.)

$33.99

$

In Stock, Qty 6

0

4

Murray 690387MA

PULLEY, Idler, 4 in

$

$

Not available

5

Murray 015X84MA

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 094129

JACKSHAFT 7.12LG

$21.99

$

In Stock, only 1 left!

0

7

Murray 094130MA

SPACER,.625 X .875 X 1.858

$5.99

$

In Stock, only 3 left!

0

8

Murray 690212E700

Link, Lift

$

$

Currently unavailable

9

Murray 094137MA

FRICTION PAD

$6.99

$

In Stock, Qty 10

0

10

Murray 009X52MA

BOLT, Shoulder, 3/8-16 x 1

$6.49

$

In Stock, only 2 left!

0

11

Murray 094055E701MA

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

12

Murray 094049E701MA

Pad Assembly, Left Brake

$

$

Not available

13

Murray 094068MA

KNOB (5/16-18 nut enclosed)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

BOLT, Shoulder, 3/8-16

$4.99

$

In Stock, Qty 16

0

15

Murray 094128E700MA

Plate, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

16

Murray 166X43MA

SPRING, Left Torsion

$4.99

$

In Stock, only 3 left!

0

17

Murray 015X79MA

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 094192E700

Bracket, Suspension -LH

$

$

Currently unavailable

19

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

20

Murray 17X103MA

WASHER, Flat, 1/2

$4.99

$

In Stock, Qty 7

0

21

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X7MA

SCREW, Self Tap, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 094051E701MA

SEGMENT - BELT GUIDE
(Superseded to 7300859BMYP)

$31.99

$

In Stock, Qty 7

0

24

Murray 009X39MA

BOLT, Shoulder, 3/8-16 x 1/2

$6.49

$

In Stock, Qty 9

0

25

Murray 690408E701MA

Arm, Idler
(Superseded to 7400245BMYP)

$213.99

$

In Stock, only 1 left!

0

26

Murray 166X41MA

SPRING, Torsion, Brake

$4.99

$

Usually ships in 2-12 days

0

27

Murray 094047E701MA

Pad Assembly, Right Brake

$

$

Not available

28

Murray 094193E701MA

BRACKET - BRAKE MTG 42"

$58.99

$

Usually ships in 2-12 days

0

29

Murray 166X42MA

SPRING, Right Torsion

$4.99

$

In Stock, Qty 10

0

30

Murray 094191E700

Bracket, Suspension -RH

$46.99

$

Usually ships in 2-12 days

0

31

Murray 092426E701MA

PLATE, Rear

$10.99

$

Usually ships in 2-12 days

0

32

Murray 015X88MA

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 002X53MA

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

34

Murray 492574MA

Housing, Jackshaft

$51.99

$

In Stock, Qty 14

0

35

Murray 690539E701MA

PLATE, Rear

$54.99

$

Usually ships in 2-12 days

0

36

Murray 491926MA

Bracket, Suspension

$16.99

$

In Stock, Qty 20+

0

37

Murray 095100E701MA

BLADE, 42 (3N1)

$19.99

$

In Stock, Qty 8

0

38

Murray 17X166MA

WASHER, Belleville

$13.99

$

In Stock, only 3 left!

0

39

Murray 17X165MA

WASHER, Hardened

$16.99

$

In Stock, Qty 5

0

40

Murray 15X100MA

NUT, Blade, 9/16-18

$3.99

$

In Stock, only 4 left!

0

41

Murray 0166X4MA

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

42

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 10

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

Usually ships in 2-12 days

0

44

Murray 094707MA

DEFLECTOR & SUPPORT ASSEMBLY, Chute

$108.99

$

Usually ships in 2-12 days

0

45

Murray 094956E701MA

BRACKET, Hinge

$22.99

$

In Stock, only 1 left!

0

46

Murray 094686E700

Bracket, Front Hanger

$

$

Currently unavailable

47

Murray 017X45MA

WASHER, Flat, 1

$

$

Not available

48

Murray 094781MA

BELT GUIDE (5/16-18)

$60.99

$

Usually ships in 2-12 days

0

49

Murray 690369MA

SPACER, 1/2 in To 17 mm

$5.99

$

In Stock, only 3 left!

0

50

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 3 left!

0

51

Murray 017X91MA

WASHER, Flat, .81 x .550 x 16GA

$5.49

$

In Stock, only 1 left!

0

52

Murray 165X119MA

SPRING EXTENSION, 9.43L X 0.62D

$13.99

$

In Stock, only 2 left!

0

53

Murray 092683MA

WHEEL, Gauge

$15.99

$

In Stock, Qty 9

0

54

Murray 1001260E701MA

BRKT RH GAGE WHEEL 42"

$28.99

$

Usually ships in 2-12 days

0

55

Murray 092423E700

Bracket, Left Wheel

$

$

Currently unavailable

57

Murray 26X249MA

CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

58

Murray 094604E700

Brace, Hanger

$

$

Currently unavailable

59

Murray 094814E701MA

Housing, Blade, Complete (NO LONGER AVAILABLE)

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56)

$

$

Not available

59

Murray 094188E701MA

Housing, Blade (Housing Only)

$

$

Not available

60

Murray 031X11MA

HAIR PIN

$4.49

$

In Stock, only 2 left!

0
