42516x92B - Briggs & Stratton 42" Lawn Tractor (2001) Engine Mount Parts Diagram

42" Lawn Tractor

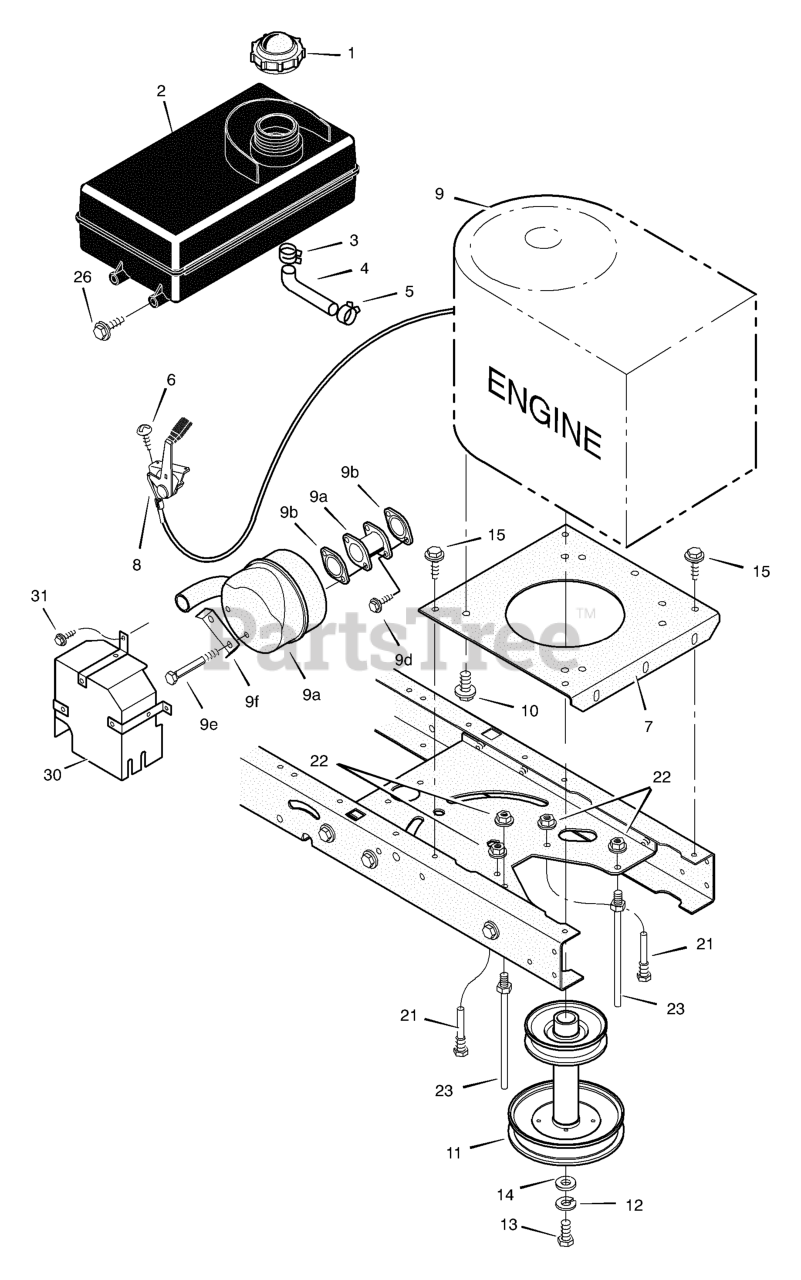

Engine Mount Parts Diagram

  • Title

1

Murray 92317

Fuel Cap
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

2

Murray 94073

Fuel Tank
(Superseded to 691002)

$8.49

$

In Stock, only 1 left!

0

3

Murray 95197

Hose Clamp

$

$

Not available

4

Murray 23717

Fuel Line

$7.99

$

In Stock, Qty 20+

0

5

Murray 95197

Hose Clamp

$

$

Not available

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 94006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 91989

Throttle Control

$9.49

$

Usually ships in 2-12 days

0

9

Engine

$

$

Not available

9a

Murray 690436MA

Muffler

$90.99

$

Usually ships in 2-12 days

0

9b

Murray 91309

Gasket, Muffler
(Superseded to 7091309YP)

$43.99

$

Usually ships in 2-12 days

0

9c

Murray 95207

Adapter, Muffler

$43.99

$

In Stock, Qty 7

0

9d

Murray 06X103MA

Screw, Adapter

$6.49

$

In Stock, only 2 left!

0

9e

Murray 009X59MA

Bolt, Muffler

$6.99

$

In Stock, Qty 10

0

9f

Murray 92378

Lock, Screw

$5.49

$

In Stock, Qty 10

0

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 6

0

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, only 2 left!

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, only 1 left!

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 26X249MA

Screw

$

$

Not available

21

Murray 93349

Guide, Belt

$

$

Not available

22

Murray 015X79 Z

Nut, Flange

$

$

Currently unavailable

23

Murray 94781

Guide, Belt

$60.99

$

Usually ships in 2-12 days

0

26

Murray 26X253MA

Screw

$4.49

$

Usually ships in 2-12 days

0

30

Murray 92550

Shield, Heat
(Superseded to 92550GS)

$67.99

$

Usually ships in 2-12 days

0

31

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0
